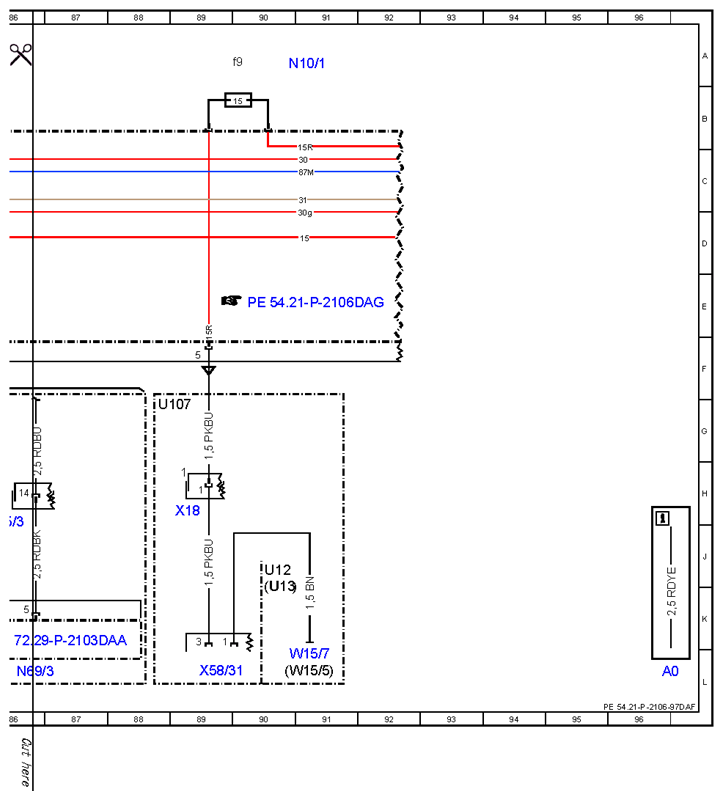

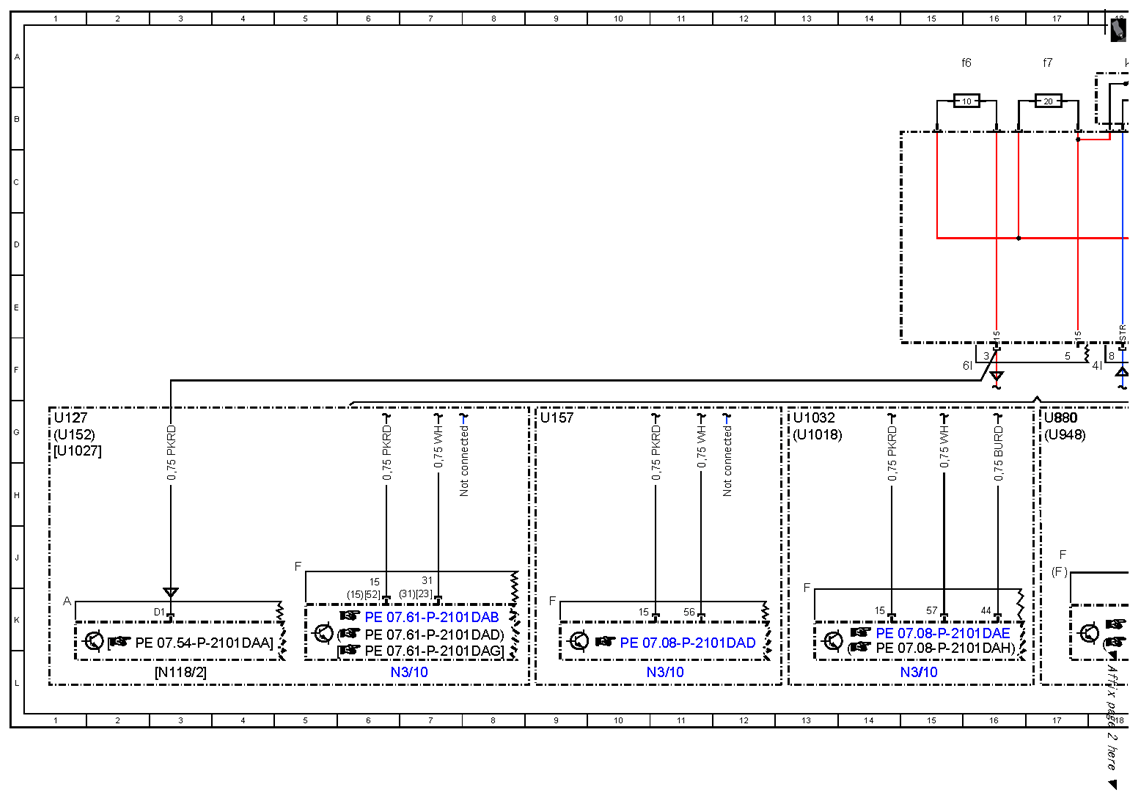

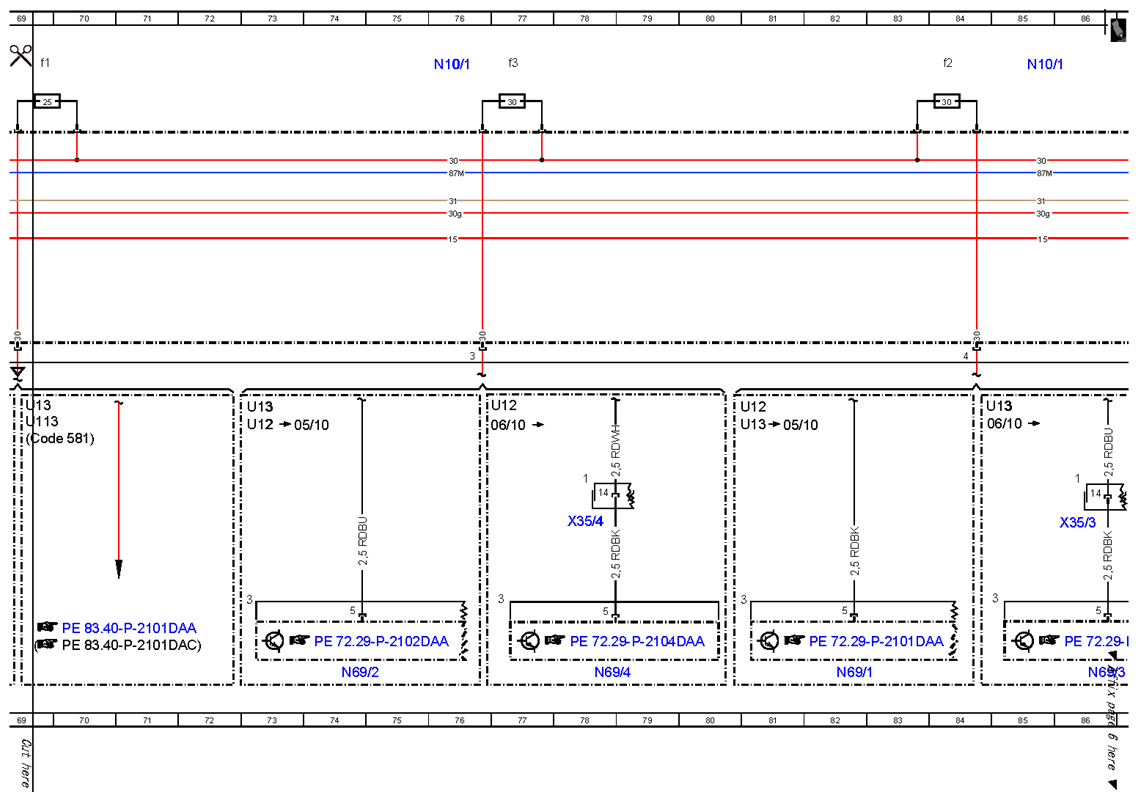

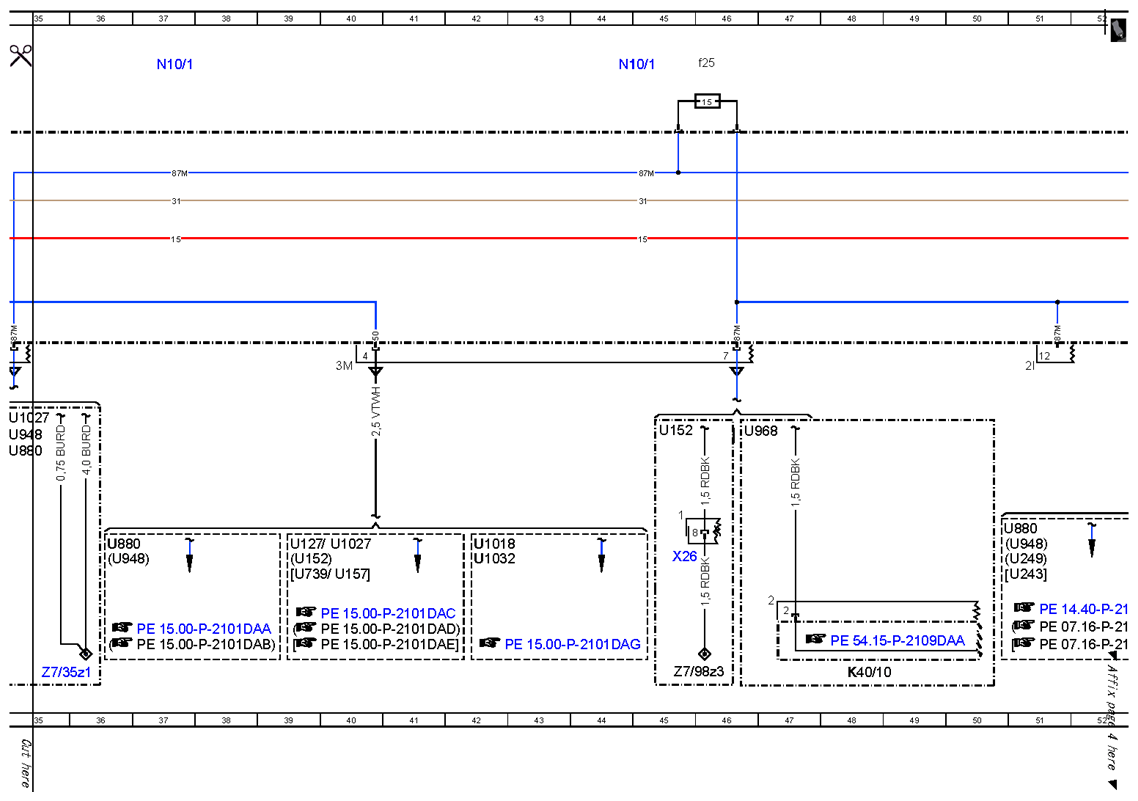

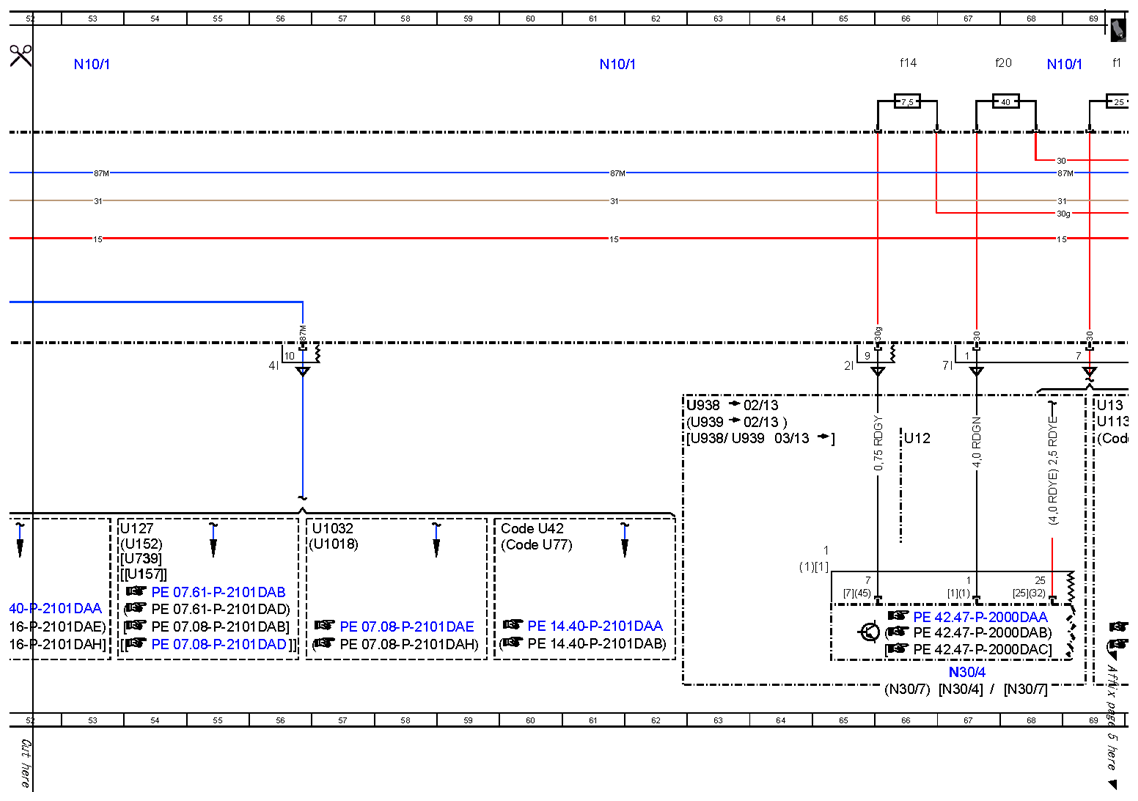

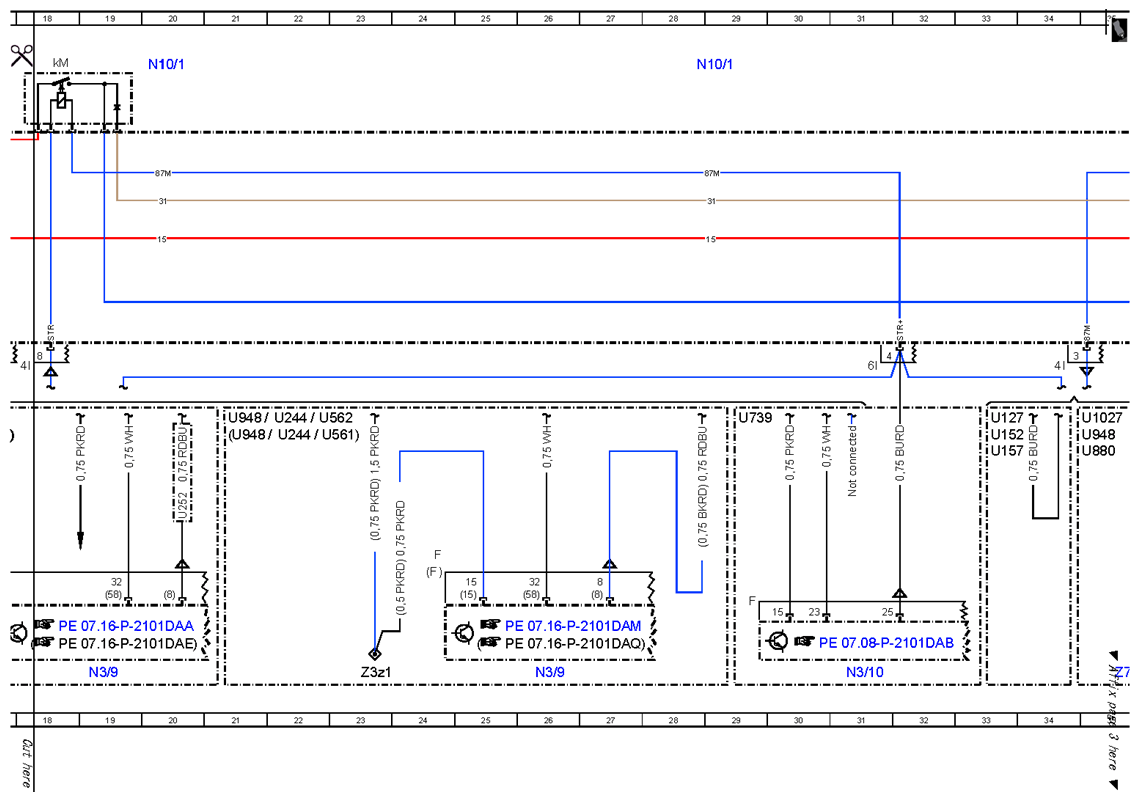

Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97DAF
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 (6)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| Code 581 | Automatic air conditioning | 69G |
| Code U42 | BlueTEC diesel exhaust treatment | 60J |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 60J |
| K40/10 | HYBRID fuse and relay module | 48L |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 37A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 68A |
| N10/1 | Front SAM control unit with fuse and relay module | 76A |
| N10/1 | Front SAM control unit with fuse and relay module | 85A |
| N10/1 | Front SAM control unit with fuse and relay module | 53A |
| N10/1 | Front SAM control unit with fuse and relay module | 61A |
| N10/1 | Front SAM control unit with fuse and relay module | 29A |
| N10/1 | Front SAM control unit with fuse and relay module | 91A |
| N10/1f1 | Fuse 1 | 69A |
| N10/1f14 | Fuse 14 | 66A |
| N10/1f2 | Fuse 2 | 84A |
| N10/1f20 | Fuse 20 | 67A |
| N10/1f25 | Fuse 25 | 46A |
| N10/1f3 | Fuse 3 | 77A |
| N10/1f6 | Fuse 6 | 15A |
| N10/1f7 | Fuse 7 | 17A |
| N10/1f9 | Fuse 9 | 90A |
| N10/1kM | Starter circuit 50 relay | 18A |
| N118/2 | CNG control unit | 3L |
| N3/10 | ME-SFI [ME] control unit | 7L |
| N3/10 | ME-SFI [ME] control unit | 11L |
| N3/10 | ME-SFI [ME] control unit | 31L |
| N3/10 | ME-SFI [ME] control unit | 15L |
| N3/9 | CDI control unit | 19L |
| N3/9 | CDI control unit | 26L |
| N30/4 | Electronic Stability Program control unit | 67L |
| N30/4 | Electronic Stability Program control unit | 67L |
| N30/7 | Premium Electronic Stability Program control unit | 66L |
| N30/7 | Premium Electronic Stability Program control unit | 68L |
| N69/1 | Left front door control unit | 82L |
| N69/2 | Right front door control unit | 74L |
| N69/3 | Left rear door control unit | 86L |
| N69/4 | Right rear door control unit | 78L |
| U1018 | Valid for gasoline engine 276 | 42J |
| U1018 | Valid for gasoline engine 276 | 56J |
| U1018 | Valid for gasoline engine 276 | 13G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 1G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 35G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 40J |
| U1032 | Valid for engine 278 and 157 | 42J |
| U1032 | Valid for engine 278 and 157 | 57J |
| U1032 | Valid for engine 278 and 157 | 13G |
| U107 | Valid for socket in glove compartment | 88G |
| U113 | Valid for 2-zone THERMATIC | 69G |
| U12 | Valid for left-hand drive vehicles | 66G |
| U12 | Valid for left-hand drive vehicles | 73G |
| U12 | Valid for left-hand drive vehicles | 76G |
| U12 | Valid for left-hand drive vehicles | 80G |
| U12 | Valid for left-hand drive vehicles | 90J |
| U127 | Valid for combustion engines 272 and 273 KE | 1G |
| U127 | Valid for combustion engines 272 and 273 KE | 33G |
| U127 | Valid for combustion engines 272 and 273 KE | 39J |
| U127 | Valid for combustion engines 272 and 273 KE | 53J |
| U13 | Valid for right-hand drive vehicles | 69G |
| U13 | Valid for right-hand drive vehicles | 73G |
| U13 | Valid for right-hand drive vehicles | 80G |
| U13 | Valid for right-hand drive vehicles | 84G |
| U13 | Valid for right-hand drive vehicles | 90K |
| U152 | Valid for gasoline engine 156 | 1G |
| U152 | Valid for gasoline engine 156 | 33G |
| U152 | Valid for gasoline engine 156 | 39J |
| U152 | Valid for gasoline engine 156 | 53J |
| U152 | Valid for gasoline engine 156 | 45G |
| U157 | Valid for combustion engine 272 DE | 9G |
| U157 | Valid for combustion engine 272 DE | 33G |
| U157 | Valid for combustion engine 272 DE | 40J |
| U157 | Valid for combustion engine 272 DE | 54J |
| U243 | Valid for diesel engine 651 with all-wheel drive | 51J |
| U244 | Valid for BlueTEC | 22G |
| U244 | Valid for BlueTEC | 22G |
| U249 | Valid for diesel engine 651 without all-wheel drive | 51J |
| U252 | Valid for ECO start/stop function | 20H |
| U561 | Valid for Delphi system | 22G |
| U562 | Valid for Bosch system | 22G |
| U739 | Valid for gasoline engine 271 DE | 29G |
| U739 | Valid for gasoline engine 271 DE | 39J |
| U739 | Valid for gasoline engine 271 DE | 54J |
| U880 | Valid for diesel engine 642 | 35G |
| U880 | Valid for diesel engine 642 | 36J |
| U880 | Valid for diesel engine 642 | 50J |
| U880 | Valid for diesel engine 642 | 17G |
| U938 | Valid for ESP Basic | 63G |
| U938 | Valid for ESP Basic | 62G |
| U939 | Valid for ESP Premium | 63G |
| U939 | Valid for ESP Premium | 63G |
| U948 | Valid for diesel engine 651 | 35G |
| U948 | Valid for diesel engine 651 | 36J |
| U948 | Valid for diesel engine 651 | 51J |
| U948 | Valid for diesel engine 651 | 17G |
| U948 | Valid for diesel engine 651 | 21G |
| U948 | Valid for diesel engine 651 | 21G |
| U968 | Valid for mild hybrid drive | 46G |
| W15/5 | Left front footwell ground point | 91L |
| W15/7 | Right front footwell ground point | 91L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 89H |
| X26 | Interior and engine wiring harness electrical connector | 45J |
| X35/3 | Left rear door electrical connector | 86J |
| X35/4 | Right rear door electrical connector | 78J |
| X58/31 | Glove box socket | 89L |
| Z3z1 | Tml. 15 connector sleeve | 23L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 35L |
| Z7/98z3 | Circuit 87 M3e connector sleeve | 46L |
