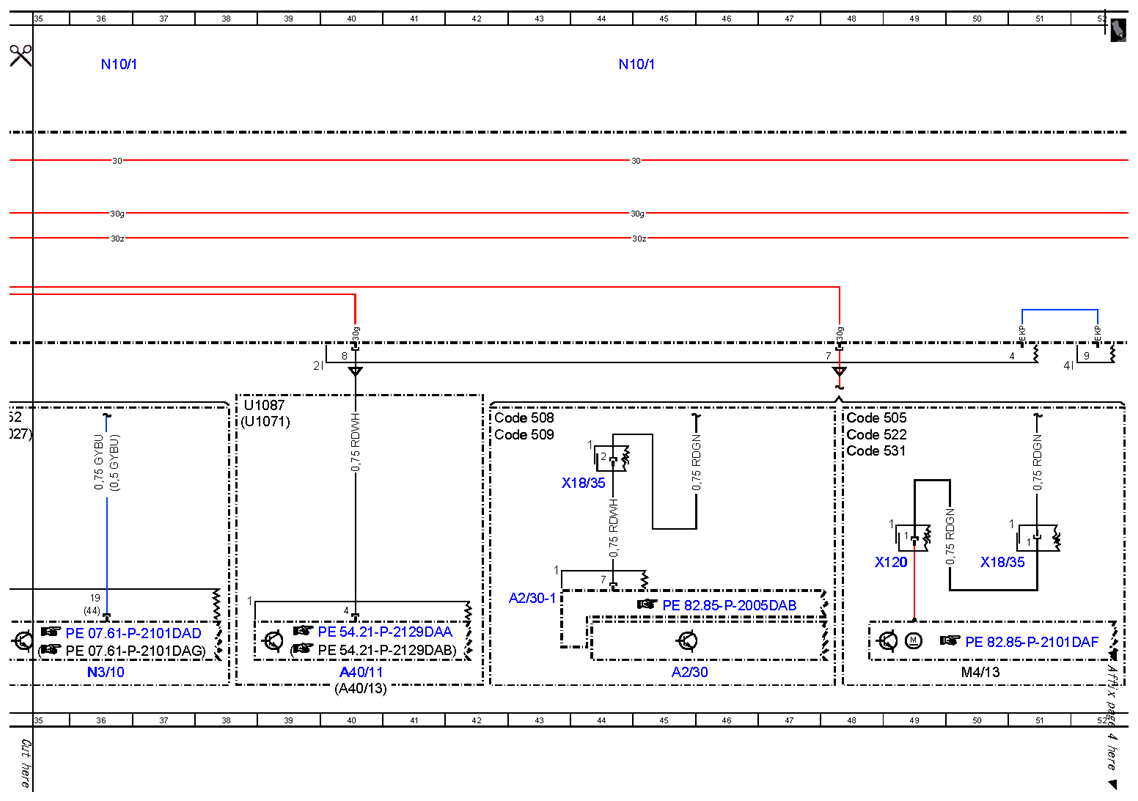

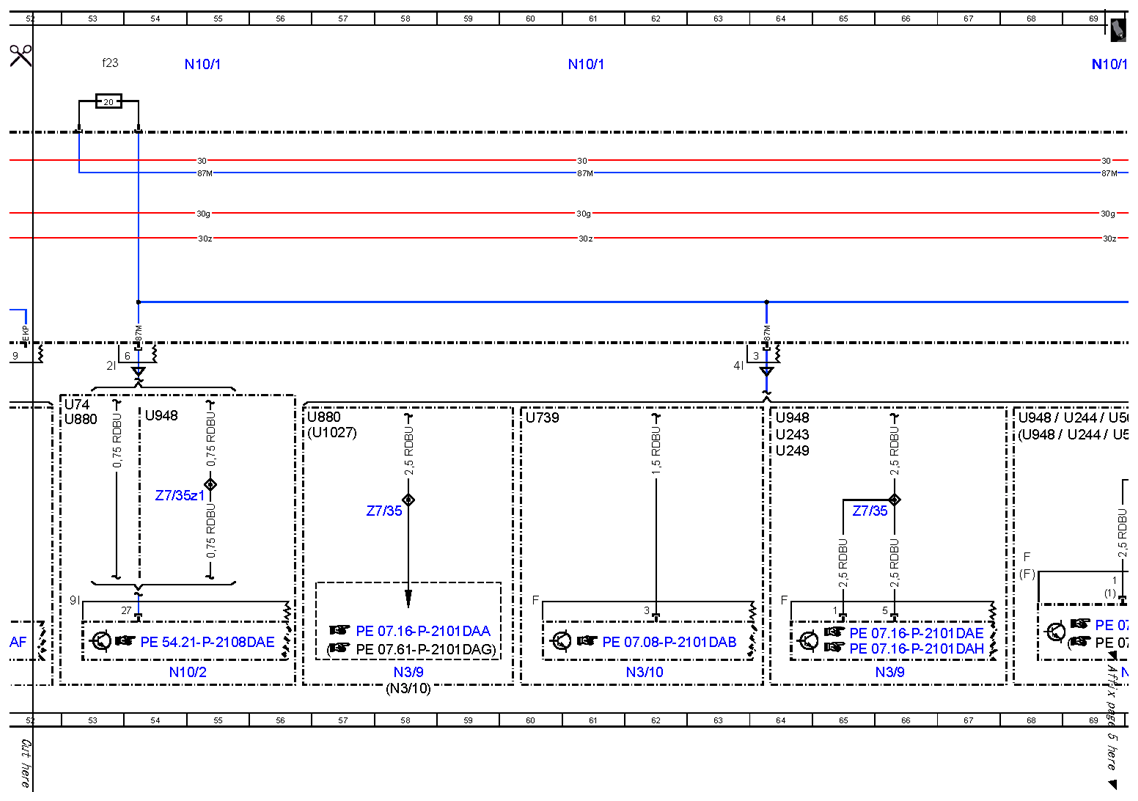

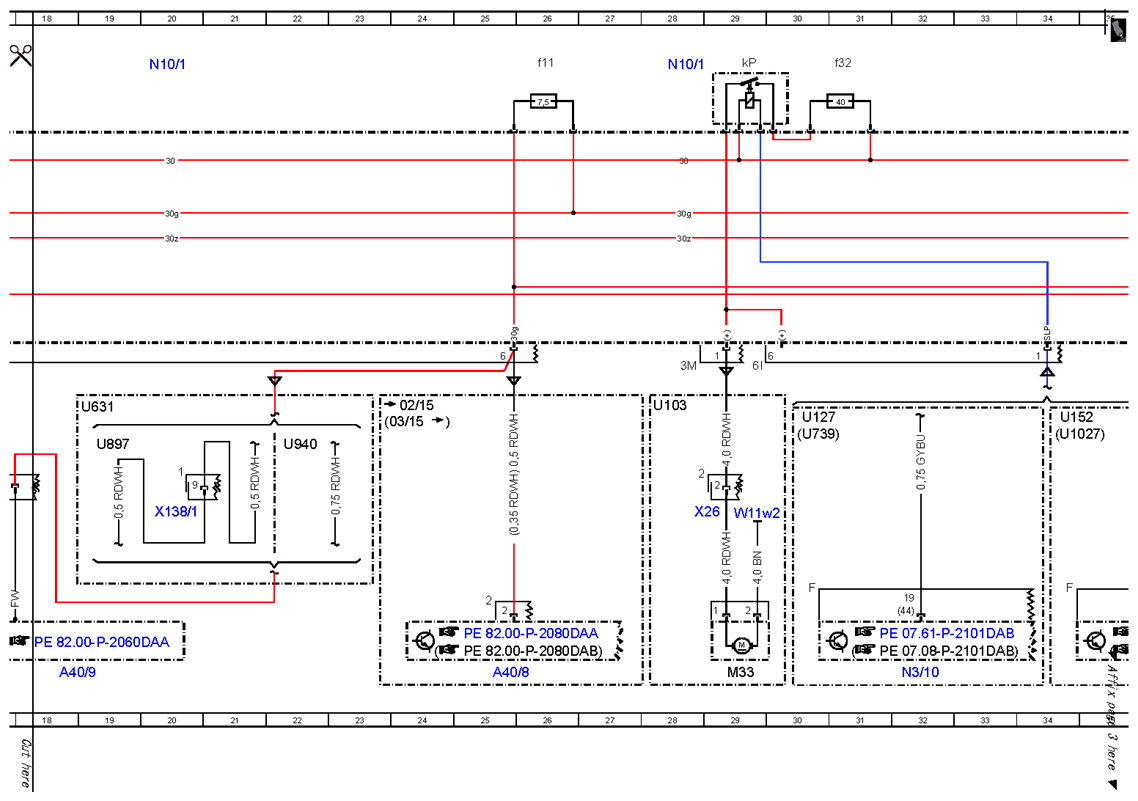

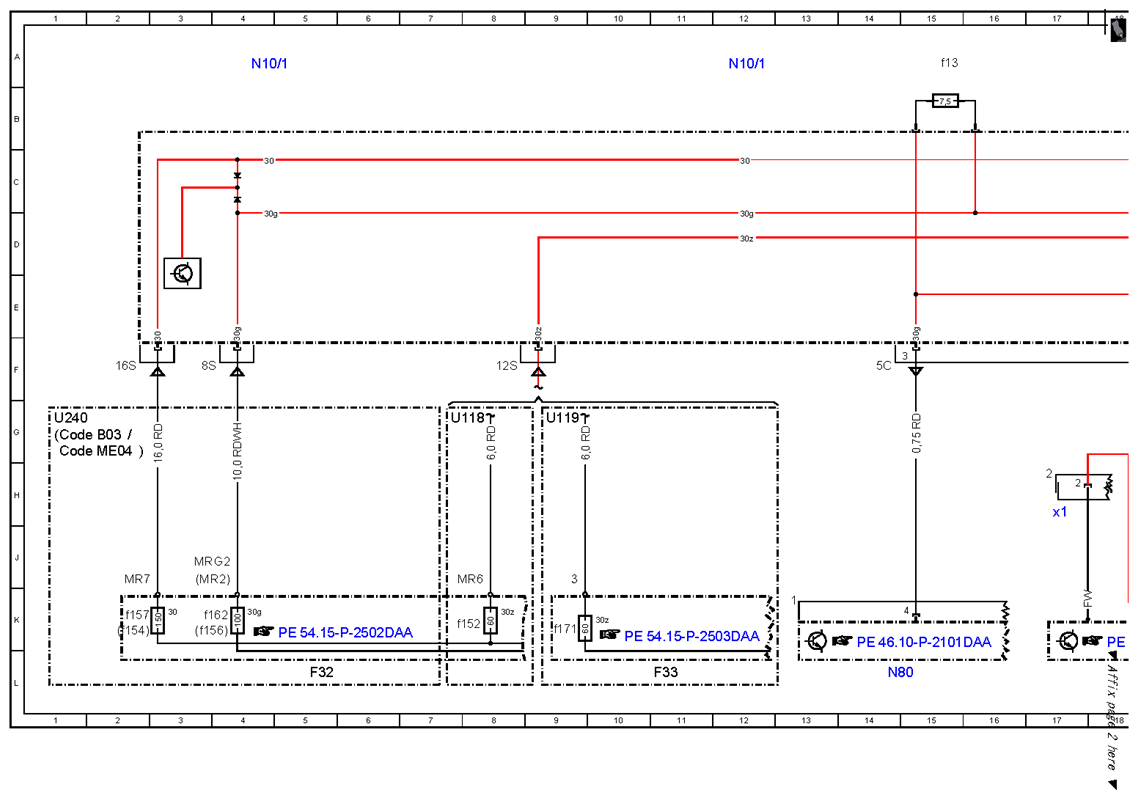

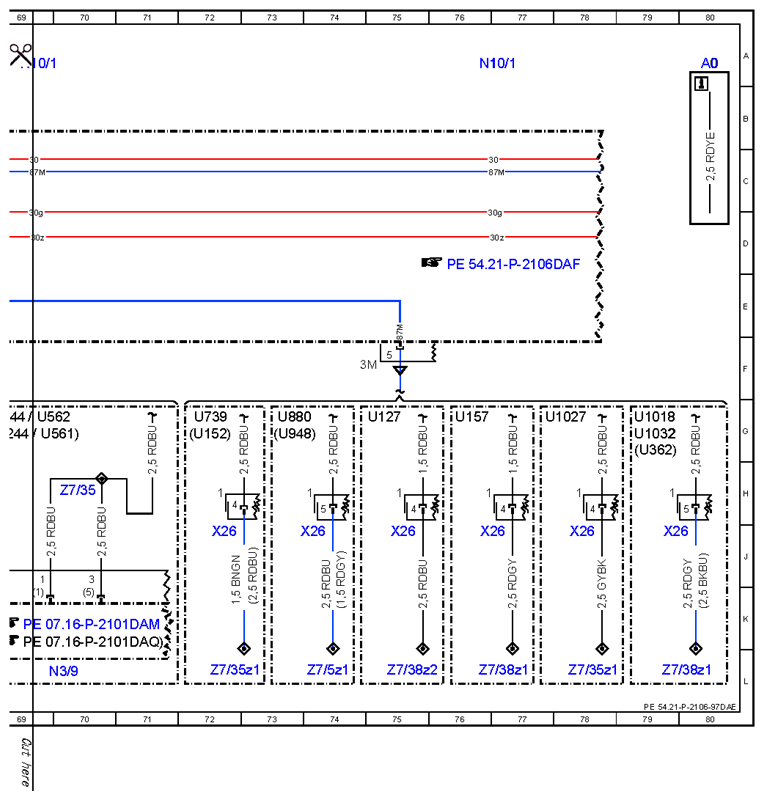

Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97DAE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 (5)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80A |
| A2/30 | Navigation module | 45L |
| A2/30-1 | Cradle for navigation module | 43K |
| A40/11 | Multifunction camera | 40L |
| A40/13 | Stereo multifunction camera | 40L |
| A40/8 | Audio/COMAND display | 25L |
| A40/9 | Audio/COMAND control panel | 18L |
| A40/9x1 | Audio/COMAND control panel electrical connector | 17H |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 48G |
| Code 508 | Navigation module preinstallation | 42G |
| Code 509 | Navigation module | 42G |
| Code 522 | Audio 20 radio | 48G |
| Code 531 | COMAND APS | 48G |
| Code B03 | ECO start/stop function | 1G |
| Code ME04 | Hybrid drive 20 KW VARIANT | 1G |
| F32 | Front electrical prefuse box | 5L |
| F32f152 | Prefuse 152 | 8K |
| F32f154 | Prefuse 154 | 2K |
| F32f156 | Prefuse 156 | 3K |
| F32f157 | Prefuse 157 | 2K |
| F32f162 | Prefuse 162 | 4K |
| F33 | Rear prefuse box | 11L |
| F33f171 | Prefuse 171 | 9K |
| M33 | Electric air pump | 29L |
| M4/13 | COMAND fan motor | 50L |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1 | Front SAM control unit with fuse and relay module | 55A |
| N10/1 | Front SAM control unit with fuse and relay module | 61A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 76A |
| N10/1 | Front SAM control unit with fuse and relay module | 69A |
| N10/1f11 | Fuse 11 | 26A |
| N10/1f13 | Fuse 13 | 15A |
| N10/1f23 | Fuse 23 | 53A |
| N10/1f32 | Fuse 32 | 31A |
| N10/1kP | Secondary air injection relay | 29A |
| N10/2 | Rear SAM control unit with fuse and relay module | 54L |
| N3/10 | ME-SFI [ME] control unit | 36L |
| N3/10 | ME-SFI [ME] control unit | 32L |
| N3/10 | ME-SFI [ME] control unit | 62L |
| N3/10 | ME-SFI [ME] control unit | 58L |
| N3/9 | CDI control unit | 66L |
| N3/9 | CDI control unit | 58L |
| N3/9 | CDI control unit | 70L |
| N80 | Steering column module control unit | 14L |
| U1018 | Valid for gasoline engine 276 | 79G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 34G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 56G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 77G |
| U103 | Valid for secondary air injection | 28G |
| U1032 | Valid for engine 278 and 157 | 79G |
| U1071 | Valid for stereo multifunction camera | 38G |
| U1087 | Valid for mono multifunction camera | 38G |
| U118 | Valid for front battery | 7G |
| U119 | Valid for rear battery | 9G |
| U127 | Valid for combustion engines 272 and 273 KE | 30G |
| U127 | Valid for combustion engines 272 and 273 KE | 75G |
| U152 | Valid for gasoline engine 156 | 34G |
| U152 | Valid for gasoline engine 156 | 72G |
| U157 | Valid for combustion engine 272 DE | 76G |
| U240 | Valid for all except ECO start/stop function | 1G |
| U243 | Valid for diesel engine 651 with all-wheel drive | 64G |
| U244 | Valid for BlueTEC | 69G |
| U244 | Valid for BlueTEC | 69G |
| U249 | Valid for diesel engine 651 without all-wheel drive | 64G |
| U362 | Valid for gasoline engine 274 | 79G |
| U561 | Valid for Delphi system | 69G |
| U562 | Valid for Bosch system | 69G |
| U631 | Valid for COMAND | 19G |
| U739 | Valid for gasoline engine 271 DE | 30G |
| U739 | Valid for gasoline engine 271 DE | 60G |
| U739 | Valid for gasoline engine 271 DE | 72G |
| U74 | Valid for diesel engines | 53G |
| U880 | Valid for diesel engine 642 | 53G |
| U880 | Valid for diesel engine 642 | 56G |
| U880 | Valid for diesel engine 642 | 73G |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 19G |
| U940 | Valid without DIRECT SELECT | 22G |
| U948 | Valid for diesel engine 651 | 54G |
| U948 | Valid for diesel engine 651 | 64G |
| U948 | Valid for diesel engine 651 | 73G |
| U948 | Valid for diesel engine 651 | 68G |
| U948 | Valid for diesel engine 651 | 68G |
| W11w2 | Right cylinder bank ground point (engine) | 29H |
| X120 | Radio fan electrical connector | 49J |
| X138/1 | Front center console electrical connector | 20H |
| X18/35 | Instrument panel and vehicle floor electrical connector | 44H |
| X18/35 | Instrument panel and vehicle floor electrical connector | 50J |
| X26 | Interior and engine wiring harness electrical connector | 29H |
| X26 | Interior and engine wiring harness electrical connector | 72J |
| X26 | Interior and engine wiring harness electrical connector | 74J |
| X26 | Interior and engine wiring harness electrical connector | 75J |
| X26 | Interior and engine wiring harness electrical connector | 77J |
| X26 | Interior and engine wiring harness electrical connector | 78J |
| X26 | Interior and engine wiring harness electrical connector | 79J |
| Z7/35 | Circuit 87 M1e connector sleeve | 58H |
| Z7/35 | Circuit 87 M1e connector sleeve | 65H |
| Z7/35 | Circuit 87 M1e connector sleeve | 70H |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 54H |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 72L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 78L |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 80L |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 77L |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 75L |
| Z7/5z1 | Circuit 87 connector sleeve | 74L |
