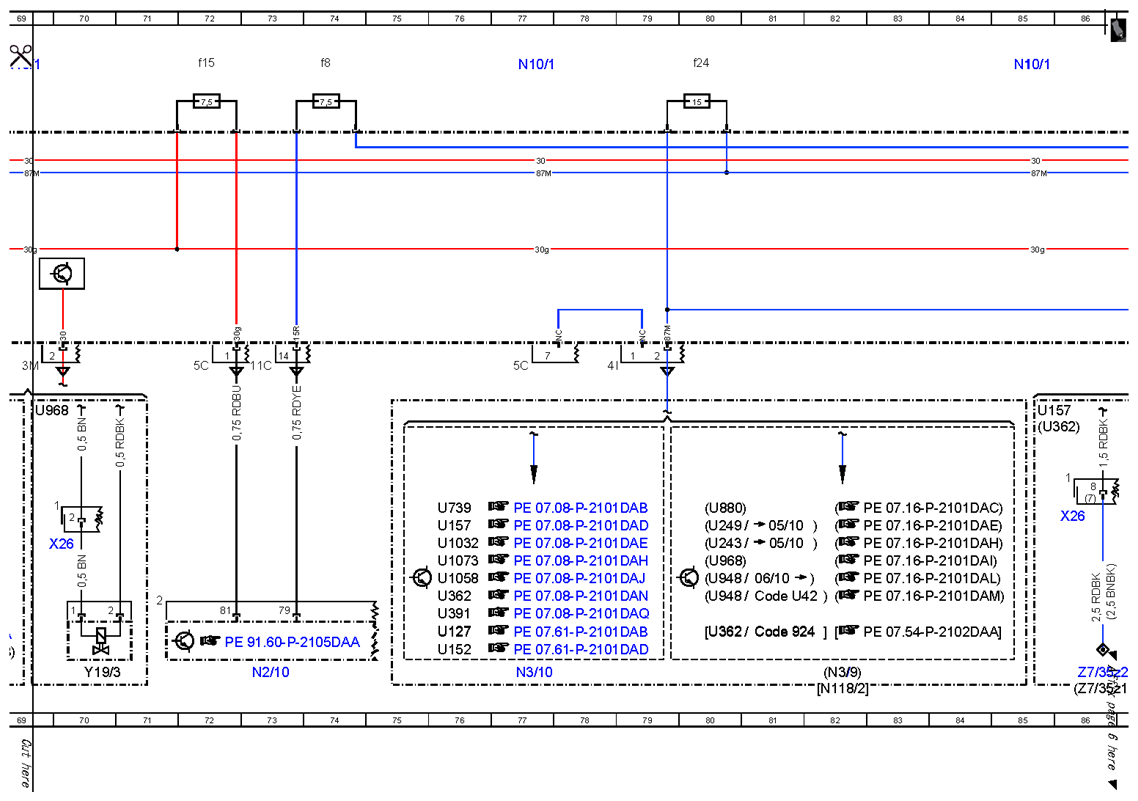

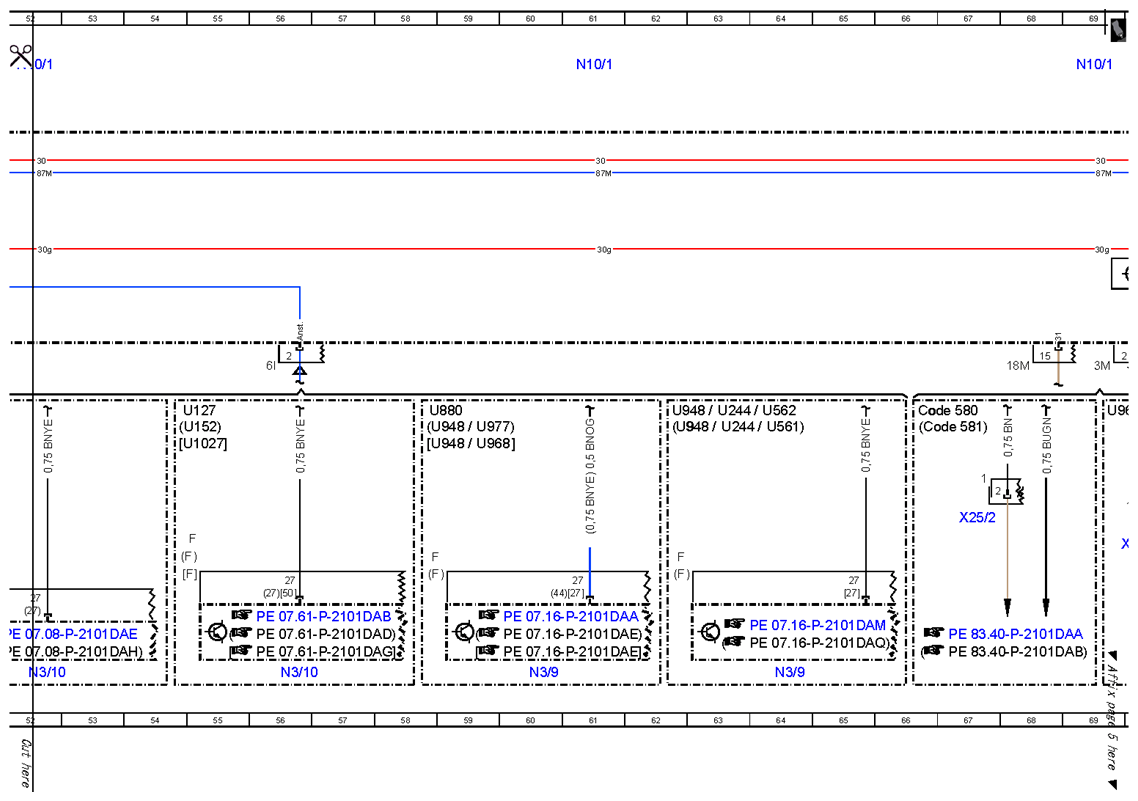

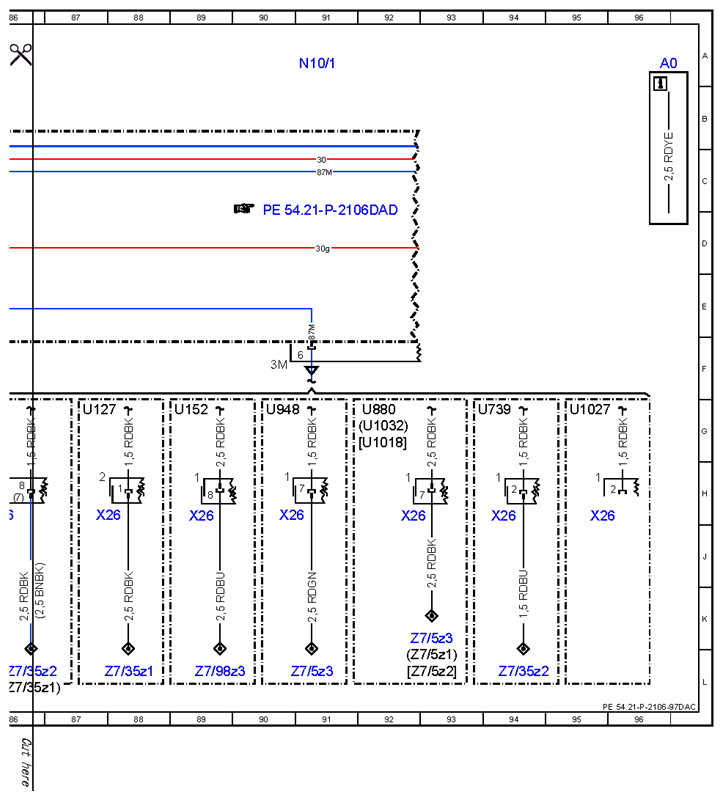

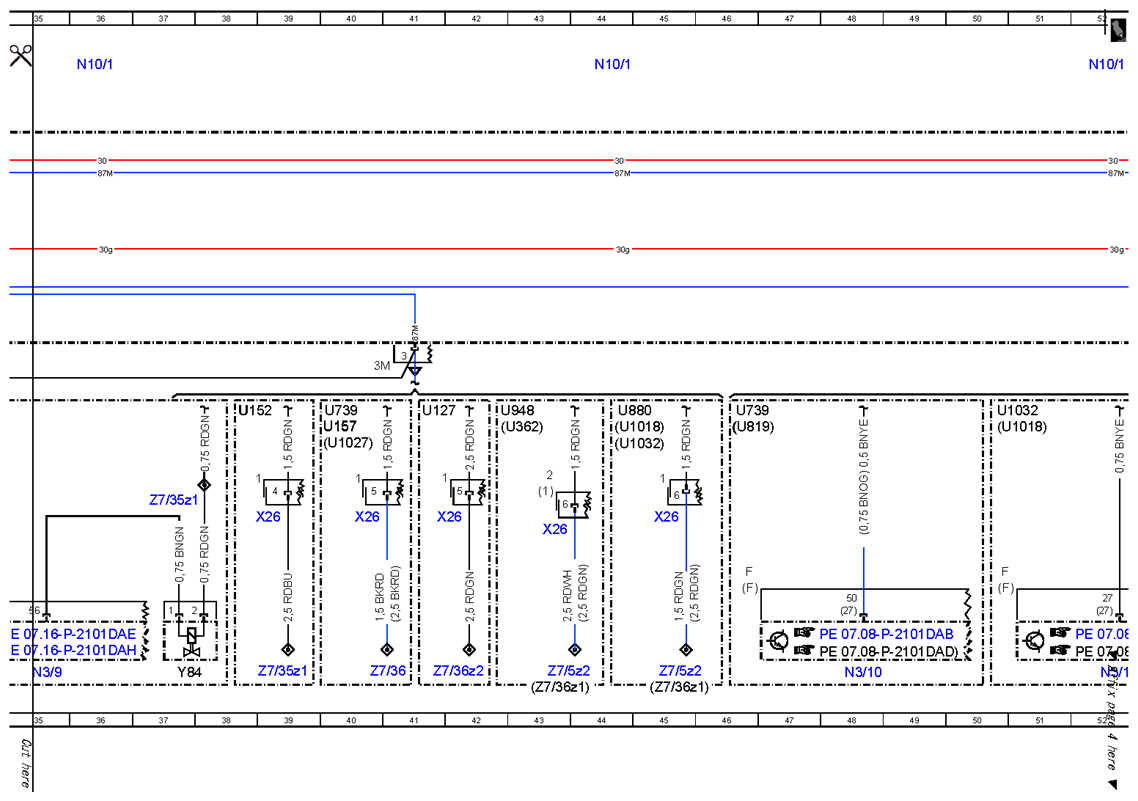

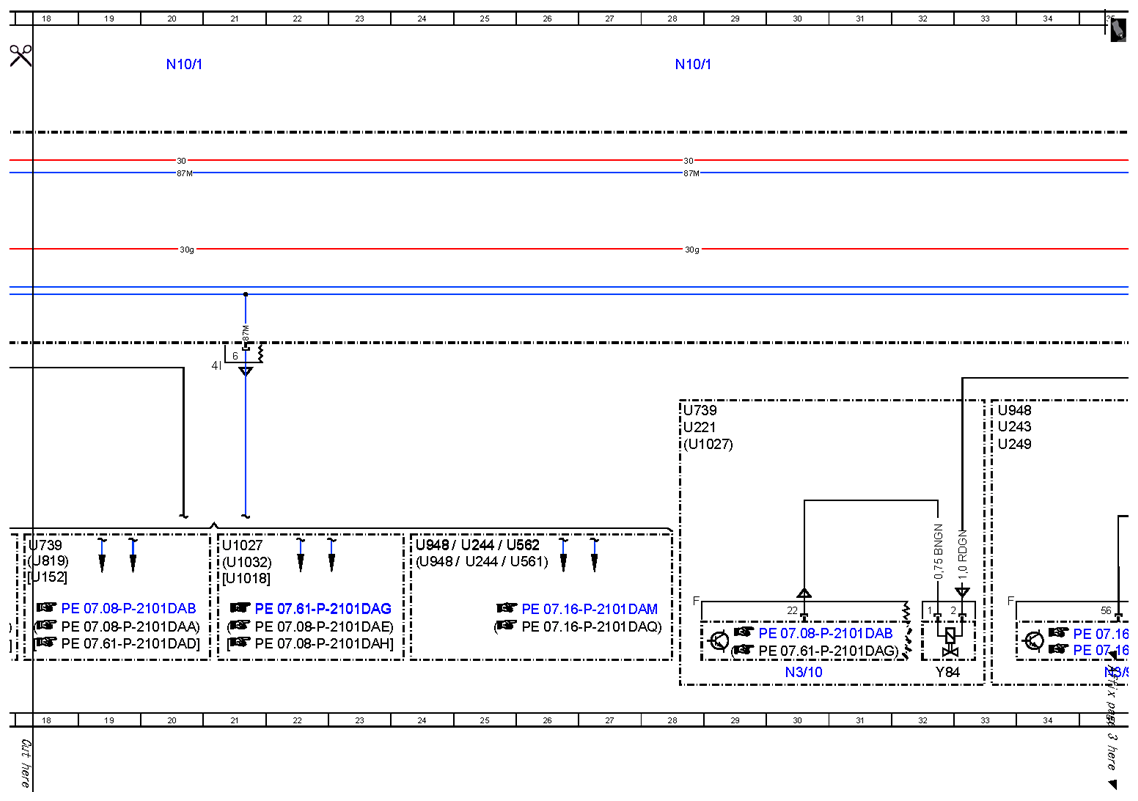

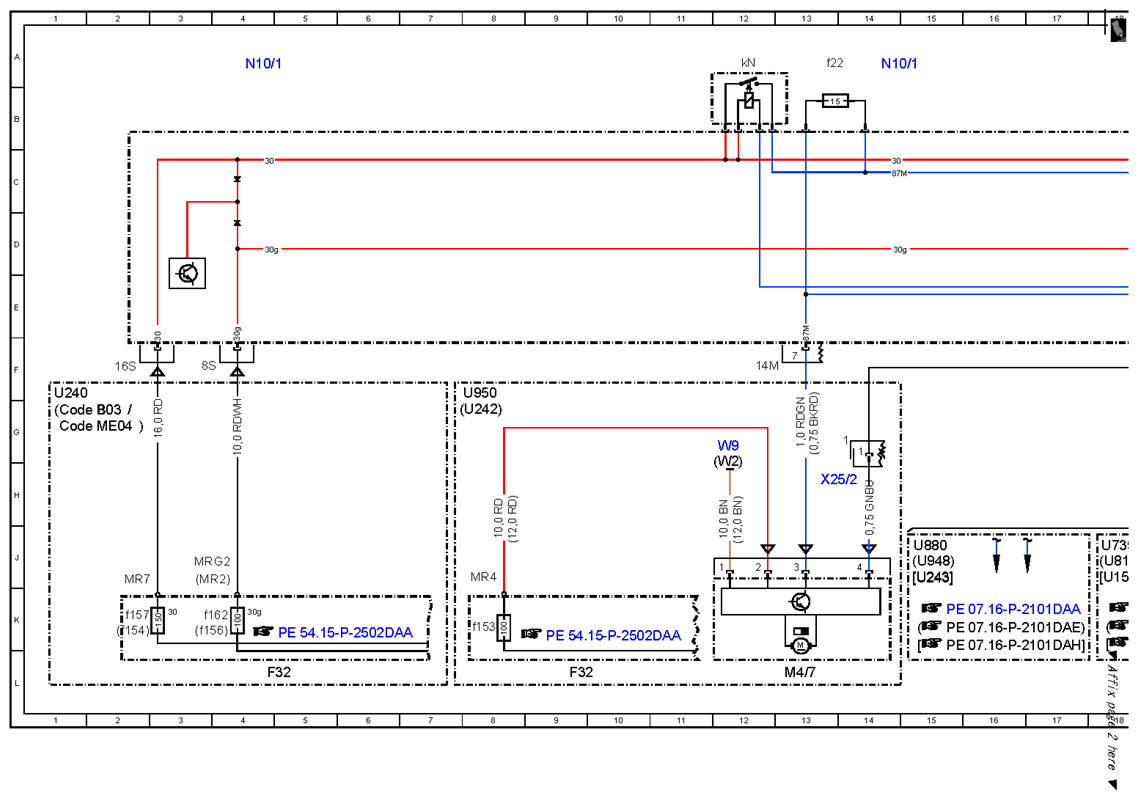

Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 (3)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96A |
| Code 580 | Air conditioning | 66G |
| Code 581 | Automatic air conditioning | 66G |
| Code 924 | Bivalent natural gas drive | 81K |
| Code B03 | ECO start/stop function | 1G |
| Code ME04 | Hybrid drive 20 KW VARIANT | 1G |
| Code U42 | BlueTEC diesel exhaust treatment | 81K |
| F32 | Front electrical prefuse box | 4L |
| F32 | Front electrical prefuse box | 9L |
| F32f153 | Prefuse 153 | 8K |
| F32f154 | Prefuse 154 | 2K |
| F32f156 | Prefuse 156 | 3K |
| F32f157 | Prefuse 157 | 2K |
| F32f162 | Prefuse 162 | 4K |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 13L |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 14A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/1 | Front SAM control unit with fuse and relay module | 69A |
| N10/1 | Front SAM control unit with fuse and relay module | 85A |
| N10/1 | Front SAM control unit with fuse and relay module | 91A |
| N10/1 | Front SAM control unit with fuse and relay module | 77A |
| N10/1 | Front SAM control unit with fuse and relay module | 61A |
| N10/1f15 | Fuse 15 | 72A |
| N10/1f22 | Fuse 22 | 13A |
| N10/1f24 | Fuse 24 | 80A |
| N10/1f8 | Fuse 8 | 74A |
| N10/1kN | Engine circuit 87 relay | 12A |
| N118/2 | CNG control unit | 82L |
| N2/10 | Supplemental restraint system control unit | 73L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/10 | ME-SFI [ME] control unit | 52L |
| N3/10 | ME-SFI [ME] control unit | 48L |
| N3/10 | ME-SFI [ME] control unit | 56L |
| N3/10 | ME-SFI [ME] control unit | 77L |
| N3/9 | CDI control unit | 35L |
| N3/9 | CDI control unit | 60L |
| N3/9 | CDI control unit | 82L |
| N3/9 | CDI control unit | 64L |
| U1018 | Valid for gasoline engine 276 | 21J |
| U1018 | Valid for gasoline engine 276 | 44G |
| U1018 | Valid for gasoline engine 276 | 50G |
| U1018 | Valid for gasoline engine 276 | 91G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 21J |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 28G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 40G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 54G |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 95G |
| U1032 | Valid for engine 278 and 157 | 21J |
| U1032 | Valid for engine 278 and 157 | 44G |
| U1032 | Valid for engine 278 and 157 | 50G |
| U1032 | Valid for engine 278 and 157 | 91G |
| U1032 | Valid for engine 278 and 157 | 76J |
| U1058 | Valid for model 212.095 | 76J |
| U1073 | Valid for gasoline engine 276.9 | 76J |
| U127 | Valid for combustion engines 272 and 273 KE | 41G |
| U127 | Valid for combustion engines 272 and 273 KE | 54G |
| U127 | Valid for combustion engines 272 and 273 KE | 87G |
| U127 | Valid for combustion engines 272 and 273 KE | 76K |
| U152 | Valid for gasoline engine 156 | 18J |
| U152 | Valid for gasoline engine 156 | 38G |
| U152 | Valid for gasoline engine 156 | 54G |
| U152 | Valid for gasoline engine 156 | 89G |
| U152 | Valid for gasoline engine 156 | 76L |
| U157 | Valid for combustion engine 272 DE | 40G |
| U157 | Valid for combustion engine 272 DE | 85G |
| U157 | Valid for combustion engine 272 DE | 76J |
| U221 | Valid for China | 28G |
| U240 | Valid for all except ECO start/stop function | 1F |
| U242 | Valid for fan motor 800 W | 7G |
| U243 | Valid for diesel engine 651 with all-wheel drive | 15J |
| U243 | Valid for diesel engine 651 with all-wheel drive | 33G |
| U243 | Valid for diesel engine 651 with all-wheel drive | 80J |
| U244 | Valid for BlueTEC | 25J |
| U244 | Valid for BlueTEC | 25J |
| U244 | Valid for BlueTEC | 63G |
| U244 | Valid for BlueTEC | 63G |
| U249 | Valid for diesel engine 651 without all-wheel drive | 33G |
| U249 | Valid for diesel engine 651 without all-wheel drive | 80J |
| U362 | Valid for gasoline engine 274 | 42G |
| U362 | Valid for gasoline engine 274 | 85G |
| U362 | Valid for gasoline engine 274 | 76K |
| U362 | Valid for gasoline engine 274 | 80K |
| U391 | Valid for gasoline engine 276.8 | 76K |
| U561 | Valid for Delphi system | 25J |
| U561 | Valid for Delphi system | 64G |
| U562 | Valid for Bosch system | 25J |
| U562 | Valid for Bosch system | 64G |
| U739 | Valid for gasoline engine 271 DE | 18J |
| U739 | Valid for gasoline engine 271 DE | 28G |
| U739 | Valid for gasoline engine 271 DE | 40G |
| U739 | Valid for gasoline engine 271 DE | 46G |
| U739 | Valid for gasoline engine 271 DE | 93G |
| U739 | Valid for gasoline engine 271 DE | 76H |
| U819 | Valid for gasoline engine 272 | 18J |
| U819 | Valid for gasoline engine 272 | 46G |
| U880 | Valid for diesel engine 642 | 15J |
| U880 | Valid for diesel engine 642 | 44G |
| U880 | Valid for diesel engine 642 | 58G |
| U880 | Valid for diesel engine 642 | 92G |
| U880 | Valid for diesel engine 642 | 80H |
| U948 | Valid for diesel engine 651 | 15J |
| U948 | Valid for diesel engine 651 | 33G |
| U948 | Valid for diesel engine 651 | 42G |
| U948 | Valid for diesel engine 651 | 58G |
| U948 | Valid for diesel engine 651 | 58G |
| U948 | Valid for diesel engine 651 | 90G |
| U948 | Valid for diesel engine 651 | 80J |
| U948 | Valid for diesel engine 651 | 80K |
| U948 | Valid for diesel engine 651 | 24J |
| U948 | Valid for diesel engine 651 | 24J |
| U948 | Valid for diesel engine 651 | 62G |
| U948 | Valid for diesel engine 651 | 62G |
| U950 | Valid for fan motor 650 W | 8F |
| U968 | Valid for mild hybrid drive | 59G |
| U968 | Valid for mild hybrid drive | 69G |
| U968 | Valid for mild hybrid drive | 80J |
| U977 | Not valid for mild hybrid drive | 59G |
| W2 | Right front ground point at lamp unit | 12H |
| W9 | Left front ground point (at lamp unit) | 12G |
| X25/2 | Engine compartment/interior electrical connector | 14H |
| X25/2 | Engine compartment/interior electrical connector | 67H |
| X26 | Interior and engine wiring harness electrical connector | 40H |
| X26 | Interior and engine wiring harness electrical connector | 39H |
| X26 | Interior and engine wiring harness electrical connector | 42H |
| X26 | Interior and engine wiring harness electrical connector | 43J |
| X26 | Interior and engine wiring harness electrical connector | 45H |
| X26 | Interior and engine wiring harness electrical connector | 70J |
| X26 | Interior and engine wiring harness electrical connector | 95H |
| X26 | Interior and engine wiring harness electrical connector | 89H |
| X26 | Interior and engine wiring harness electrical connector | 86H |
| X26 | Interior and engine wiring harness electrical connector | 88H |
| X26 | Interior and engine wiring harness electrical connector | 90H |
| X26 | Interior and engine wiring harness electrical connector | 92H |
| X26 | Interior and engine wiring harness electrical connector | 94H |
| Y19/3 | Evaporator shutoff valve | 70L |
| Y84 | Radiator shutters actuator | 32L |
| Y84 | Radiator shutters actuator | 37L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 39L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 37H |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 88L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 86L |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 86L |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 94L |
| Z7/36 | Circuit 87 M2e connector sleeve | 41L |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 43L |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 45L |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 42L |
| Z7/5z1 | Circuit 87 connector sleeve | 92L |
| Z7/5z2 | Circuit 87 connector sleeve | 45L |
| Z7/5z2 | Circuit 87 connector sleeve | 43L |
| Z7/5z2 | Circuit 87 connector sleeve | 92L |
| Z7/5z3 | Circuit 87 connector sleeve | 91L |
| Z7/5z3 | Circuit 87 connector sleeve | 93K |
| Z7/98z3 | Circuit 87 M3e connector sleeve | 89L |
