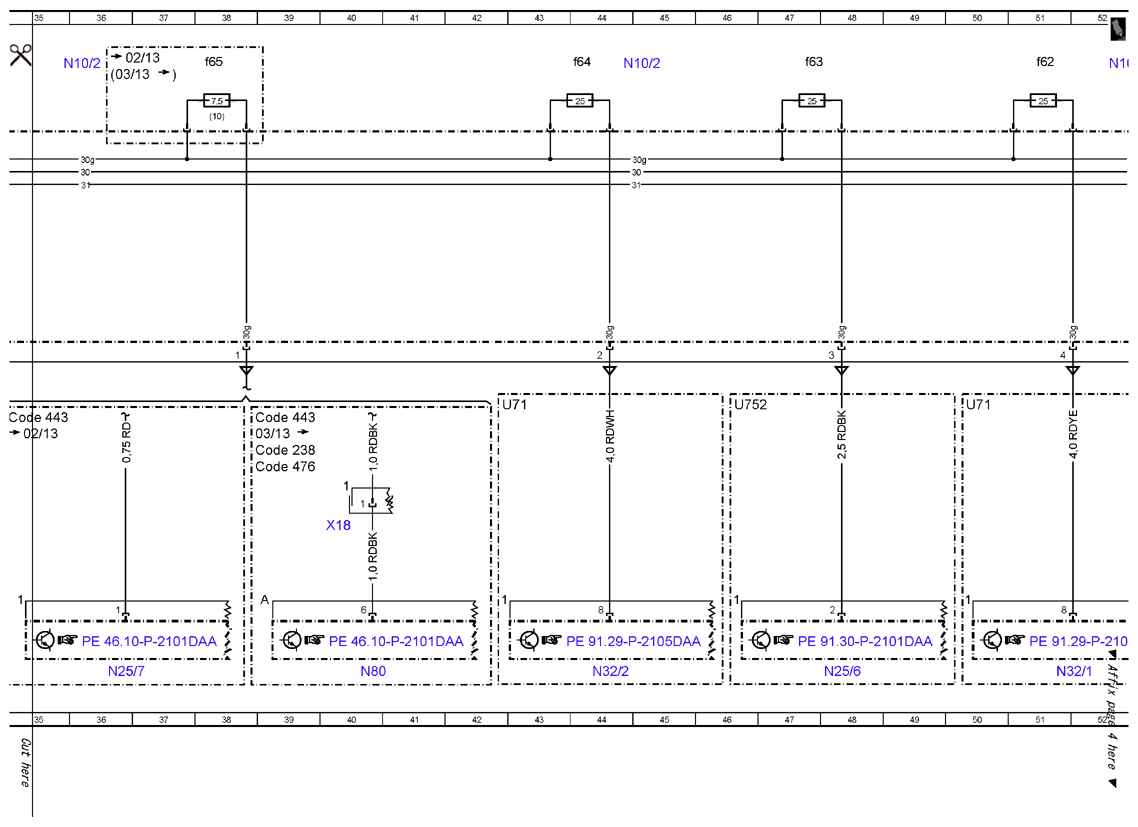

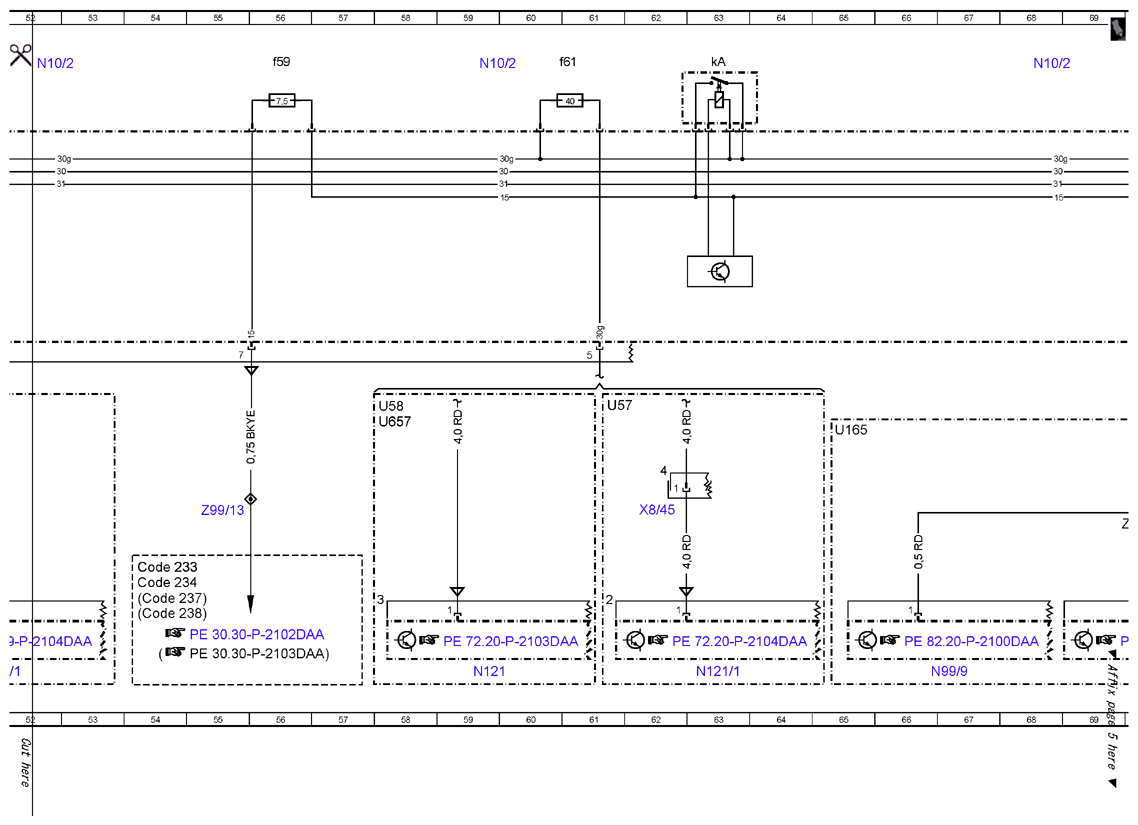

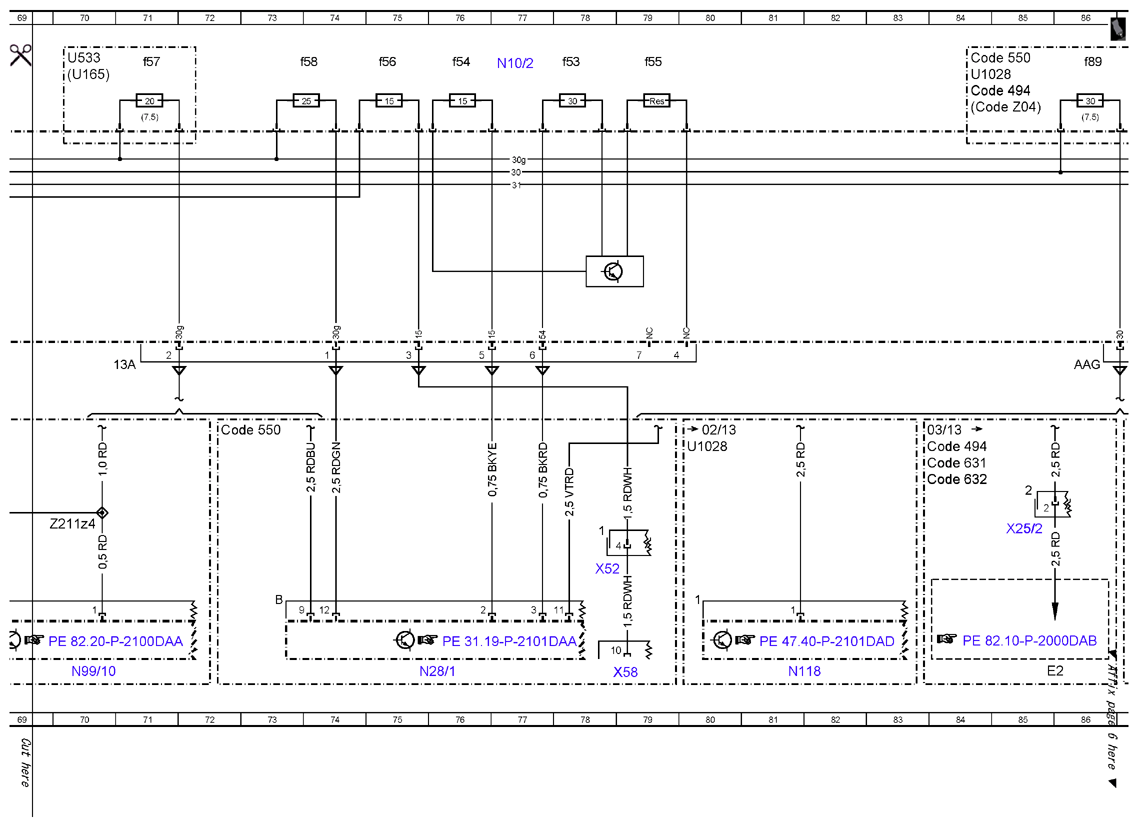

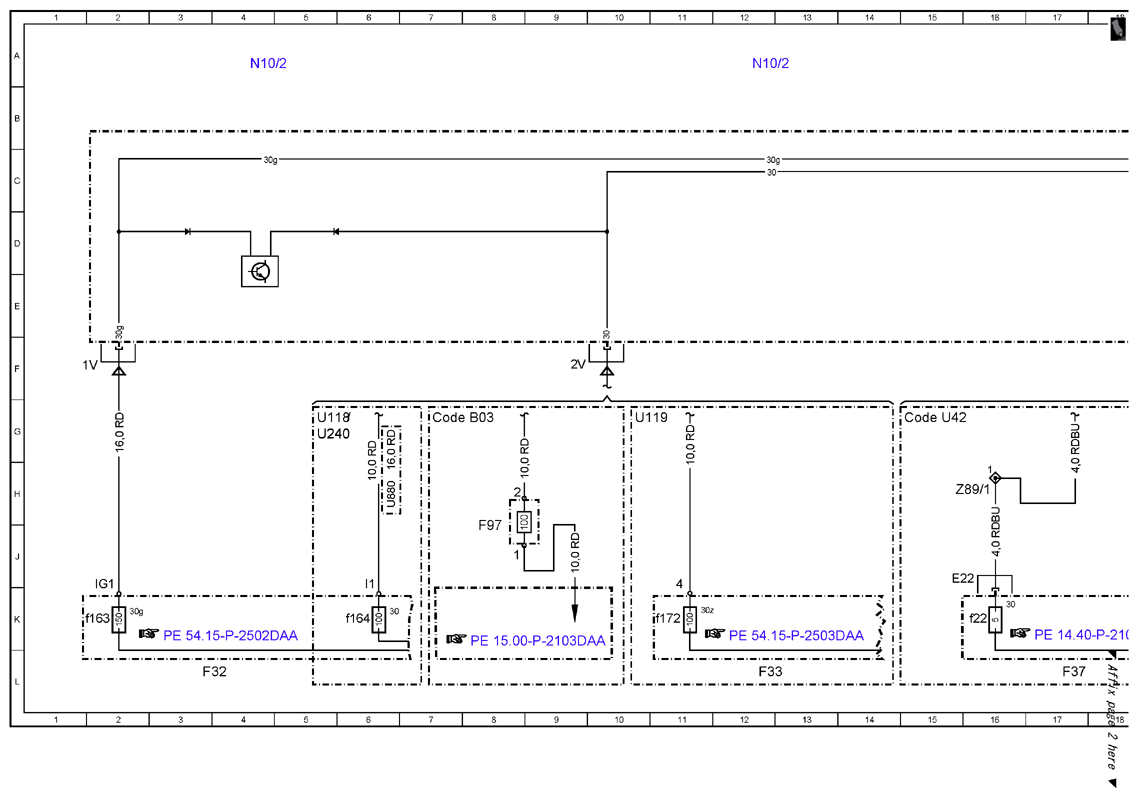

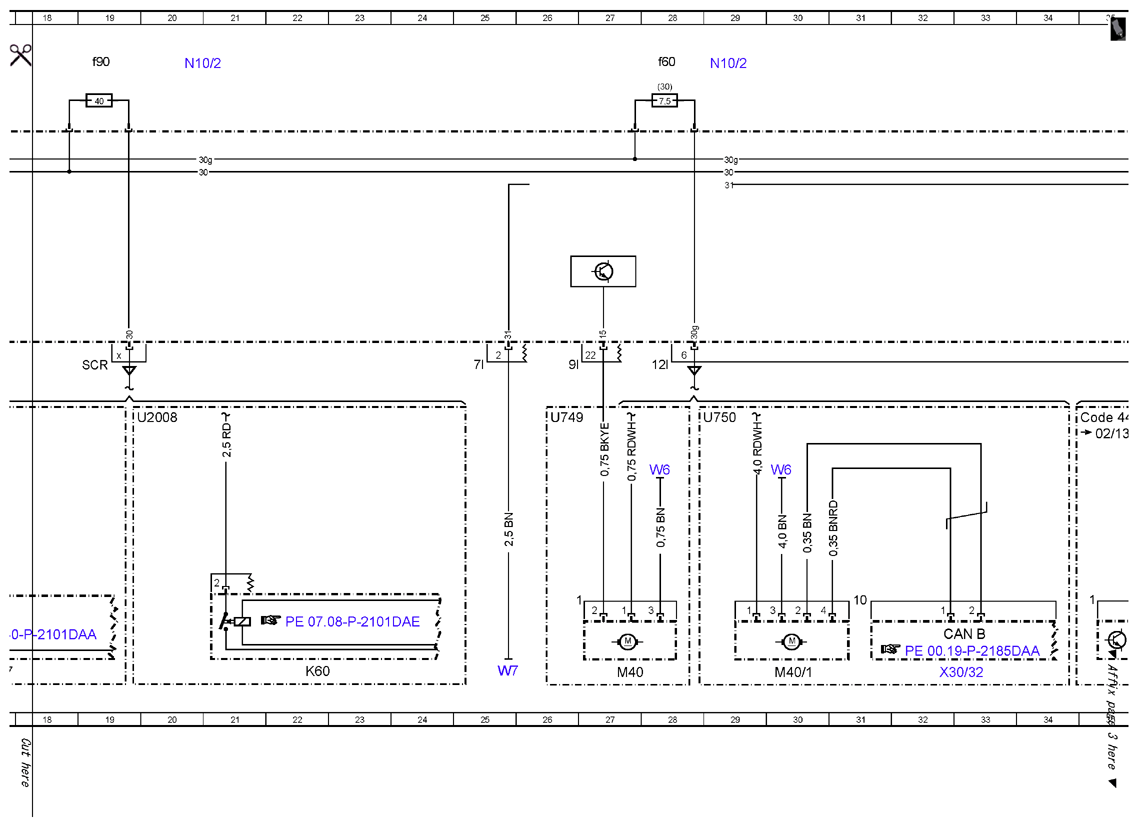

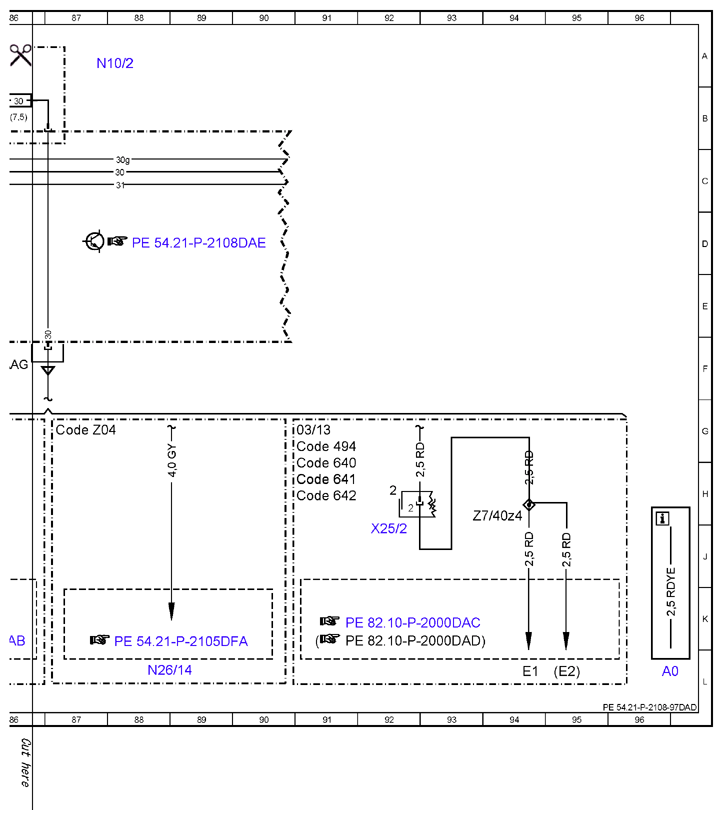

Wiring diagram / rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Sheet 4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| CAN B | Interior CAN | 33K |
| Code 233 | DISTRONIC PLUS | 54J |
| Code 234 | Blind spot assist | 54J |
| Code 237 | Active Blind Spot Assist | 54K |
| Code 238 | Active Lane Keeping Assist | 54K |
| Code 238 | Active Lane Keeping Assist | 38G |
| Code 443 | Steering wheel heater | 35G |
| Code 443 | Steering wheel heater | 38G |
| Code 476 | Automatic lane detection | 38H |
| Code 494 | USA version | 83G |
| Code 494 | USA version | 84B |
| Code 494 | USA version | 91G |
| Code 550 | Trailer hitch | 72G |
| Code 550 | Trailer hitch | 84A |
| Code 631 | Static LED headlamp, left-hand traffic | 83H |
| Code 632 | Static LED headlamp, right-hand traffic | 83H |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 91H |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 91H |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 91H |
| Code B03 | ECO start/stop function | 7G |
| Code U42 | BlueTEC diesel exhaust treatment | 15G |
| Code Z04 | High protection B4 | 87G |
| Code Z04 | High protection B4 | 84B |
| E1 | Left front lamp unit | 94L |
| E2 | Right front lamp unit | 85L |
| E2 | Right front lamp unit | 95L |
| F32 | Front electrical prefuse box | 3L |
| F32f163 | Prefuse 163 | 2K |
| F32f164 | Prefuse 164 | 6K |
| F33 | Rear prefuse box | 12L |
| F33f172 | Prefuse 172 | 11K |
| F37 | AdBlue® fuse block | 17L |
| F37f22 | Fuse 22 | 16K |
| F97 | Rear SAM control unit with fuse and relay module circuit 30 fuse | 8J |
| K60 | Coolant circulation pump relay | 22L |
| M40 | Multicontour seat pneumatic pump | 27L |
| M40/1 | Dynamic multicontour seat pneumatic pump | 30L |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 29A |
| N10/2 | Rear SAM control unit with fuse and relay module | 45A |
| N10/2 | Rear SAM control unit with fuse and relay module | 36A |
| N10/2 | Rear SAM control unit with fuse and relay module | 68A |
| N10/2 | Rear SAM control unit with fuse and relay module | 87A |
| N10/2 | Rear SAM control unit with fuse and relay module | 59A |
| N10/2 | Rear SAM control unit with fuse and relay module | 52A |
| N10/2 | Rear SAM control unit with fuse and relay module | 77A |
| N10/2f53 | Fuse 53 | 78A |
| N10/2f54 | Fuse 54 | 76A |
| N10/2f55 | Fuse 55 | 79A |
| N10/2f56 | Fuse 56 | 75A |
| N10/2f57 | Fuse 57 | 71A |
| N10/2f58 | Fuse 58 | 73A |
| N10/2f59 | Fuse 59 | 56A |
| N10/2f60 | Fuse 60 | 28A |
| N10/2f61 | Fuse 61 | 60A |
| N10/2f62 | Fuse 62 | 51A |
| N10/2f63 | Fuse 63 | 47A |
| N10/2f64 | Fuse 64 | 44A |
| N10/2f65 | Fuse 65 | 38A |
| N10/2f89 | Fuse 89 | 86A |
| N10/2f90 | Fuse 90 | 19A |
| N10/2kA | Circuit 15 relay | 63A |
| N118 | Fuel pump control unit | 81L |
| N121 | Trunk lid control unit | 59L |
| N121/1 | Tailgate control unit | 63L |
| N25/6 | Rear seat heaters control unit | 48L |
| N25/7 | Steering wheel heater control unit | 36L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 88L |
| N28/1 | Trailer recognition control unit | 75L |
| N32/1 | Driver seat control unit | 51L |
| N32/2 | Front passenger seat control unit | 44L |
| N80 | Steering column module control unit | 40L |
| N99/10 | Right front illuminated door sill molding voltage converter | 70L |
| N99/9 | Left front illuminated door sill molding voltage converter | 67L |
| U1028 | Valid for engine 157 | 80G |
| U1028 | Valid for engine 157 | 84A |
| U118 | Valid for front battery | 5G |
| U119 | Valid for rear battery | 10G |
| U165 | Valid for AMG | 65G |
| U165 | Valid for AMG | 70A |
| U2008 | Valid for model 212.076/276 | 19G |
| U240 | Valid for all except ECO start/stop function | 5G |
| U533 | Valid for trailer hitch | 70A |
| U57 | Valid for model 212.2 | 61G |
| U58 | Valid for model 212.0/1 | 58G |
| U657 | Valid for trunk lid control | 58G |
| U71 | Valid for fully electric seat adjustment with memory function | 50G |
| U71 | Valid for fully electric seat adjustment with memory function | 42G |
| U749 | Valid for multicontour seat | 26G |
| U750 | Valid for dynamic multicontour seat | 28G |
| U752 | Valid for rear heated seats | 46G |
| U880 | Valid for diesel engine 642 | 6H |
| W6 | Left rear wheel well ground point | 28H |
| W6 | Left rear wheel well ground point | 30H |
| W7 | Right rear wheel well ground point | 25L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 40J |
| X25/2 | Engine compartment/interior electrical connector | 85J |
| X25/2 | Engine compartment/interior electrical connector | 92J |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 32L |
| X52 | Trailer hitch electrical connector | 78J |
| X58 | Trailer socket | 79L |
| X8/45 | Left vehicle interior and tailgate electrical connector | 62H |
| Z211z4 | Circuit 30 supply connector sleeve | 70J |
| Z7/40z4 | Tml. 30 connector sleeve | 94H |
| Z89/1 | Tml. 30 connector sleeve | 16H |
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | 55H |
