Connector separation point wiring diagram - PE54.18-P-2300-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

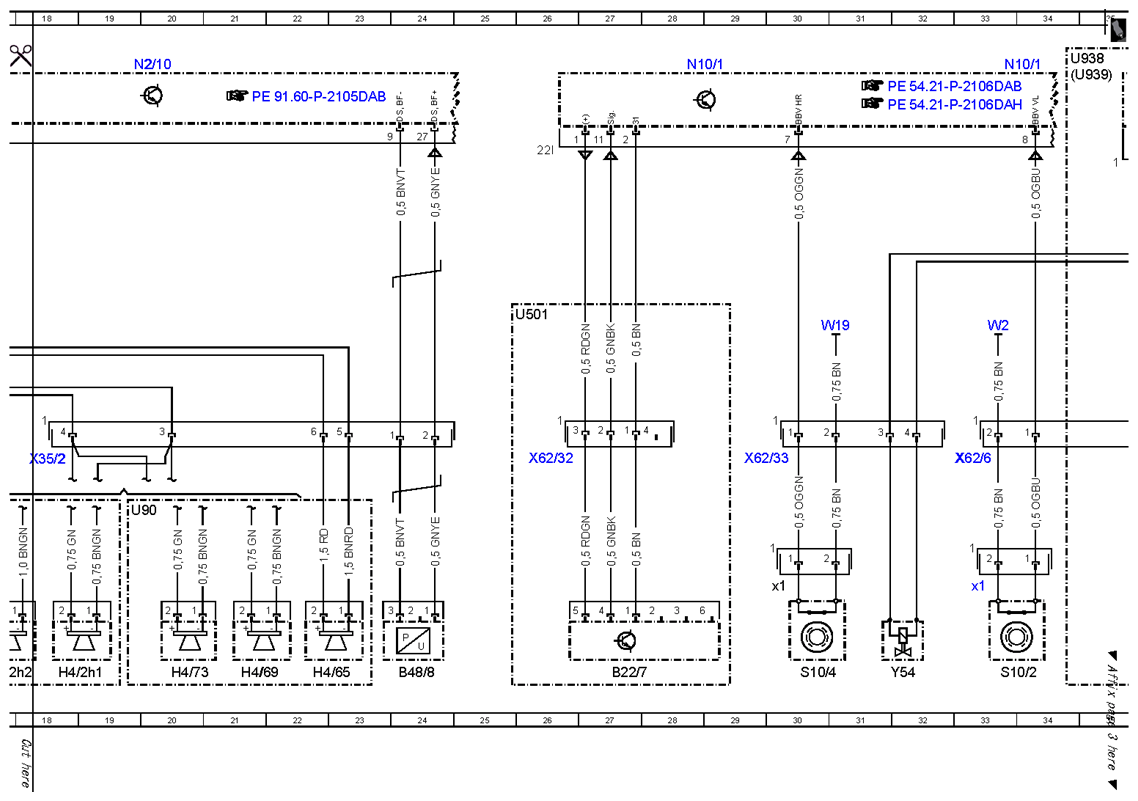

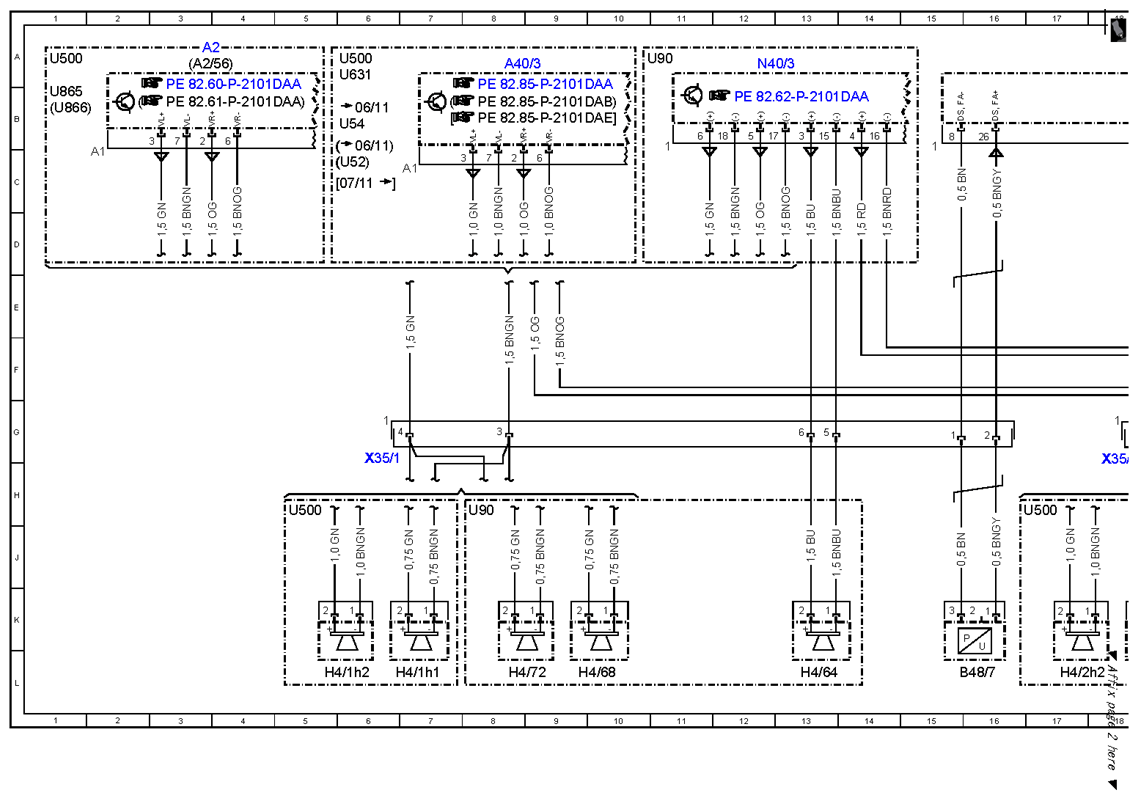

MODEL 212 X35/1, X35/2, X62/6, X62/7, X62/32, X62/33
| Code: | Designation: | Position: |
|---|---|---|

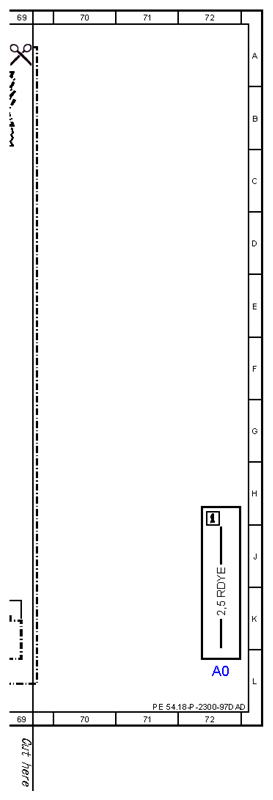

| A0 | Color code key | 72L |
| A2 | Radio | 3A |
| A2/56 | Radio with auto pilot system | 3A |
| A40/3 | COMAND control unit | 8A |
| A6 | Stationary heater unit | 62A |
| B22/10 | Right rear level sensor | 58L |
| B22/10 | Right rear level sensor | 68L |
| B22/7 | Left rear level sensor | 27L |
| B22/7 | Left rear level sensor | 56L |
| B22/7 | Left rear level sensor | 66L |
| B48/7 | Left front door pressure sensor | 16L |
| B48/8 | Right front door pressure sensor | 24L |
| H4/1h1 | Left front door tweeter | 7L |
| H4/1h2 | Left front door bass speaker | 5L |
| H4/2h1 | Right front door tweeter | 18L |
| H4/2h2 | Right front door bass speaker | 17L |
| H4/64 | Left front door sound system bass speaker | 13L |
| H4/65 | Right front door sound system bass speaker | 22L |
| H4/68 | Left front door sound system tweeter | 10L |
| H4/69 | Right front door sound system tweeter | 21L |
| H4/72 | Left front door sound system midrange and bass speakers | 8L |
| H4/73 | Right front door sound system midrange and bass speakers | 20L |
| L6/1 | Left front axle rpm sensor | 44L |
| L6/2 | Right front axle rpm sensor | 36L |
| L6/3 | Left rear axle rpm sensor | 38L |
| L6/4 | Right rear axle rpm sensor | 41L |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 33A |
| N2/10 | Supplemental restraint system control unit | 20A |

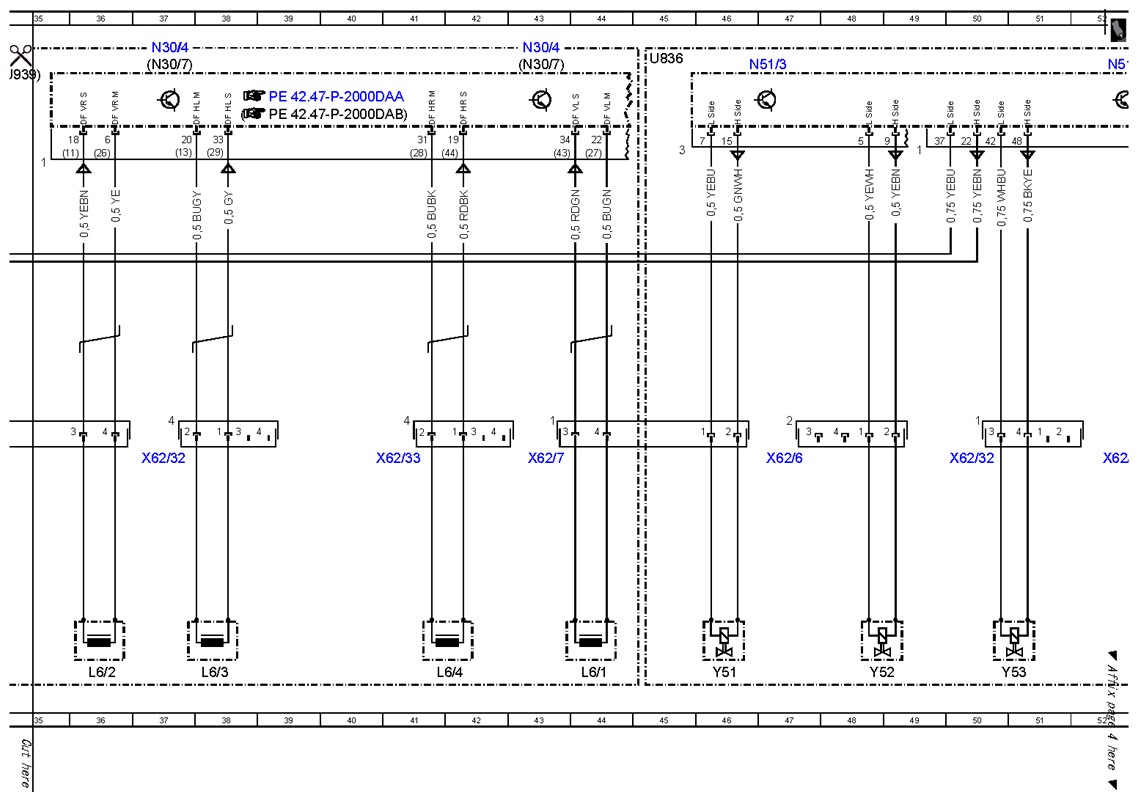

| N30/4 | Electronic Stability Program control unit | 37A |
| N30/4 | Electronic Stability Program control unit | 43A |
| N30/7 | Premium Electronic Stability Program control unit | 37A |
| N30/7 | Premium Electronic Stability Program control unit | 43A |
| N40/3 | Sound system amplifier control unit | 12A |

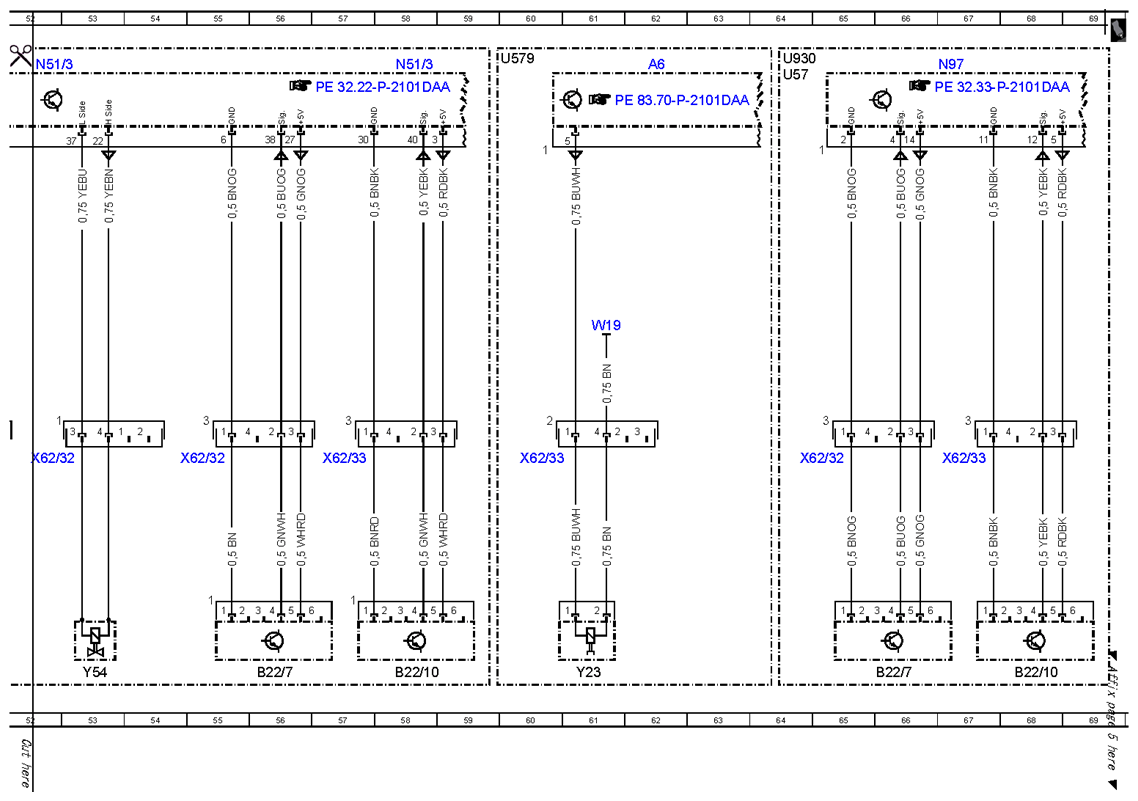

| N51/3 | AIRMATIC control unit | 47A |
| N51/3 | AIRMATIC control unit | 52A |
| N51/3 | AIRMATIC control unit | 58A |
| N97 | Rear axle electronic level control unit | 67A |
| S10/2 | Right front brake wear sensor | 33L |
| S10/2x1 | Right front brake wear sensor electrical connector | 33K |
| S10/4 | Right rear brake wear sensor | 30L |
| U500 | Not valid for sound system | 1A |
| U500 | Not valid for sound system | 6A |
| U501 | Valid for xenon headlamps | 25E |
| U52 | Valid for Japan | 5C |
| U54 | Valid for all except Japan | 6B |
| U57 | Valid for model 212.2 | 64A |
| U579 | Valid for stationary heater | 60A |
| U631 | Valid for COMAND | 6A |
| U836 | Valid for AIRMATIC | 45A |
| U865 | Valid for Audio 20 | 1B |
| U866 | Valid for Audio 50 | 1B |
| U90 | Valid for sound system | 10A |
| U930 | Valid for electronic level control with hydraulics | 64A |
| U938 | Valid for ESP Basic | 34A |
| U939 | Valid for ESP Premium | 34A |
| W19 | Right front seat crossmember ground point | 31E |
| W19 | Right front seat crossmember ground point | 61E |
| W2 | Right front ground point at lamp unit | 33E |
| X35/1 | Left front door electrical connector | 6H |
| X35/2 | Right front door electrical connector | 18H |
| X62/32 | Rear axle electrical connector, left distributor | 26H |
| X62/32 | Rear axle electrical connector, left distributor | 37H |
| X62/32 | Rear axle electrical connector, left distributor | 50H |
| X62/32 | Rear axle electrical connector, left distributor | 52H |
| X62/32 | Rear axle electrical connector, left distributor | 55H |
| X62/32 | Rear axle electrical connector, left distributor | 65H |
| X62/33 | Rear axle electrical connector, right distributor | 30H |
| X62/33 | Rear axle electrical connector, right distributor | 41H |
| X62/33 | Rear axle electrical connector, right distributor | 67H |
| X62/33 | Rear axle electrical connector, right distributor | 60H |
| X62/33 | Rear axle electrical connector, right distributor | 57H |
| X62/6 | Front axle electrical connector, right distributor | 33H |
| X62/6 | Front axle electrical connector, right distributor | 47H |
| X62/7 | Front axle electrical connector, left distributor | 43H |
| Y23 | Stationary heater fuel pump | 61L |
| Y51 | Left front axle damping valve unit | 46L |
| Y52 | Right front axle damping valve unit | 48L |
| Y53 | Left rear axle damping valve unit | 51L |
| Y54 | Right rear axle damping valve unit | 32L |
| Y54 | Right rear axle damping valve unit | 53L |
