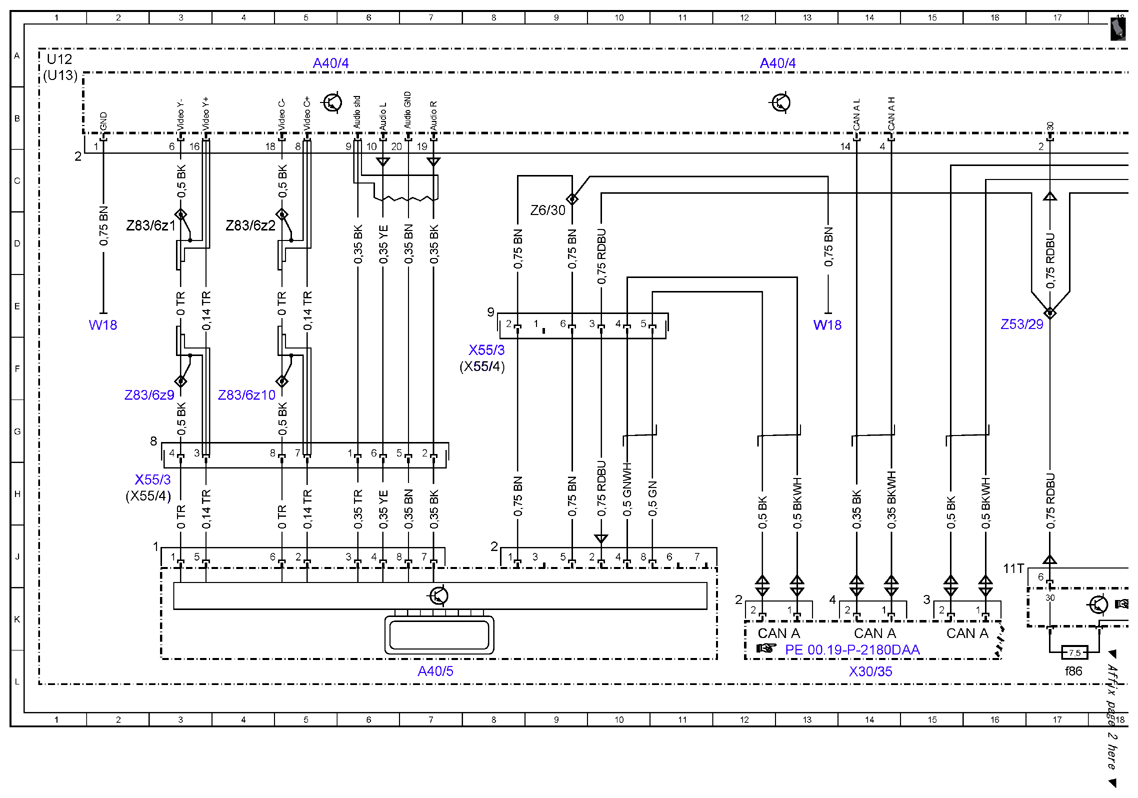

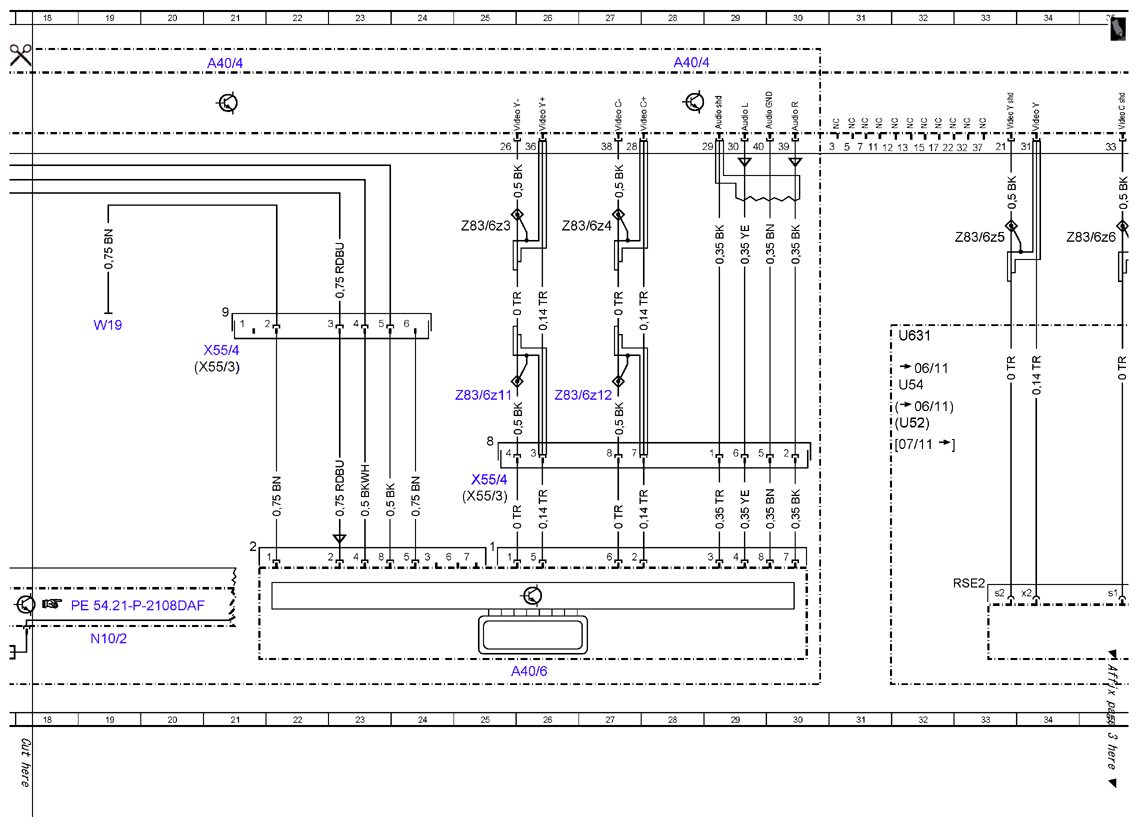

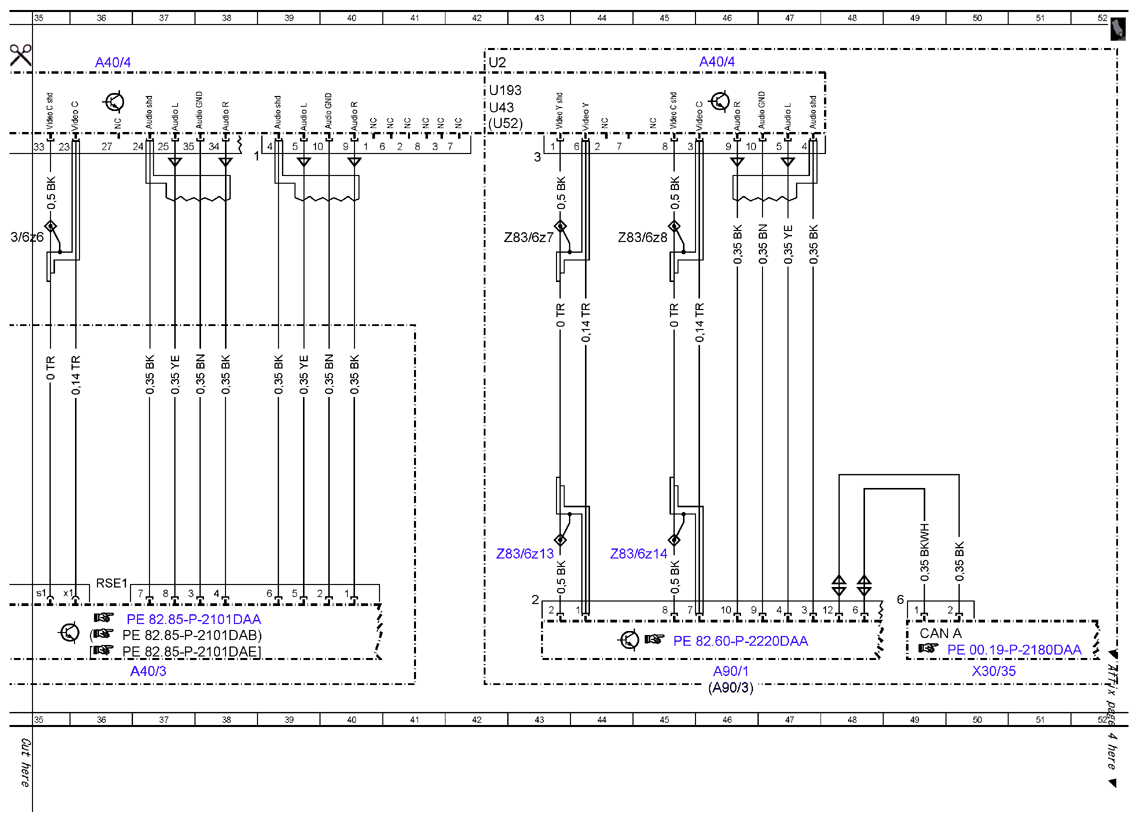

Wiring diagram for DVD player control unit - PE82.60-P-2104-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to 3/1/15 with CODE 864 (Rear compartment entertainment package) Control unit A40/4
| Code: | Designation: | Position: |
|---|---|---|

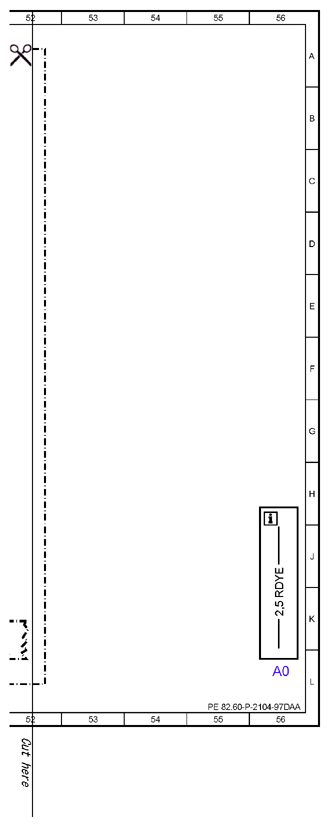

| A0 | Color code key | 56L |
| A40/3 | COMAND control unit | 37L |
| A40/4 | DVD player | 5A |
| A40/4 | DVD player | 12A |
| A40/4 | DVD player | 21A |
| A40/4 | DVD player | 28A |
| A40/4 | DVD player | 36A |
| A40/4 | DVD player | 46A |
| A40/5 | Left rear display | 7L |
| A40/6 | Right rear display | 26L |
| A90/1 | TV tuner (analog/digital) | 46L |
| A90/3 | TV digital tuner | 46L |
| CAN A | Telematics CAN | 15K |
| CAN A | Telematics CAN | 12K |
| CAN A | Telematics CAN | 14K |
| CAN A | Telematics CAN | 49K |
| N10/2 | Rear SAM control unit with fuse and relay module | 19K |
| N10/2f86 | Fuse 86 | 17L |
| U12 | Valid for left-hand drive vehicles | 1A |
| U13 | Valid for right-hand drive vehicles | 1A |
| U193 | Valid for TV and Video | 42B |
| U2 | Valid for all except USA | 42A |
| U43 | Valid for ECE | 42B |
| U52 | Valid for Japan | 42B |
| U52 | Valid for Japan | 32G |
| U54 | Valid for all except Japan | 32F |
| U631 | Valid for COMAND | 32F |
| W18 | Left front seat crossmember ground point | 2E |
| W18 | Left front seat crossmember ground point | 13E |
| W19 | Right front seat crossmember ground point | 19E |
| X30/35 | Telematics CAN voltage distributor electrical connector | 14L |
| X30/35 | Telematics CAN voltage distributor electrical connector | 50L |
| X55/3 | Driver seat connector block | 3H |
| X55/3 | Driver seat connector block | 8F |
| X55/3 | Driver seat connector block | 21F |
| X55/3 | Driver seat connector block | 25H |
| X55/4 | Front passenger seat connector block | 25H |
| X55/4 | Front passenger seat connector block | 21F |
| X55/4 | Front passenger seat connector block | 8F |
| X55/4 | Front passenger seat connector block | 2H |
| Z53/29 | Rear entertainment system circuit 30 connector sleeve | 16E |
| Z6/30 | ME-SFI [ME] diagnosis connector sleeve | 9D |
| Z83/6z1 | Screening end connector sleeve | 3D |
| Z83/6z10 | Screening end connector sleeve | 4G |
| Z83/6z11 | Screening end connector sleeve | 25G |
| Z83/6z12 | Screening end connector sleeve | 27G |
| Z83/6z13 | Screening end connector sleeve | 43J |
| Z83/6z14 | Screening end connector sleeve | 45J |
| Z83/6z2 | Screening end connector sleeve | 4D |
| Z83/6z3 | Screening end connector sleeve | 25D |
| Z83/6z4 | Screening end connector sleeve | 27D |
| Z83/6z5 | Screening end connector sleeve | 33D |
| Z83/6z6 | Screening end connector sleeve | 35D |
| Z83/6z7 | Screening end connector sleeve | 43D |
| Z83/6z8 | Screening end connector sleeve | 45D |
| Z83/6z9 | Screening end connector sleeve | 3G |
