Windshield wiper system, function - GF82.30-P-0001GN
MODEL 166 as of model year 2016
MODEL 292

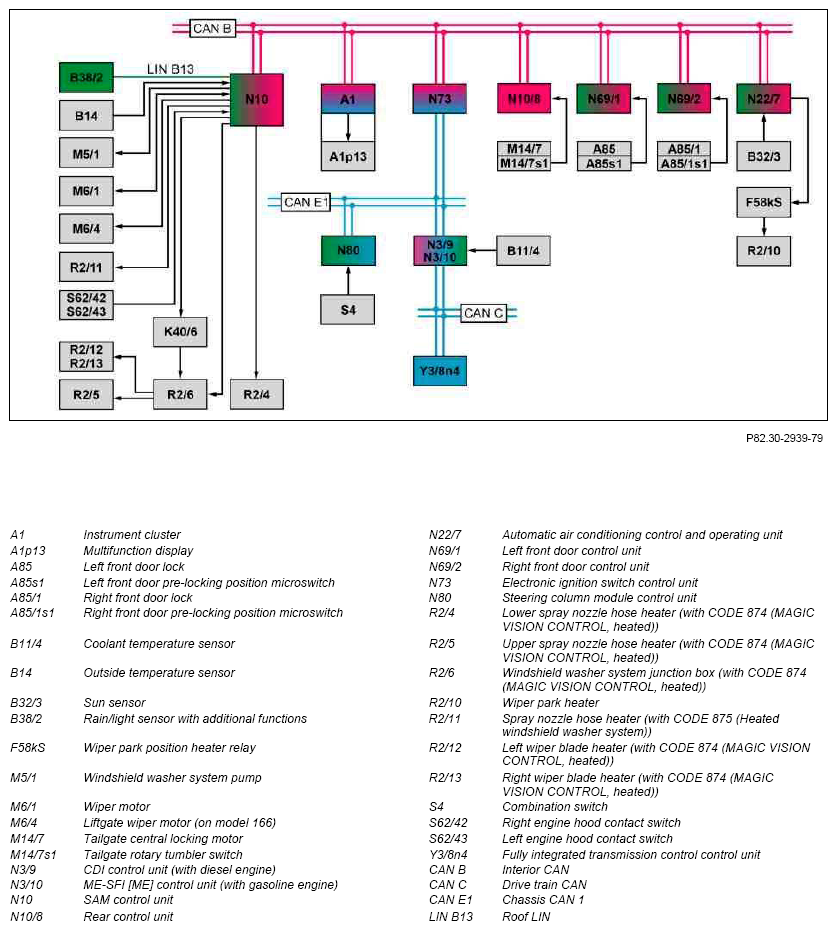

Block diagram
Windshield wiper system, general
The windshield wiper system controls the wiping and washing of the windshield and rear window.
The windshield wiper system comprises the following subfunctions, which are described in separate documents:
- Windshield wiper, function
- Windshield washer, function
- Rear window wiper system, function
- Heating wiper support, function
- Spray nozzle hose heater, function (with CODE 874 (MAGIC VISION CONTROL, heated))
- Wiper blade heater, function (with CODE 874 (MAGIC VISION CONTROL, heated))
| Windshield wiper, function | GF82.30-P-3004GN | |
| Windshield washer, function | GF82.35-P-3002GN | |
| Rear window wiper system, function | MODEL 166 as of model year 2016 | GF82.30-P-2400GN |
| Heating wiper support, function | GF82.30-P-2003GN | |
| Wiper blade heater, function | GF82.30-P-2004GN | |
| Overview of system components for windshield wiper system | GF82.30-P-9996GN | |
| Spray nozzle hose heater function | MODEL 166 as of model year 2016 with CODE 874 (MAGIC VISION CONTROL, heated) MODEL 292 with CODE 874 (MAGIC VISION CONTROL, heated) |
GF82.35-P-3009GN |
