| A0 |
Color code key |
56A |
| A2 |
Radio |
32L |
| A2 |
Radio |
32L |
| A2/56 |
Radio with auto pilot system |
31L |
| A40/11 |
Multifunction camera |
44L |
| A40/3 |
COMAND control unit |
36L |
| Code 238 |
Active Lane Keeping Assist |
42G |
| Code 386 |
Mobile phone |
27G |
| Code 476 |
Automatic lane detection |
42G |
| Code 509 |
Navigation module |
53J |
| Code 513 |
Speed Limit Assist |
42H |
| Code 608 |
Adaptive Highbeam Assist |
42H |
| Code B03 |
ECO start/stop function |
1K |
| Code B03 |
ECO start/stop function |
5A |
| Code B54 |
COM module |
23G |

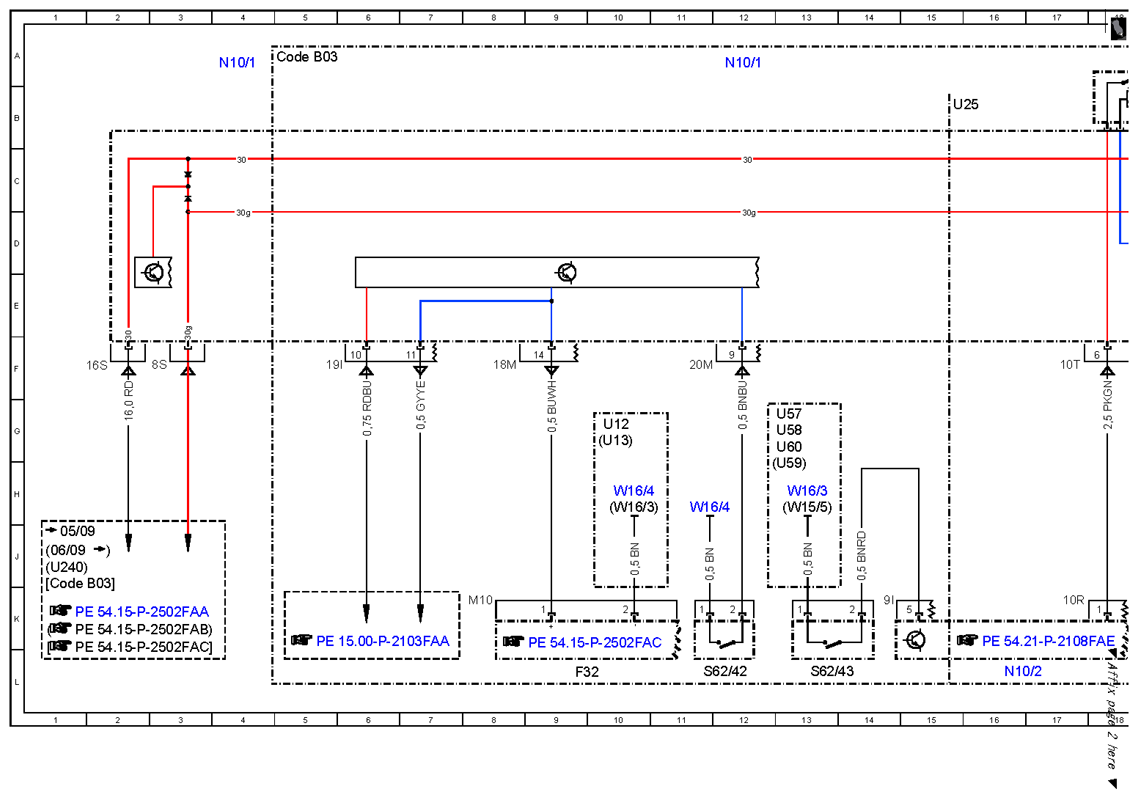

| F32 |
Front electrical prefuse box |
9L |

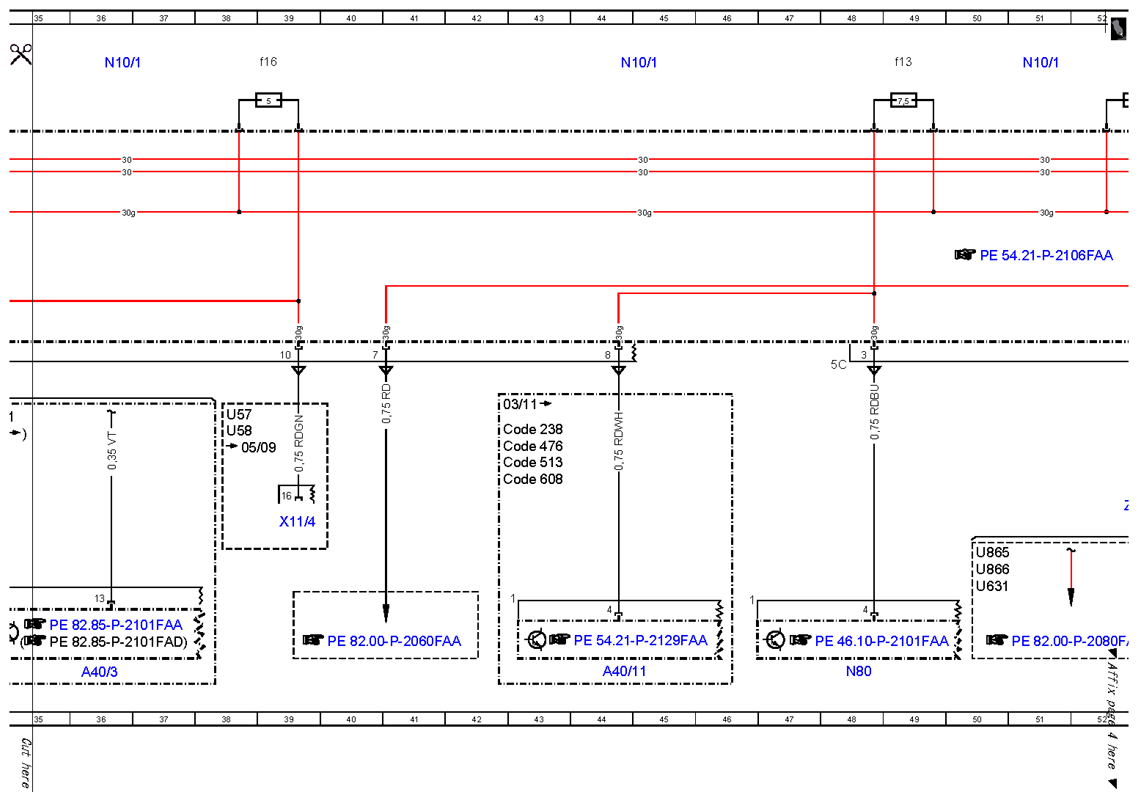

| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
21A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
51A |
| N10/1f11 |
Fuse 11 |
52A |
| N10/1f13 |
Fuse 13 |
49A |
| N10/1f16 |
Fuse 16 |
39A |
| N10/1f18 |
Fuse 18 |
23A |
| N10/1kQ |
Oil cooler fan motor relay |
18A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
16L |

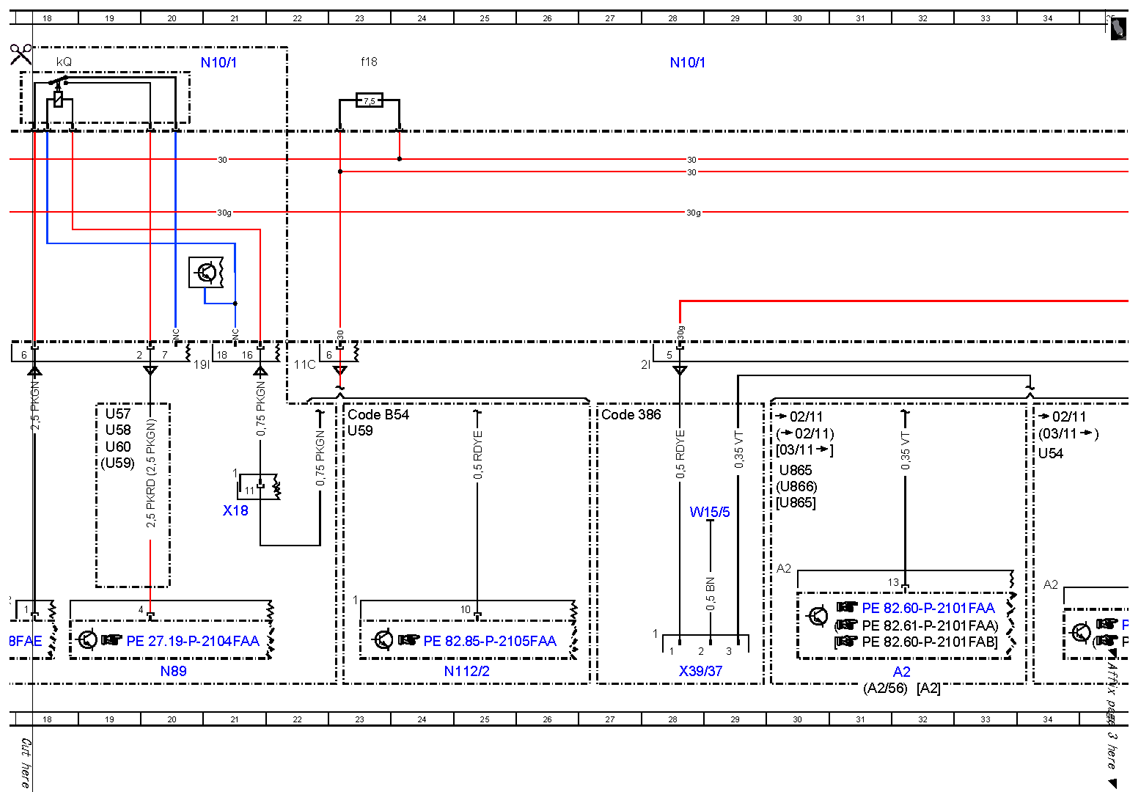

| N112/2 |
Telematics services communication module |
25L |
| N80 |
Steering column module control unit |
48L |
| N89 |
Transmission oil auxiliary pump control unit |
20L |
| S62/42 |
Right engine hood contact switch |
12L |
| S62/43 |
Left engine hood contact switch |
13L |
| U12 |
Valid for left-hand drive vehicles |
10G |
| U13 |
Valid for right-hand drive vehicles |
10G |
| U240 |
Valid for all except ECO start/stop function |
1J |
| U25 |
Valid for automatic transmission |
15B |
| U54 |
Valid for all except Japan |
34G |
| U57 |
Valid for model 204.2 |
38G |
| U57 |
Valid for model 204.2 |
13G |
| U57 |
Valid for model 204.2 |
19G |
| U58 |
Valid for model 204.0 |
38G |
| U58 |
Valid for model 204.0 |
13G |
| U58 |
Valid for model 204.0 |
19G |
| U59 |
Valid for model 204.9 |
12H |
| U59 |
Valid for model 204.9 |
19H |
| U59 |
Valid for model 204.9 |
23G |
| U60 |
Valid for model 204.3 |
13G |
| U60 |
Valid for model 204.3 |
19G |
| U631 |
Valid for COMAND |
50K |
| U865 |
Valid for Audio 20 |
30H |
| U865 |
Valid for Audio 20 |
30H |
| U865 |
Valid for Audio 20 |
50J |
| U866 |
Valid for Audio 50 |
30H |
| U866 |
Valid for Audio 50 |
50J |
| W15/5 |
Left front footwell ground point |
28H |
| W15/5 |
Left front footwell ground point |
13H |
| W16/3 |
Left major assembly compartment ground point |
10H |
| W16/3 |
Left major assembly compartment ground point |
13H |
| W16/4 |
Right wheelhouse ground point |
10H |
| W16/4 |
Right wheelhouse ground point |
11H |
| X11/4 |
Diagnostic connector |
39J |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
21H |
| X39/37 |
Mobile phone electrical connector |
28L |

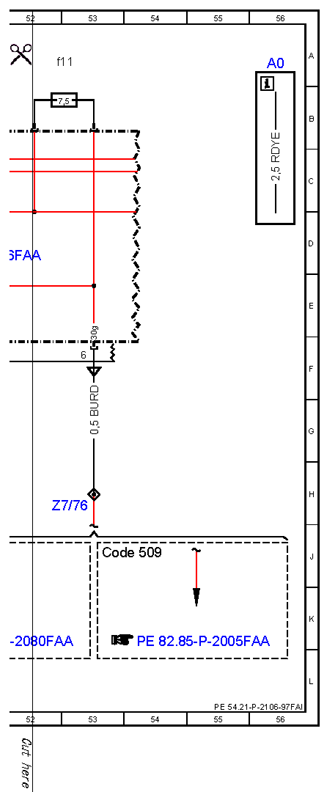

| Z7/76 |
Cockpit circuit 30G connector sleeve |
53H |
