| A0 |
Color code key |
80L |
| A2 |
Radio |
21L |
| A2 |
Radio |
21L |

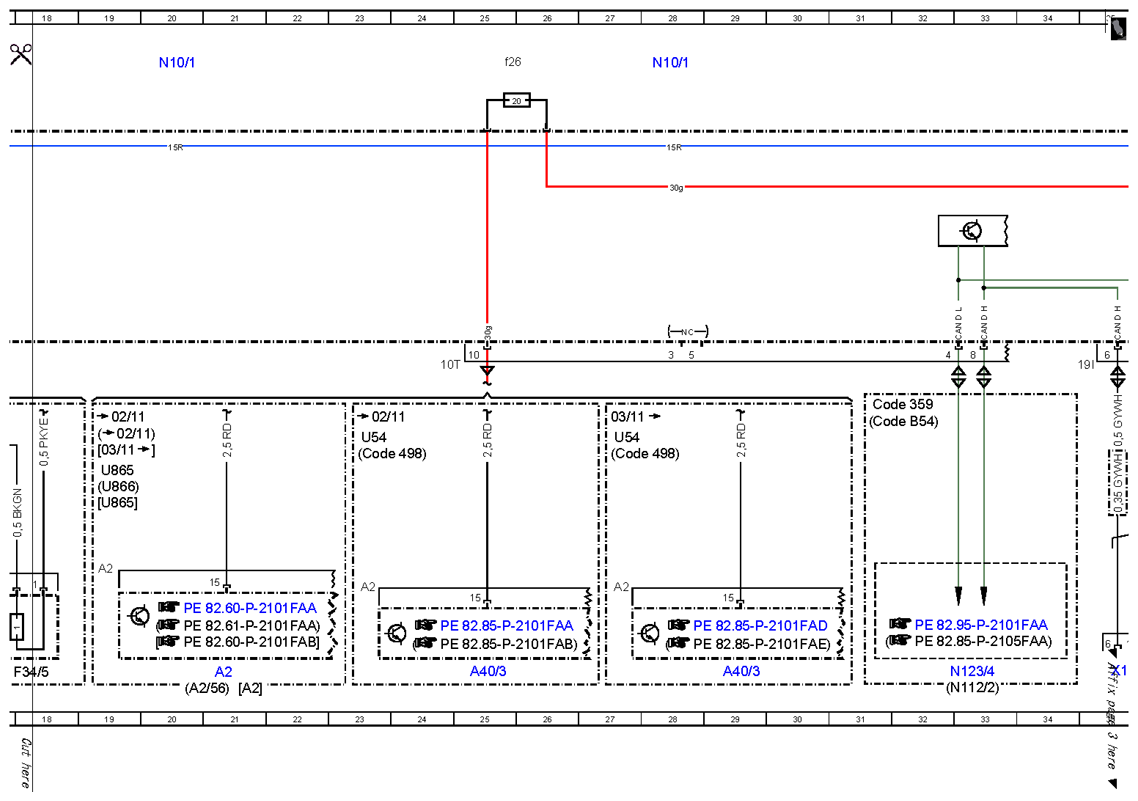

| A2/56 |
Radio with auto pilot system |
20L |
| A40/3 |
COMAND control unit |
25L |
| A40/3 |
COMAND control unit |
29L |
| A50/3 |
Electronic Toll Collection control unit |
15L |

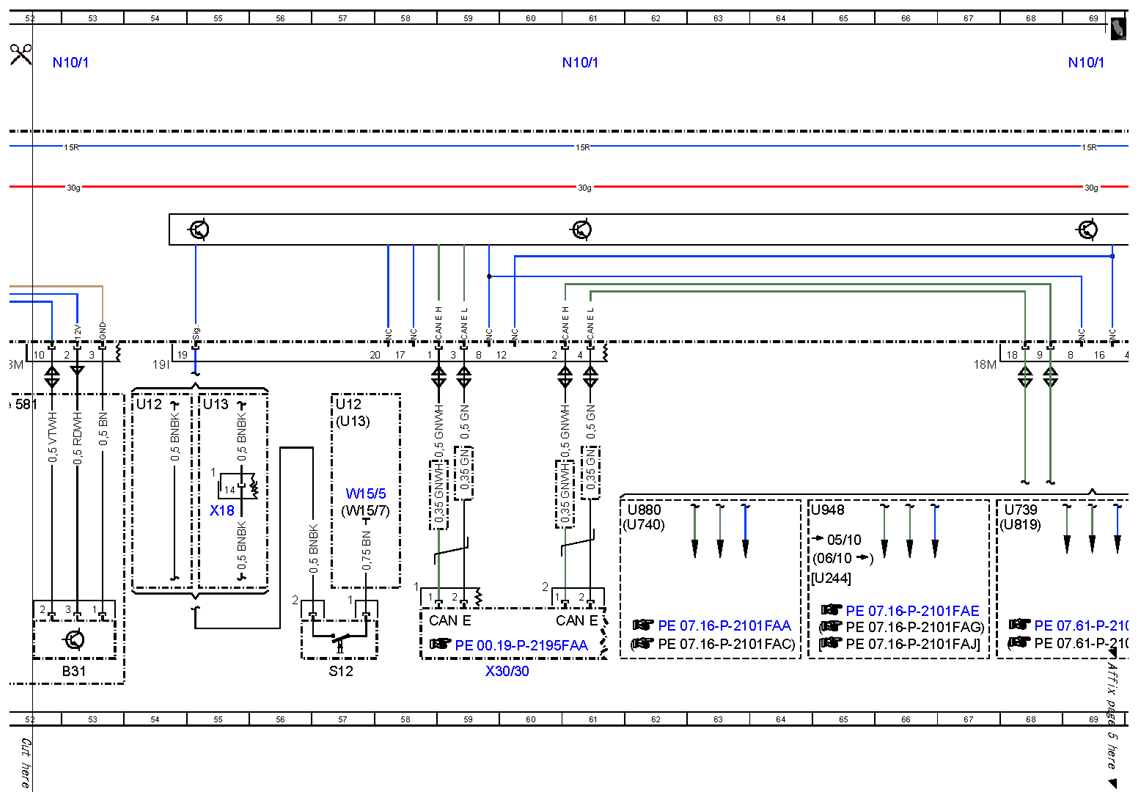

| B31 |
Emissions sensor |
53L |
| B48 |
Front passenger seat occupied recognition and ACSR |
7L |
| CAN E |
Chassis CAN |
59K |
| CAN E |
Chassis CAN |
61K |
| Code 359 |
TELEAID emergency call system |
31G |
| Code 498 |
Japan version |
23G |
| Code 498 |
Japan version |
27G |
| Code 498 |
Japan version |
13G |
| Code 580 |
Automatic air conditioning |
36G |
| Code 580 |
Automatic air conditioning |
48G |
| Code 581 |
Comfort automatic air conditioning |
40G |
| Code 581 |
Comfort automatic air conditioning |
51G |
| Code 581 |
Comfort automatic air conditioning |
77G |
| Code 581 |
Comfort automatic air conditioning |
48G |
| Code B54 |
COM module |
31G |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
5G |
| E13/1 |
Glove box lamp |
11L |
| F34/5 |
Electronic Toll Collection preinstallation electrical fuse |
18L |
| LIN B8 |
Climate control LIN |
50F |

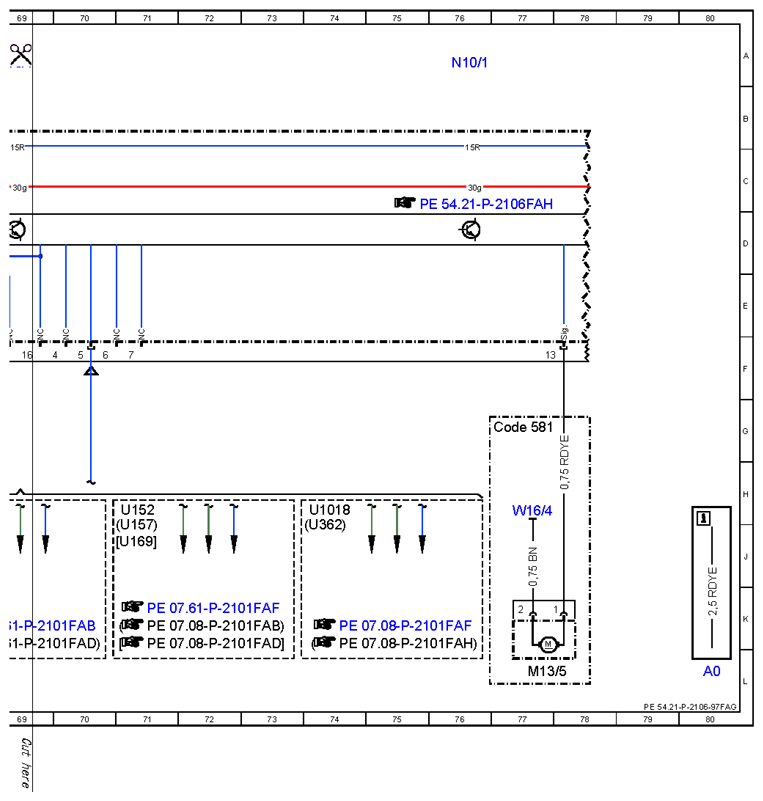

| M13/5 |
Coolant circulation pump |
77L |

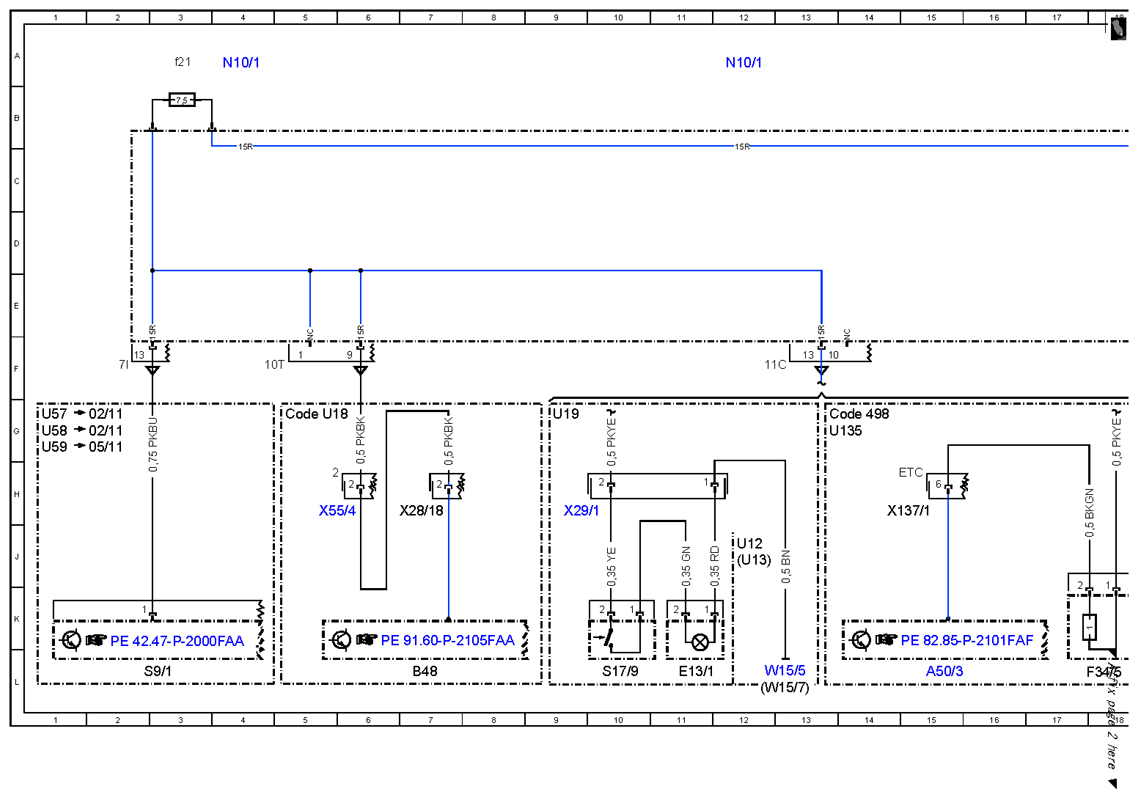

| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
45A |
| N10/1 |
Front SAM control unit with fuse and relay module |
61A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
69A |
| N10/1 |
Front SAM control unit with fuse and relay module |
76A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1f21 |
Fuse 21 |
3A |
| N10/1f26 |
Fuse 26 |
25A |
| N112/2 |
Telematics services communication module |
33L |
| N123/4 |
Emergency call system control unit |
33L |

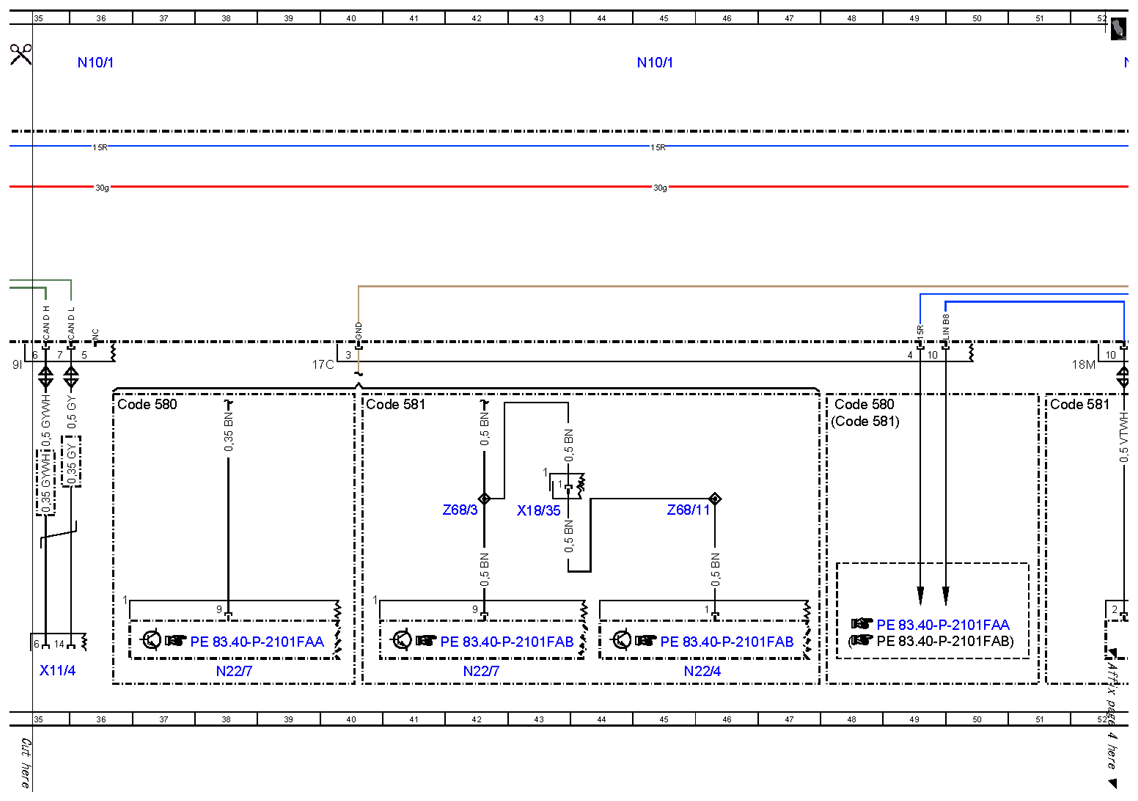

| N22/4 |
Rear automatic air conditioning operating unit |
45L |
| N22/7 |
Automatic air conditioning control and operating unit |
38L |
| N22/7 |
Automatic air conditioning control and operating unit |
42L |
| S12 |
Parking brake indicator switch |
57L |
| S17/9 |
Glove box lamp switch |
10L |
| S9/1 |
Stop lamp switch |
3L |
| U1018 |
Valid for gasoline engine 276 |
74H |
| U12 |
Valid for left-hand drive vehicles |
12J |
| U12 |
Valid for left-hand drive vehicles |
54G |
| U12 |
Valid for left-hand drive vehicles |
57G |
| U13 |
Valid for right-hand drive vehicles |
12J |
| U13 |
Valid for right-hand drive vehicles |
55G |
| U13 |
Valid for right-hand drive vehicles |
57G |
| U135 |
Valid for Electronic Toll Collection |
13G |
| U152 |
Valid for gasoline engine 156 |
71H |
| U157 |
Valid for combustion engine 272 DE |
70J |
| U169 |
Valid for gasoline engine 271 DE |
70J |
| U19 |
Valid for standard equipment |
9G |
| U244 |
Valid for BlueTEC |
64J |
| U362 |
Valid for gasoline engine 274 |
73J |
| U54 |
Valid for all except Japan |
23G |
| U54 |
Valid for all except Japan |
27G |
| U57 |
Valid for model 204.2 |
1G |
| U58 |
Valid for model 204.0 |
1G |
| U59 |
Valid for model 204.9 |
1G |
| U739 |
Valid for gasoline engine 271 continuous fuel injection system (electronic) |
68H |
| U740 |
Valid for diesel engine 646 |
61J |
| U819 |
Valid for gasoline engine 272 |
67J |
| U865 |
Valid for Audio 20 |
19H |
| U865 |
Valid for Audio 20 |
19H |
| U866 |
Valid for Audio 50 |
19H |
| U880 |
Valid for diesel engine 642 |
62H |
| U948 |
Valid for diesel engine 651 |
64H |
| W15/5 |
Left front footwell ground point |
13L |
| W15/5 |
Left front footwell ground point |
57H |
| W15/7 |
Right front footwell ground point |
12L |
| W15/7 |
Right front footwell ground point |
57H |
| W16/4 |
Right wheelhouse ground point |
77H |
| X11/4 |
Diagnostic connector |
35L |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
15H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
55H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
43H |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
7H |
| X29/1 |
Glove compartment electrical connector |
9H |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
59L |
| X55/4 |
Front passenger seat connector block |
6H |
| Z68/11 |
Rear air conditioning LIN bus ground line connector sleeve |
45H |
| Z68/3 |
Vehicle interior LIN bus ground line connector sleeve |
42H |
