Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97FAE

Code: Designation: Position:
A0 Color code key 80L
A89 DISTRONIC electric controller unit 37L
A91/1 Electrohydraulic power steering 40L
Code 494 USA version 39H
Code 498 Japan version 28K
Code B03 ECO start/stop function 1K
M33 Electric air pump 23L
M33 Electric air pump 29L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 14A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 29A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 45A
N10/1 Front SAM control unit with fuse and relay module 52A
N10/1 Front SAM control unit with fuse and relay module 61A
N10/1 Front SAM control unit with fuse and relay module 69A
N10/1f24 Fuse 24 7B
N10/1f32 Fuse 32 27B
N10/1f35 Fuse 35 44B
N10/1f36 Fuse 36 6B
N10/1kM Starter circuit 50 relay 11A
N10/1kP Secondary air injection relay 27A
N10/2 Rear SAM control unit with fuse and relay module 60L
N118 Fuel pump control unit 51L
N118 Fuel pump control unit 56L
N3/10 ME-SFI [ME] control unit 26L
N3/10 ME-SFI [ME] control unit 33L
N3/9 CDI control unit 8L
N30/4 Electronic Stability Program control unit 44L
U1018 Valid for gasoline engine 276 14G
U1018 Valid for gasoline engine 276 54G
U1018 Valid for gasoline engine 276 74H
U152 Valid for gasoline engine 156 20G
U152 Valid for gasoline engine 156 46G
U152 Valid for gasoline engine 156 71H
U157 Valid for combustion engine 272 DE 18G
U157 Valid for combustion engine 272 DE 50G
U157 Valid for combustion engine 272 DE 71J
U169 Valid for gasoline engine 271 DE 28G
U169 Valid for gasoline engine 271 DE 28J
U169 Valid for gasoline engine 271 DE 28J
U169 Valid for gasoline engine 271 DE 18G
U169 Valid for gasoline engine 271 DE 50G
U169 Valid for gasoline engine 271 DE 71J
U240 Valid for all except ECO start/stop function 1J
U244 Valid for BlueTEC 65J
U32 Valid for Canada 39H
U362 Valid for gasoline engine 274 11G
U362 Valid for gasoline engine 274 54G
U362 Valid for gasoline engine 274 74J
U411 Valid for diesel engine 651 with EHPS 39G
U412 Valid for electrohydraulic power steering 39G
U504 Valid for DISTRONIC 35G
U515 Valid for secondary air injection 28H
U54 Valid for all except Japan 28J
U57 Valid for model 204.2 42G
U58 Valid for model 204.0 42G
U59 Valid for model 204.9 39G
U59 Valid for model 204.9 42G
U60 Valid for model 204.3 42H
U739 Valid for gasoline engine 271 continuous fuel injection system (electronic) 50G
U739 Valid for gasoline engine 271 continuous fuel injection system (electronic) 68H
U740 Valid for diesel engine 646 9G
U740 Valid for diesel engine 646 17G
U740 Valid for diesel engine 646 62J
U740 Valid for diesel engine 646 58G
U819 Valid for gasoline engine 272 28G
U819 Valid for gasoline engine 272 18G
U819 Valid for gasoline engine 272 39H
U819 Valid for gasoline engine 272 50H
U819 Valid for gasoline engine 272 68J
U880 Valid for diesel engine 642 4G
U880 Valid for diesel engine 642 13G
U880 Valid for diesel engine 642 50H
U880 Valid for diesel engine 642 62H
U880 Valid for diesel engine 642 58G
U936 Valid for increased engine power 5J
U936 Valid for increased engine power 13G
U937 Valid for all except increased engine power 6J
U937 Valid for all except increased engine power 13G
U948 Valid for diesel engine 651 14G
U948 Valid for diesel engine 651 18G
U948 Valid for diesel engine 651 50H
U948 Valid for diesel engine 651 65H
U948 Valid for diesel engine 651 58G
U960 Valid for radiator shutters 4G
W11w2 Right cylinder bank ground point (engine) 30L
W16/3 Left major assembly compartment ground point 24H
W46 Air pump ground point 30L
X26 Interior and engine wiring harness electrical connector 15H
X26 Interior and engine wiring harness electrical connector 12H
X26 Interior and engine wiring harness electrical connector 13H
X26 Interior and engine wiring harness electrical connector 19H
X26 Interior and engine wiring harness electrical connector 17H
X26 Interior and engine wiring harness electrical connector 21H
X26/2 Engine wiring harness electrical connector 23H
X26/2 Engine wiring harness electrical connector 29H
X35/6 Instrument panel and module box electrical connector 40J
Y84 Radiator shutters actuator 5L
Z7/35z1 Circuit 87 M1e connector sleeve 12L
Z7/35z1 Circuit 87 M1e connector sleeve 16L
Z7/35z2 Circuit 87 M1e connector sleeve 19L
Z7/35z2 Circuit 87 M1e connector sleeve 19L
Z7/5z3 Circuit 87 connector sleeve 14L
Z7/5z3 Circuit 87 connector sleeve 13L
Z7/5z3 Circuit 87 connector sleeve 17L
Z7/5z3 Circuit 87 connector sleeve 16L
Z7/5z3 Circuit 87 connector sleeve 19L
Z7/98z3 Circuit 87 M3e connector sleeve 22L

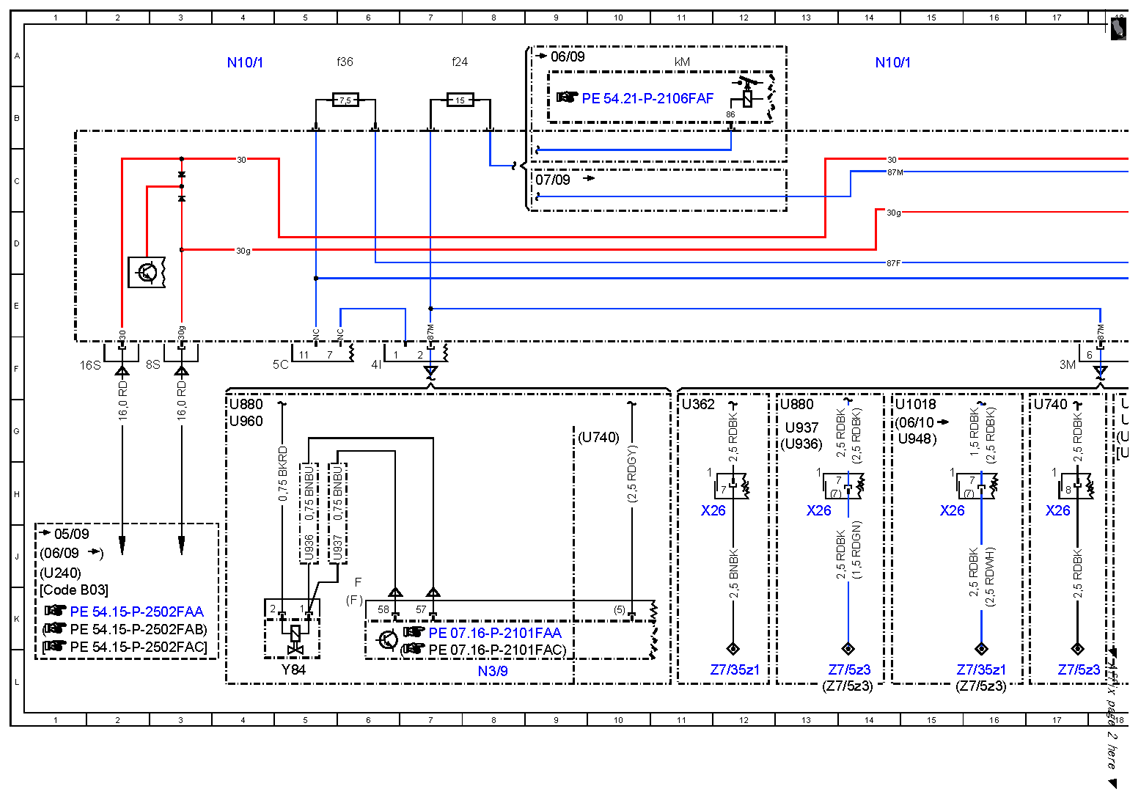

Fig 1: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (1 Of 5)
G10080485Courtesy of MERCEDES-BENZ USA

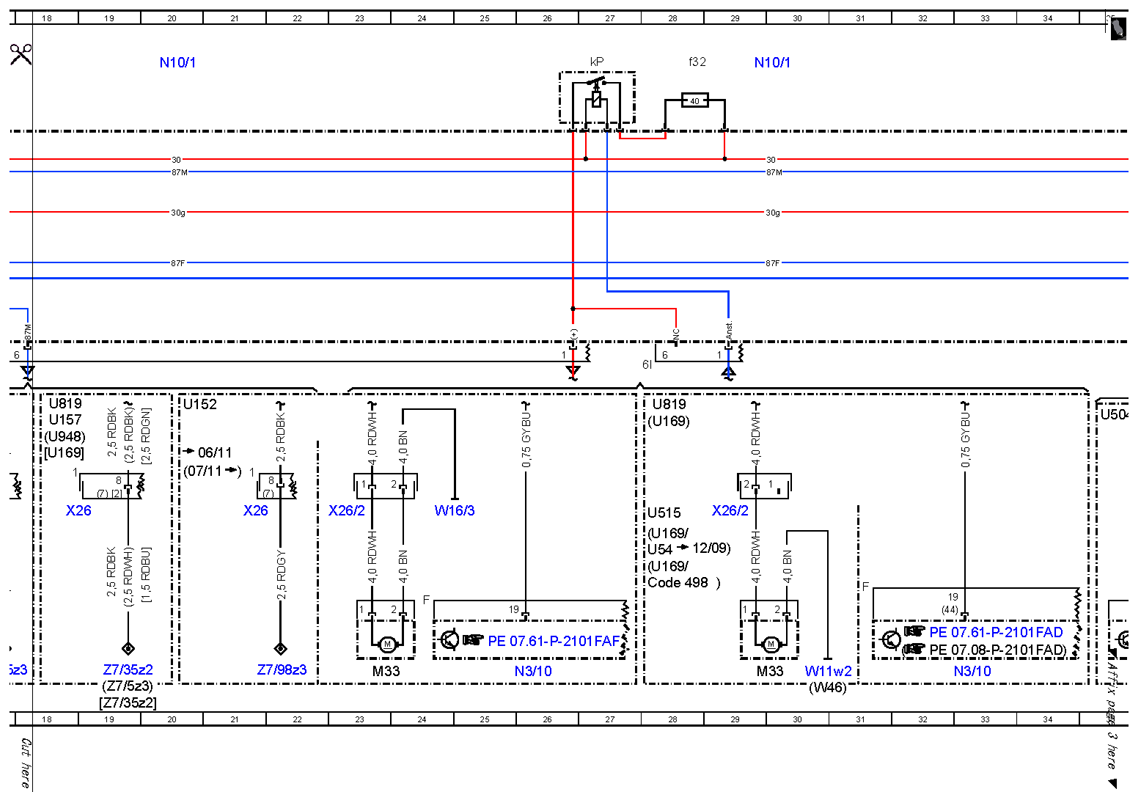

Fig 2: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (2 Of 5)
G10080486Courtesy of MERCEDES-BENZ USA

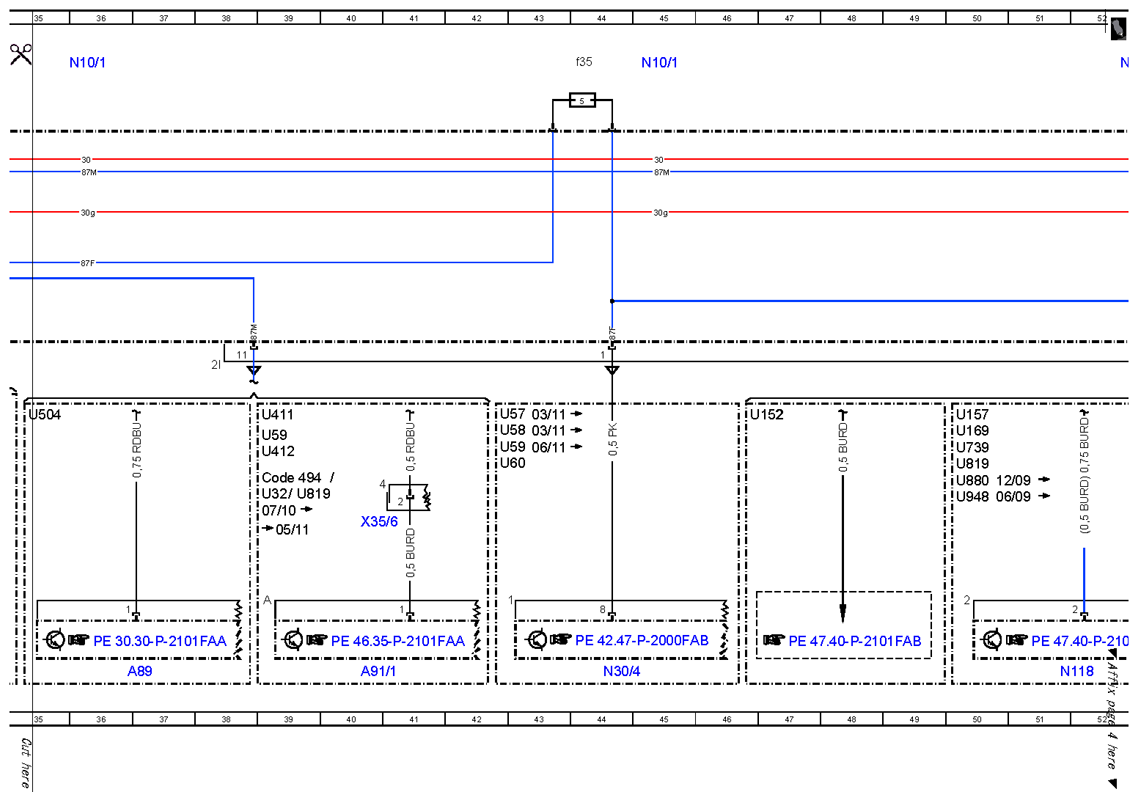

Fig 3: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (3 Of 5)
G10080487Courtesy of MERCEDES-BENZ USA

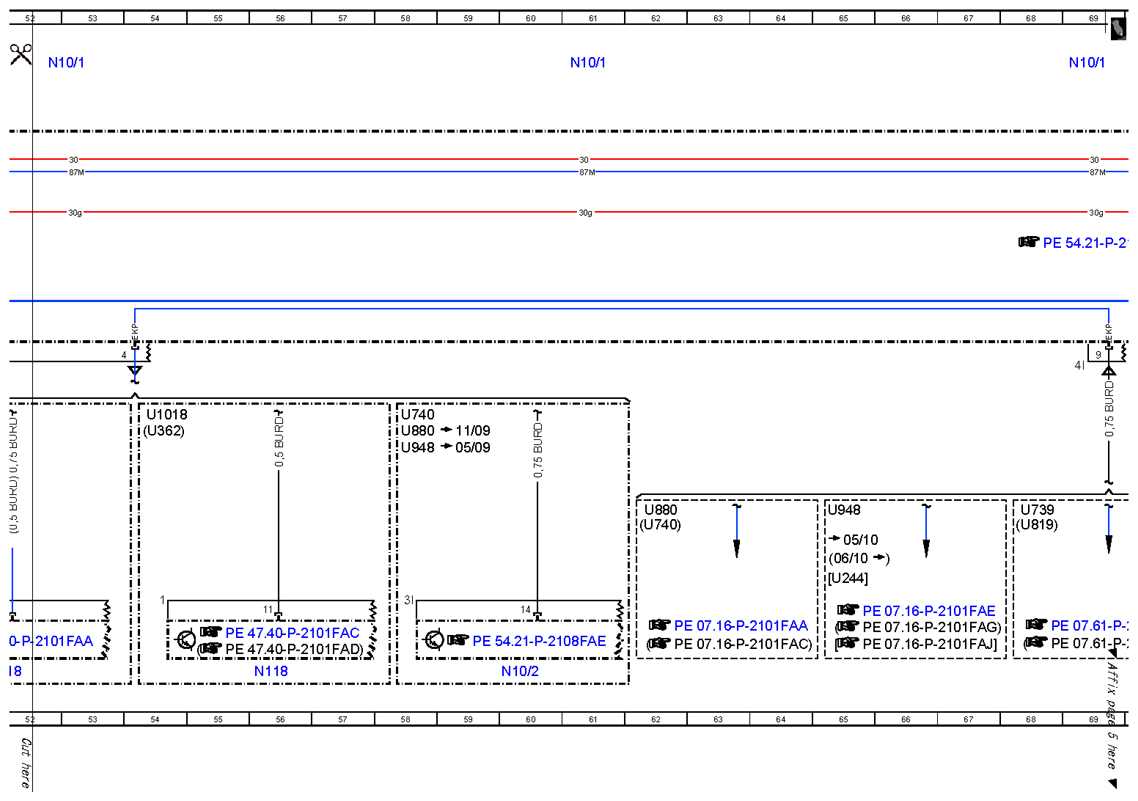

Fig 4: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (4 Of 5)
G10080488Courtesy of MERCEDES-BENZ USA

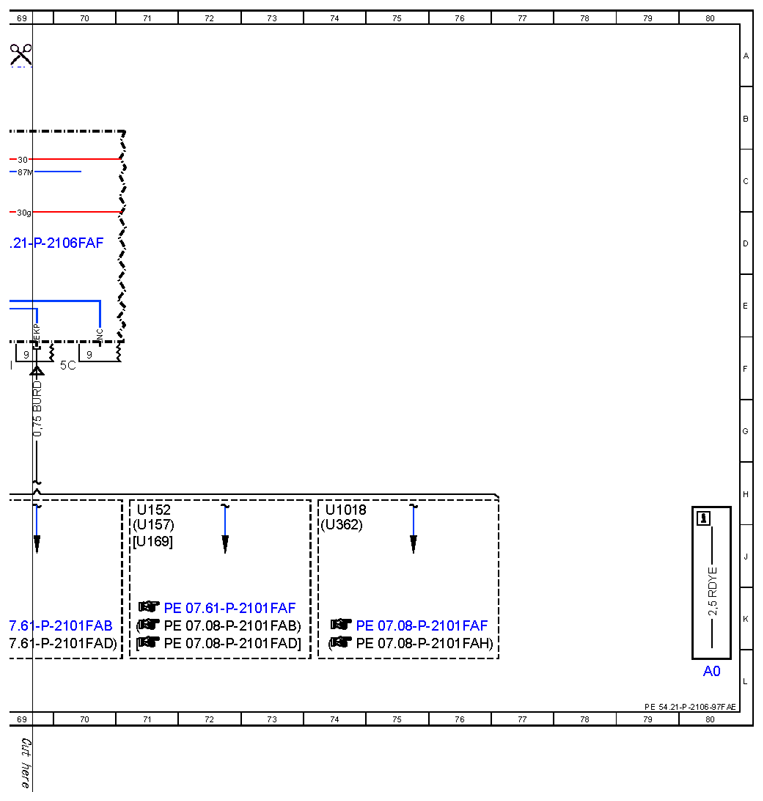

Fig 5: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (5 Of 5)
G10080489Courtesy of MERCEDES-BENZ USA
