Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97FAC

Code: Designation: Position:
A0 Color code key 64L
A80 Intelligent servo module for DIRECT SELECT 48L
Code 580 Automatic air conditioning 21H
Code 581 Comfort automatic air conditioning 21J
Code 929 Engine for ethanol fuel 32H
Code B03 ECO start/stop function 1J
M4/7 Combustion engine and air conditioning with integrated control fan motor 5L
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 29A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 44A
N10/1 Front SAM control unit with fuse and relay module 52A
N10/1 Front SAM control unit with fuse and relay module 59A
N10/1f15 Fuse 15 54A
N10/1f16 Fuse 16 43A
N10/1f22 Fuse 22 5A
N10/1f33 Fuse 33 26A
N10/1f34 Fuse 34 34A
N10/1f8 Fuse 8 56A
N10/1kN Engine circuit 87 relay 3A
N10/1kR Chassis circuit 87 relay 25A
N118 Fuel pump control unit 30L
N118 Fuel pump control unit 34L
N118 Fuel pump control unit 38L
N15/3 Electronic transmission control control unit 26L
N15/5 Electronic selector lever module control unit 42L
N2/10 Supplemental restraint system control unit 55L
N73 Electronic ignition switch control unit 52L
S16/2 Backup lamp switch 45L
U1018 Valid for gasoline engine 276 32G
U1018 Valid for gasoline engine 276 18H
U152 Valid for gasoline engine 156 15H
U157 Valid for combustion engine 272 DE 15J
U157 Valid for combustion engine 272 DE 28G
U169 Valid for gasoline engine 271 DE 15J
U169 Valid for gasoline engine 271 DE 28G
U19 Valid for standard equipment 35H
U24 Valid for manual transmission 44G
U240 Valid for all except ECO start/stop function 1J
U244 Valid for BlueTEC 9J
U25 Valid for automatic transmission 41G
U362 Valid for gasoline engine 274 18J
U362 Valid for gasoline engine 274 37G
U490 Valid for 7-speed automatic transmission 24G
U527 Valid for electronic transmission control 24G
U59 Valid for model 204.9 47G
U739 Valid for gasoline engine 271 continuous fuel injection system (electronic) 12H
U739 Valid for gasoline engine 271 continuous fuel injection system (electronic) 28H
U740 Valid for diesel engine 646 6J
U819 Valid for gasoline engine 272 12J
U819 Valid for gasoline engine 272 28H
U880 Valid for diesel engine 642 6H
U880 Valid for diesel engine 642 28H
U897 Valid for intelligent servo module for DIRECT SELECT 46G
U948 Valid for diesel engine 651 9H
U948 Valid for diesel engine 651 28J
W15/7 Right front footwell ground point 45H
Y3/8 Fully integrated transmission control control unit 26L
Z7/2 Circuit 87 connector sleeve, fuel quality sensor 33J

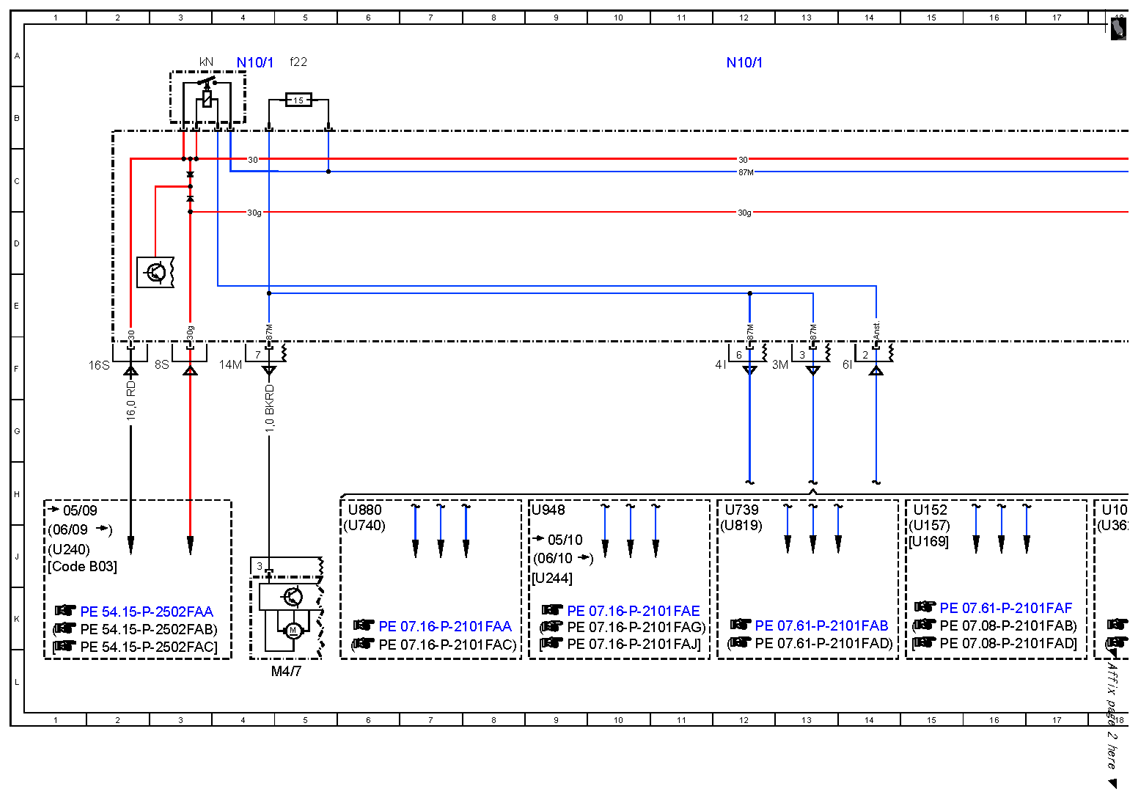

Fig 1: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (1 Of 4)
G10080476Courtesy of MERCEDES-BENZ USA

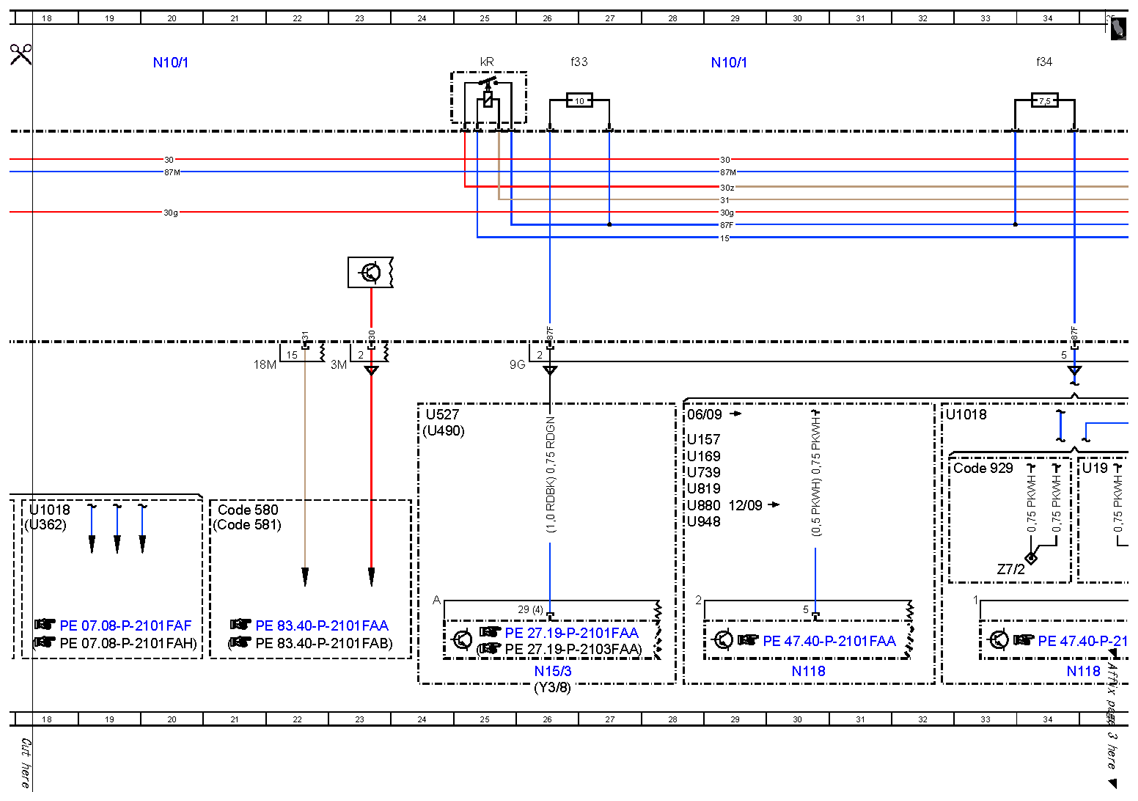

Fig 2: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (2 Of 4)
G10080477Courtesy of MERCEDES-BENZ USA

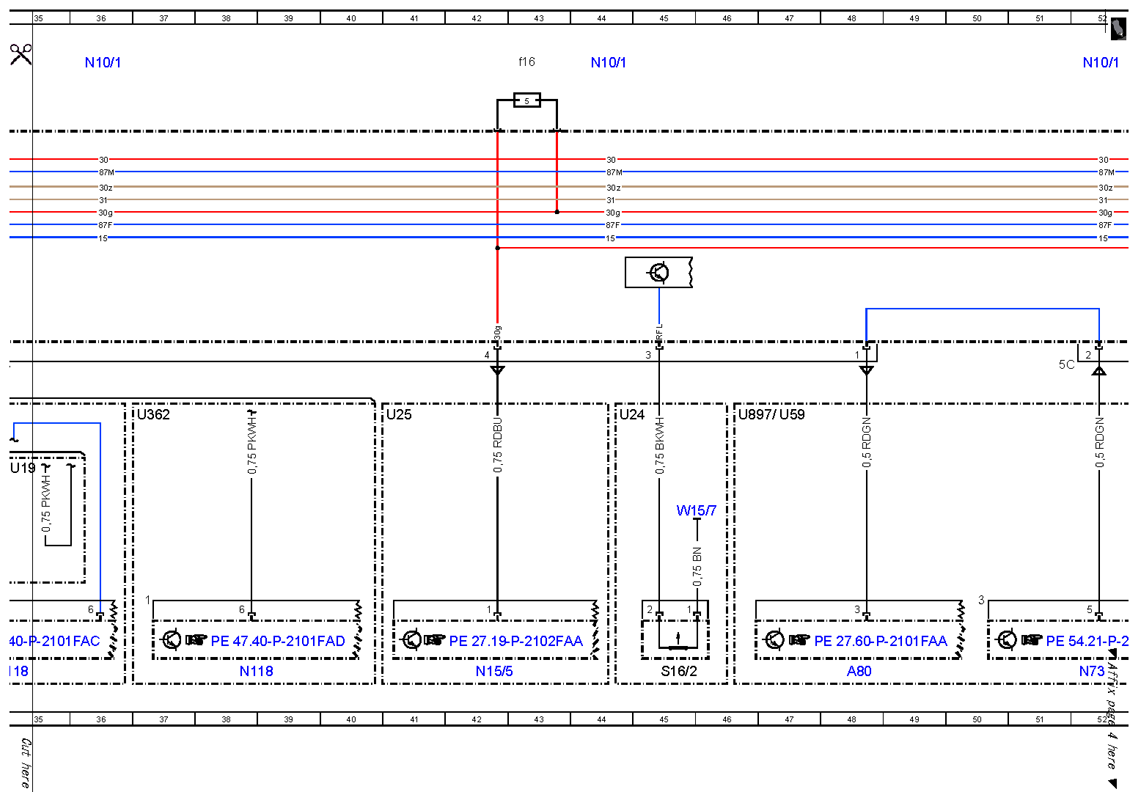

Fig 3: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (3 Of 4)
G10080478Courtesy of MERCEDES-BENZ USA

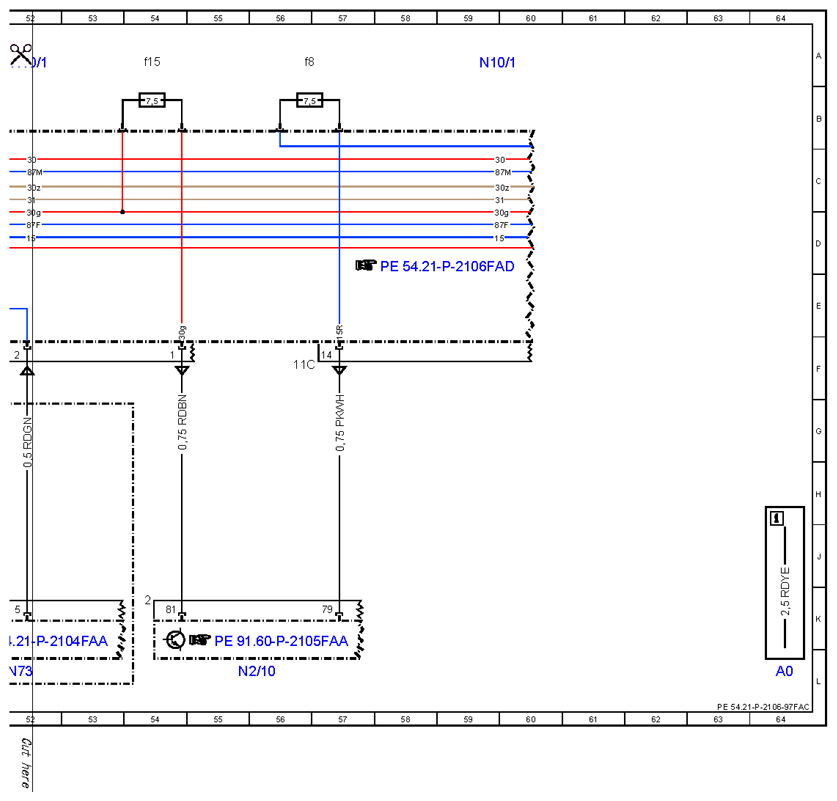

Fig 4: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (4 Of 4)
G10080479Courtesy of MERCEDES-BENZ USA
