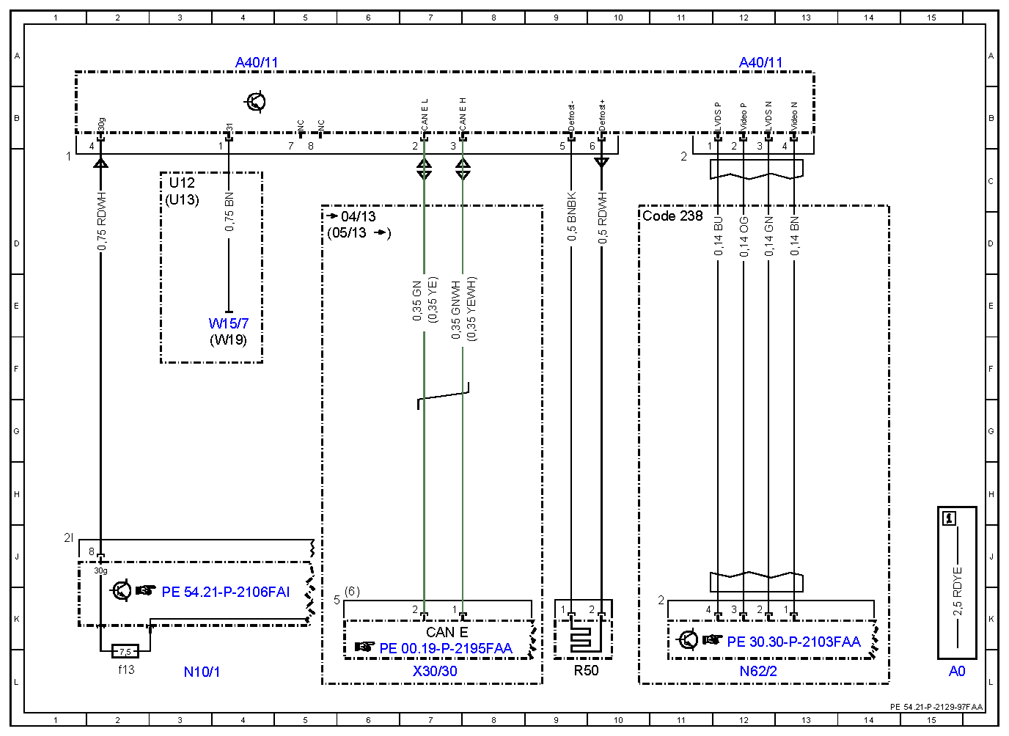

| A0 |
Color code key |
15L |
| A40/11 |
Multifunction camera |
4A |
| A40/11 |
Multifunction camera |
12A |
| CAN E |
Chassis CAN |
7K |
| Code 238 |
Active Lane Keeping Assist |
10D |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f13 |
Fuse 13 |
2L |
| N62/2 |
Video and radar sensor system control unit |
12L |
| R50 |
Auxiliary heater heating element |
9L |
| U12 |
Valid for left-hand drive vehicles |
3C |
| U13 |
Valid for right-hand drive vehicles |
3C |
| W15/7 |
Right front footwell ground point |
4E |
| W19 |
Right front seat crossmember ground point |
4F |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
