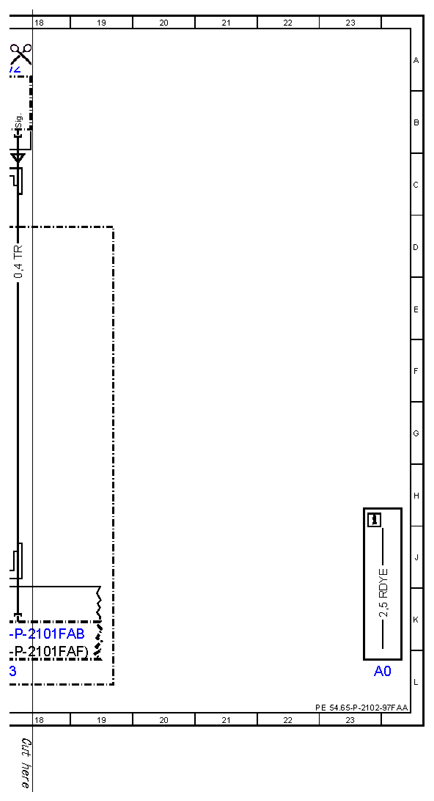

| A0 |
Color code key |
23L |

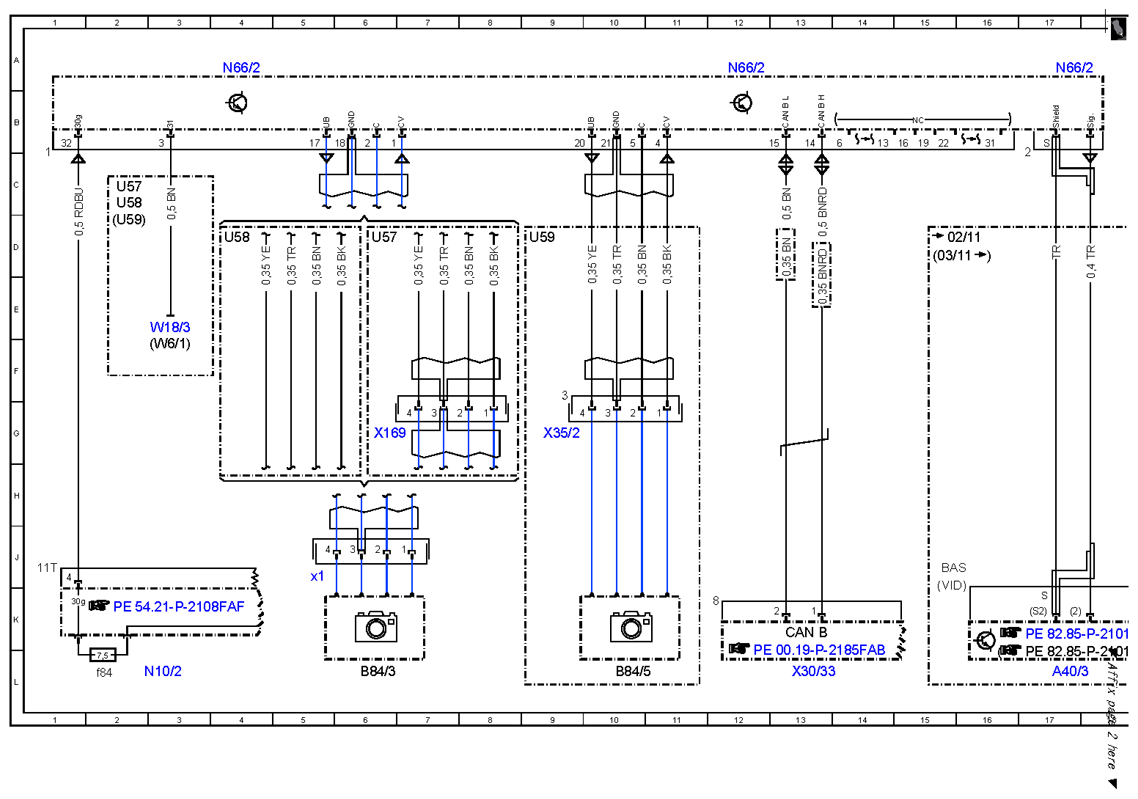

| A40/3 |
COMAND control unit |
17L |
| B84/3 |
Backup camera |
6L |
| B84/3x1 |
Backup camera electrical connector |
5J |
| B84/5 |
Passenger-side outside mirror camera |
10L |
| CAN B |
Interior CAN |
13K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f84 |
Fuse 84 |
2L |
| N66/2 |
Backup camera control unit |
12A |
| N66/2 |
Backup camera control unit |
4A |
| N66/2 |
Backup camera control unit |
17A |
| U57 |
Valid for model 204.2 |
2C |
| U57 |
Valid for model 204.2 |
6D |
| U58 |
Valid for model 204.0 |
2C |
| U58 |
Valid for model 204.0 |
4D |
| U59 |
Valid for model 204.9 |
2D |
| U59 |
Valid for model 204.9 |
9D |
| W18/3 |
Left front seat crossmember ground point 2 |
3E |
| W6/1 |
Left taillamp trunk ground point |
3F |
| X169 |
Backup camera electrical connector |
6G |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
13L |
| X35/2 |
Right front door electrical connector |
9G |
