| A0 |
Color code key |
56L |

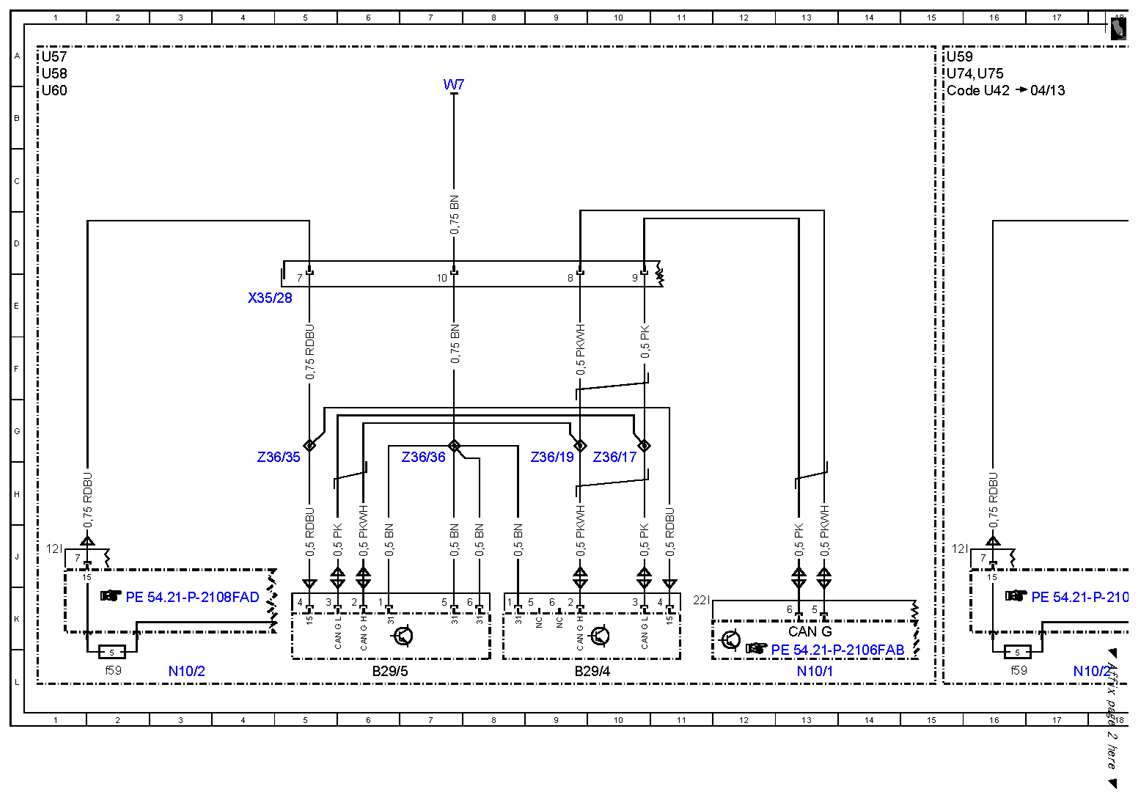

| B29/4 |
Left rear bumper intelligent radar sensor |
9L |
| B29/4 |
Left rear bumper intelligent radar sensor |
24L |
| B29/4 |
Left rear bumper intelligent radar sensor |
42L |
| B29/5 |
Right rear bumper intelligent radar sensor |
6L |
| B29/5 |
Right rear bumper intelligent radar sensor |
21L |
| B29/5 |
Right rear bumper intelligent radar sensor |
39L |
| CAN G |
Front end CAN |
13K |
| CAN G |
Front end CAN |
26K |
| CAN G |
Front end CAN |
31K |
| CAN G |
Front end CAN |
28K |
| CAN G |
Front end CAN |
44K |
| CAN G |
Front end CAN |
46K |
| CAN G |
Front end CAN |
49K |
| Code U42 |
BlueTEC diesel exhaust treatment |
15B |
| Code U42 |
BlueTEC diesel exhaust treatment |
33B |
| N10/1 |
Front SAM control unit with fuse and relay module |
13L |
| N10/1 |
Front SAM control unit with fuse and relay module |
31L |
| N10/1 |
Front SAM control unit with fuse and relay module |
49L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
17L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
35L |
| N10/2f59 |
Fuse 59 |
2L |
| N10/2f59 |
Fuse 59 |
16L |
| N10/2f59 |
Fuse 59 |
34L |
| U57 |
Valid for model 204.2 |
1A |
| U58 |
Valid for model 204.0 |
1A |
| U59 |
Valid for model 204.9 |
15A |
| U59 |
Valid for model 204.9 |
33A |
| U60 |
Valid for model 204.3 |
1B |
| U74 |
Valid for diesel engines |
15A |
| U74 |
Valid for diesel engines |
33A |
| U75 |
Valid for gasoline engines |
16A |
| U75 |
Valid for gasoline engines |
34A |
| W7 |
Right wheelhouse trunk ground point |
7B |
| W7 |
Right wheelhouse trunk ground point |
22B |
| W7 |
Right wheelhouse trunk ground point |
40B |

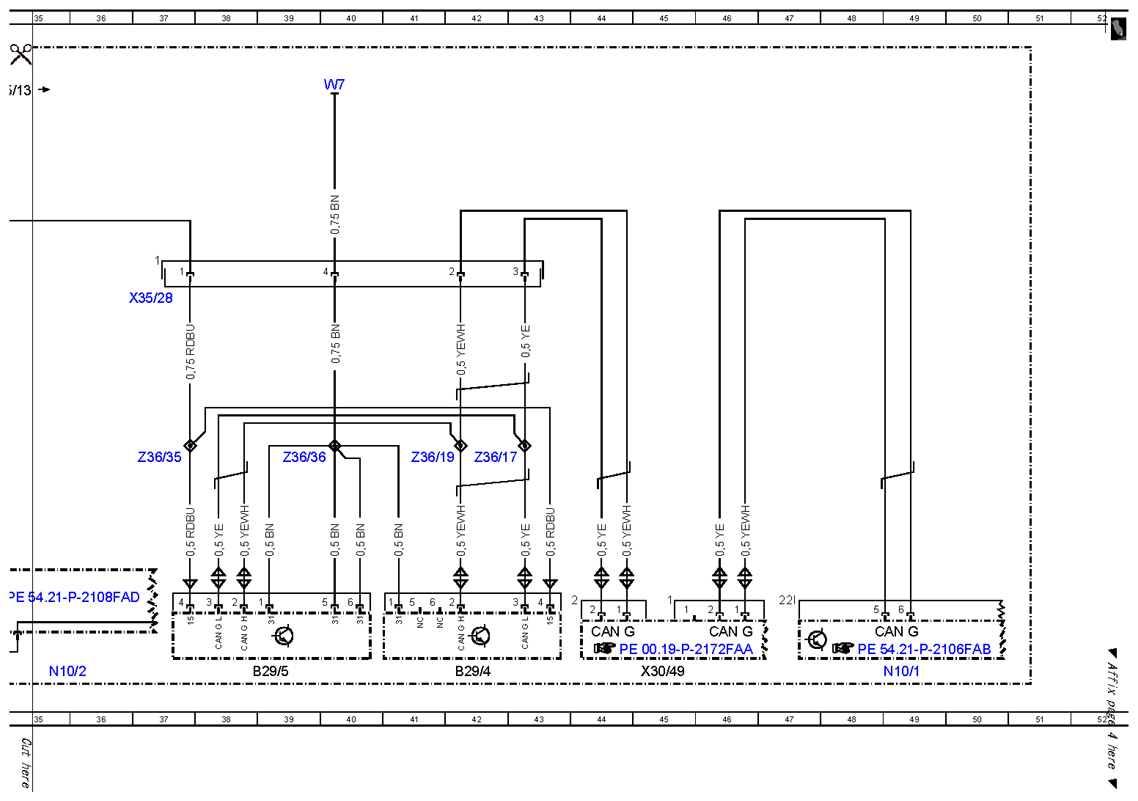

| X30/49 |
Front end CAN potential distributor electrical connector |
27L |
| X30/49 |
Front end CAN potential distributor electrical connector |
45L |

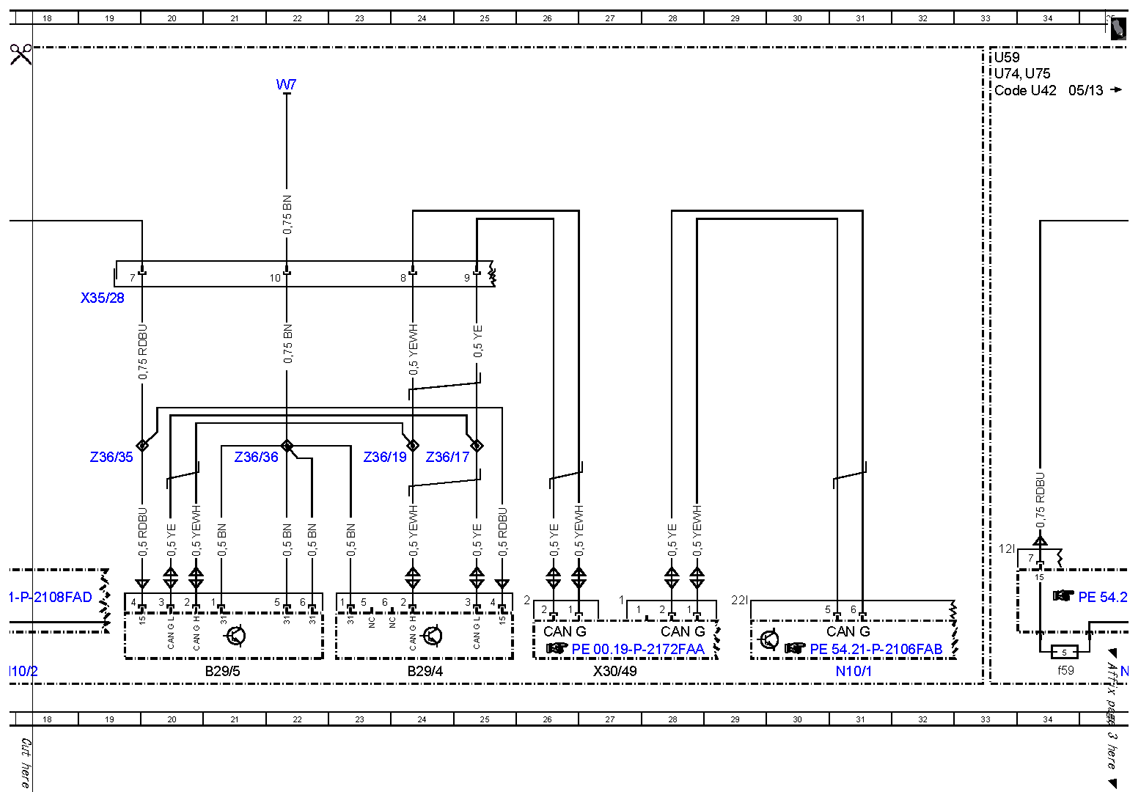

| X35/28 |
Rear bumper PARKTRONIC electrical connector |
4E |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
19E |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
37E |
| Z36/17 |
Rear sensor CAN connector sleeve |
10G |
| Z36/17 |
Rear sensor CAN connector sleeve |
24G |
| Z36/17 |
Rear sensor CAN connector sleeve |
42G |
| Z36/19 |
Rear sensor CAN connector sleeve |
9G |
| Z36/19 |
Rear sensor CAN connector sleeve |
23G |
| Z36/19 |
Rear sensor CAN connector sleeve |
41G |
| Z36/35 |
Rear radar sensors sensor power supply connector sleeve |
5G |
| Z36/35 |
Rear radar sensors sensor power supply connector sleeve |
19G |
| Z36/35 |
Rear radar sensors sensor power supply connector sleeve |
37G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
7G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
21G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
39G |
