| 1 |
Multifunction steering wheel button group, signal |
20D |
| 1 |
Multifunction steering wheel button group, signal |
13E |
| 1 |
Multifunction steering wheel button group, signal |
21B |
| 10 |
CRUISE CONTROL lever, signal |
14E |
| 10 |
CRUISE CONTROL lever, signal |
19E |
| 11 |
Steering column adjustment switch, status |
19F |
| 11 |
Steering column adjustment switch, status |
15E |
| 12 |
Warning message issue, request |
15H |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
11E |
| 14 |
Warning tone, request |
15H |
| 2 |
Circuit 15, status |
11D |
| 3 |
ATTENTION ASSIST, status |
13F |
| 4 |
Wheel speed, signal |
12D |
| 5 |
Steering angle, signal |
14E |
| 5 |
Steering angle, signal |
21F |
| 6 |
Time, message |
14F |
| 7 |
Rain/light sensor, status |
10J |
| 7 |
Rain/light sensor, status |
12G |
| 8 |
Audio operation, status |
11H |
| 8 |
Audio operation, status |
12G |
| 9 |
Combination switch, status |
18E |
| 9 |
Combination switch, status |
14E |

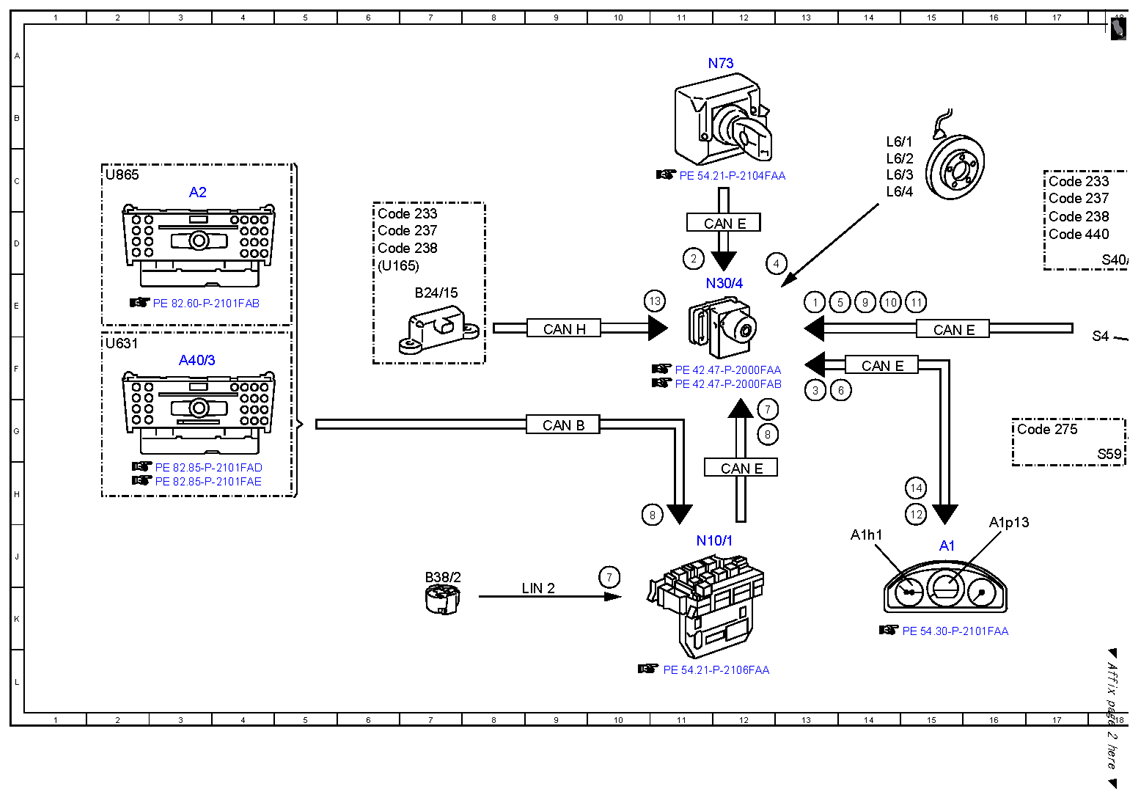

| A1 |
Instrument cluster |
15J |
| A1h1 |
Warning buzzer |
14J |
| A1p13 |
Multifunction display |
16J |
| A2 |
Radio |
3C |
| A40/3 |
COMAND control unit |
3F |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
7E |
| B38/2 |
Rain/light sensor |
7J |
| CAN B |
Interior CAN |
9G |
| CAN E |
Chassis CAN |
15E |
| CAN E |
Chassis CAN |
12D |
| CAN E |
Chassis CAN |
12H |
| CAN E |
Chassis CAN |
14F |
| CAN H |
Vehicle dynamics CAN |
9E |
| Code 233 |
DISTRONIC PLUS |
6D |
| Code 233 |
DISTRONIC PLUS |
17C |
| Code 237 |
Active Blind Spot Assist |
6D |
| Code 237 |
Active Blind Spot Assist |
17C |
| Code 238 |
Active Lane Keeping Assist |
6D |
| Code 238 |
Active Lane Keeping Assist |
17D |
| Code 275 |
Memory function (driver seat, steering column, outside mirror) |
16G |
| Code 440 |
Cruise control |
17D |
| L6/1 |
Left front axle rpm sensor |
14B |
| L6/2 |
Right front axle rpm sensor |
14C |
| L6/3 |
Left rear axle rpm sensor |
14C |
| L6/4 |
Right rear axle rpm sensor |
14C |
| LIN 2 |
Wiper/inside rearview mirror LIN |
9K |
| LIN E1 |
Steering LIN |
20C |
| N10/1 |
Front SAM control unit with fuse and relay module |
11J |

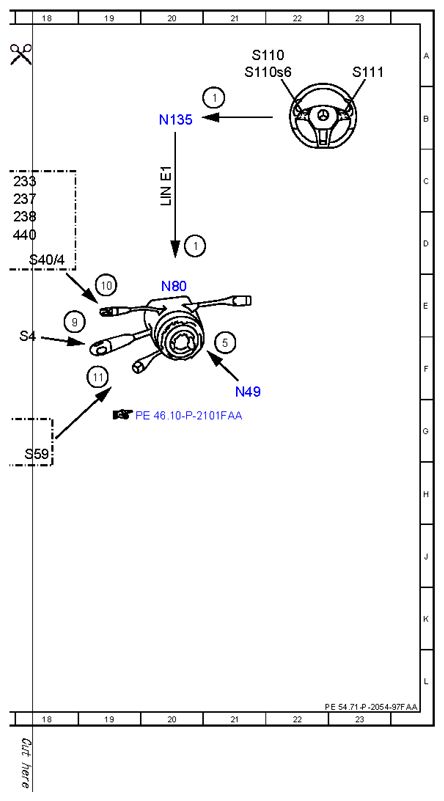

| N135 |
Steering wheel electronics |
20B |
| N30/4 |
Electronic Stability Program control unit |
12E |
| N49 |
Steering angle sensor |
21F |
| N73 |
Electronic ignition switch control unit |
12A |
| N80 |
Steering column module control unit |
20E |
| S110 |
Left multifunction steering wheel button group |
21A |
| S110s6 |
OK button |
21A |
| S111 |
Right multifunction steering wheel button group |
23A |
| S4 |
Combination switch |
18F |
| S40/4 |
Cruise control lever |
18D |
| S59 |
Steering column adjustment switch |
18G |
| U165 |
Valid for AMG |
6D |
| U631 |
Valid for COMAND |
2F |
| U865 |
Valid for Audio 20 |
2C |
