Remove/install crank window in rear door - AR72.12-P-1910NKA

MODEL 156, 176

Shown on MODEL 176

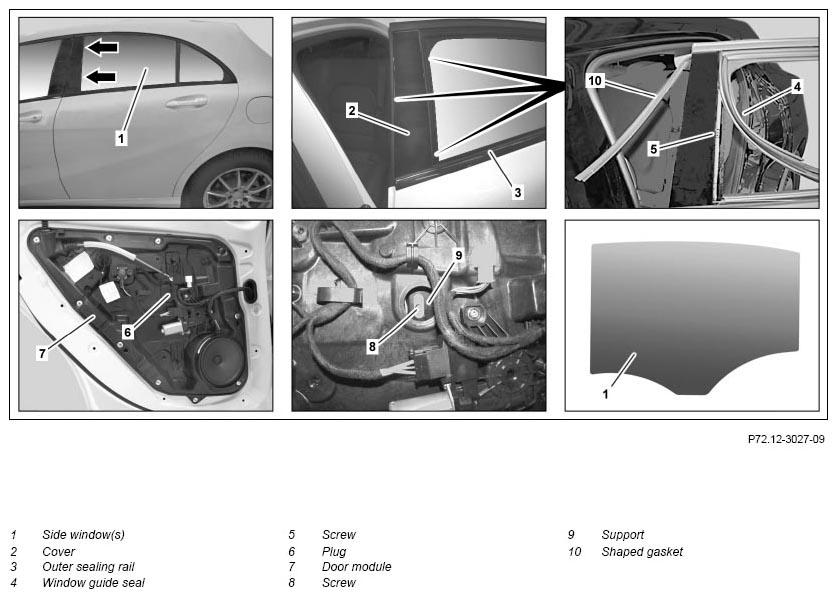

Fig 1: Rear Door Crank Window Remove/Install Components - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from contusions to hands if window glass is not secured	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
1	Completely open side window (1) in left or right rear door
2	Remove rear door lining
3	Remove outer sealing rail (3)	Do not bend outer sealing rail (3). Otherwise the outer sealing rail (3) must be replaced.
4	Remove window guide rail (4) in area of cover (2)
5	Remove profile seal (10) in area of cover (2)
6	Remove bolts (5)	Prevent screws (5) from falling.
7	Remove cover (2) from window frame
8	Remove stop plug (6) from door module (7)
9	Open side window (1) until bolt (8) is accessible through assembly opening in door module (7)
10	Undo screw (8) by about 2 revolutions	Do not remove bolt (8).
11	Remove crank window (1) from rear door window channel upward
	Install
12	Guide side window (1) into window shaft in rear door and slide downward until mount (9) makes contact
13	Completely lower side window (1)	Ensure that side window (1) remains in mount (9) when moving down by slightly pressing with hand.
14	Install covering (2)	Ensure that cover (2) is seated correctly in window frame.
15	Screw in bolts (5)	Prevent screws (5) from falling.
16	Moisten rear of window guide seal (4) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
17	Remove window guide rail (4) in area of cover (2)
18	Moisten rear of profile seal (10) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
19	Install profile seal (10) in area of cover (2)
20	Open side window (1) until bolt (8) is accessible through assembly opening in door module (7)
21	Uniformly move side window (1) to front end stop (arrows) in window guide seal (4)
22	Tighten screw (8)
23	Insert stop plug (6) into door module (7)
24	Install outer sealing rail (3)
25	Install rear door lining
26	Check for proper function and synchronize power window

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
