Remove/install inertization cartridge - AR86.10-P-0106NKC
MODEL 117, 156, 176 with ENGINE 133, 270 with CODE 2U8 (Alternative refrigerant)
MODEL 242, 246 with ENGINE 270 with CODE 2U8 (Alternative refrigerant)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery | AR54.10-P-0003NKB | |
| 2 | Remove engine cover | ||

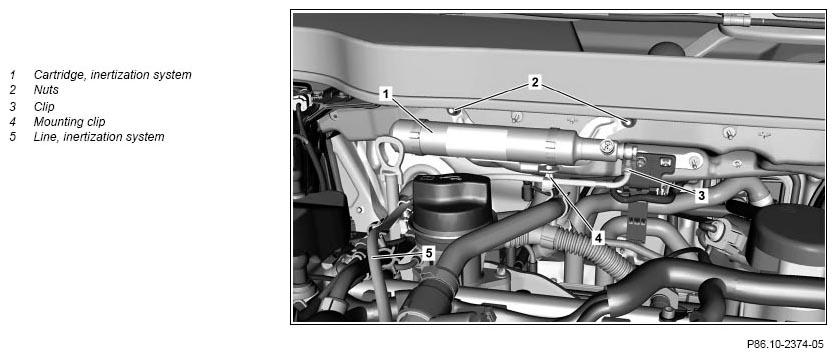

| 3 | Unlock electrical connector from inertization system cartridge (1) and disconnect | ||
| 4 | Loosen clamp (3) | ||
| 5 | Disconnect inertization system line (5) from inertization system cartridge (1) | ||
| 6 | Open retaining clip (4) and guide inertization system line (5) from retaining clip (4) | ||
| 7 | Unscrew nuts (2) | ||
| 8 | Remove inertization system cartridge (1) together with bracket | ||
| 9 | Install in the reverse order |
