Remove/install low-temperature circuit coolant expansion reservoir - AR20.30-P-4951MTA
ENGINE 133 in MODEL 117, 156, 176
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Empty low-temperature circuit | AR20.00-P-1144MTA | |
| 2 | Detach partial load operation crankcase ventilation system valve (Y58/2) from bracket (2) | ||
| 3 | Unclip purge lines (3) and vent line (4) from bracket (2) and place to one side | Do not bend the purge lines (3) too strongly. These can break and must be replaced otherwise. |
|

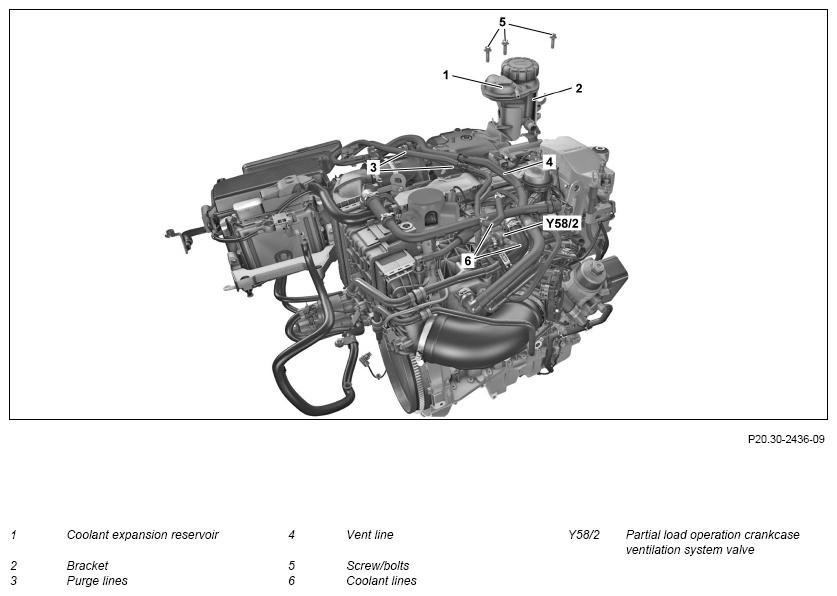

| 4 | Detach coolant lines (6) from coolant expansion reservoir (1) | Figure | |
| 5 | Remove screw/bolts (5) | *BA09.41-P-1006-01T | |
| 6 | Remove coolant expansion reservoir (1) with bracket (2) upwards | ||
| 7 | Detach coolant expansion reservoir (1) from holder (2) | If necessary. | |
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check low-temperature circuit cooling system for leaktightness | AR09.41-P-1010MTA | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check cooling system for proper operation |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 133 | |
|---|---|---|---|
| BA09.41-P-1006-01T | Bolt, charge air cooling expansion reservoir to cylinder head cover | Nm | 9 |
