Remove/install signaling lights actuation module - AR82.10-P-4655NKX

MODEL 156 up to model year 2016 with CODE 614 (Bi-xenon headlamps)

MODEL 156 up to model year 2016 with CODE 615 (Bi-xenon headlamps with active light function)

MODEL 156 up to model year 2016 with CODE 618 (Bi-xenon headlamps)

MODEL 156 up to model year 2016 with CODE 621 (Intelligent Light System (left-hand traffic))

MODEL 156 up to model year 2016 with CODE 622 (Intelligent Light System)

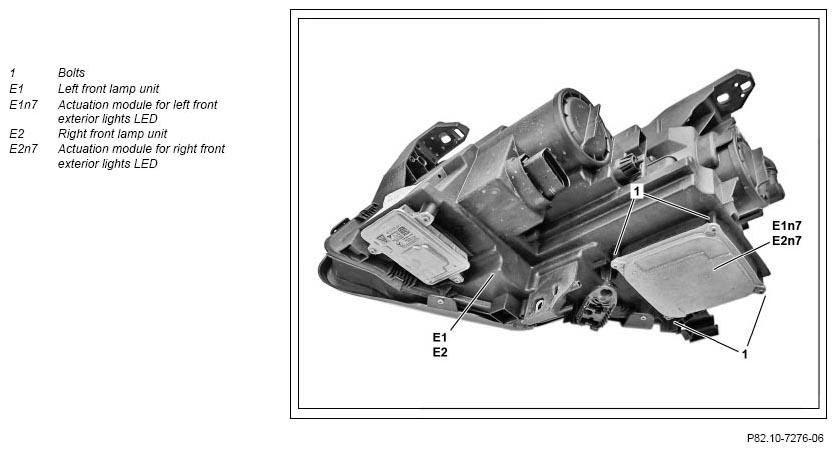

Fig 1: Signaling Lights Actuation Module Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Carry out initial startup of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)	When replacing left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
			AD00.00-P-2000-04A
		Note Data Matrix code on the left front lamp unit (E1) or right front lamp unit (E2).
2	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
3	Turn left front complete wheel or right front complete wheel inwards
4	Detach left or right fender liner in area of front bumper and fold to one side until left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) is accessible		AR88.10-P-1300NKB
5	Remove bolts (1)
6	Remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) and disconnect electrical connector
7	Install in the reverse order
