Remove/install electronic stability program (ESP) control unit - AR42.45-P-0820NKB

MODEL 117, 156, 176, 242, 246

MODIFICATION NOTES

23.9.15	O-ring (3) removed	Legend
23.9.15	O-ring (3) removed	Operation step

Shown on model 246

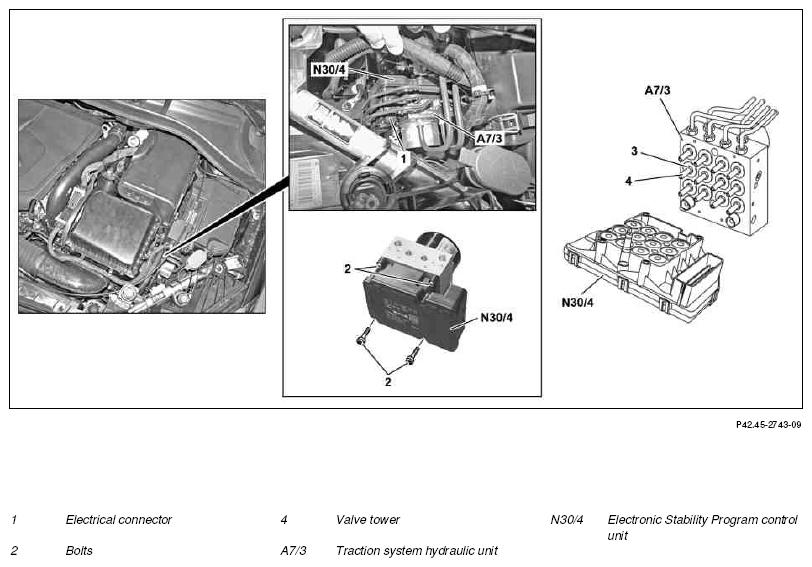

Fig 1: Electronic Stability Program Control Unit Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes.	AS20.40-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m)
2	Remove air filter housing	Model 117, 156, 176 with engine 133	AR09.10-P-1150MTA
		Engine 607 in model 117, 156, 176, 246	AR09.10-P-1150ORA
		Engine 651 in model 117, 156, 176, 246	AR09.10-P-1150OLB
		Engine 270 in model 117, 156, 176, 242, 246	AR09.10-P-1150MT
	Clean
3	Clean the surrounding area of the electrical connection (1) and the Electronic Stability Program control unit (N304)	Before opening the brake system the area around the separation point should be cleaned thoroughly. Only use clean, lint free rags and cleaner free of mineral oil. Do not use any compressed-air for cleaning when the brake system is open. Even the smallest particles of dirt, introduced into the hydraulic components, can lead to malfunctions and a total failure of the brake system.
4	Disconnect electrical connection (1) on Electronic Stability Program control unit (N304)	Model 117, 156, 176, 242, 246 except code 239 (DISTRONIC PLUS) The work instructions for disconnecting the electrical connection (1) must be followed. Otherwise damage can be caused to the locking mechanism. Do not touch, deform or damage contacts of electrical connection (1) and of jack on Electronic Stability Program control unit (N30/4). Do not allow any foreign objects, dirt or fluids to enter the jack or the electrical connector (1). Otherwise the Electronic Stability Program control unit (N304) may be damaged or may malfunction.	AR42.45-P-0820-02NKB
5	Unscrew screws/bolts (2)	Screws/bolts (2) must be replaced.
		Screw/bolt, ESP® control unit to traction system hydraulic unit	*BA42.45-P-1002-01M
6	Detach Electronic Stability Program control unit (N304) from traction system hydraulic unit (A73) and take out	Do not touch the contact areas or sealing silicone of the Electronic Stability Program control unit (N30/4) either with your hands or with tools. Otherwise, the Electronic Stability Program control unit (N30/4) could get damaged.
	Clean
7	Clean sealing surface on traction system hydraulic unit (A73)
8	Install in the reverse order
9	Carry out calibration of the Electronic Stability Program control unit (N30/4) with diagnostic system	When replacing Electronic Stability Program control unit (N30/4).
			AD00.00-P-2000-04A

ELECTRONIC STABILITY PROGRAM (ESP)

Number	Designation		Model 117	Model 156
BA42.45-P-1002-01M	Screw/bolt, ESP® control unit to traction system hydraulic unit	Nm	3	3

ELECTRONIC STABILITY PROGRAM (ESP)

Number	Designation		Model 176, 246	Model 242
BA42.45-P-1002-01M	Screw/bolt, ESP® control unit to traction system hydraulic unit	Nm	3	3
