Remove/install ETS/ASR/ESP hydraulic unit - AR42.40-P-0816NKB

MODEL 117, 156, 176, 242, 246

Shown on MODEL 246

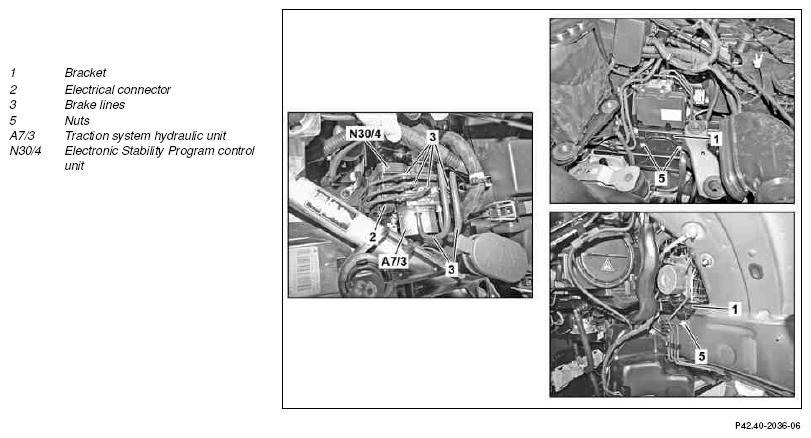

Fig 1: ETS/ASR/ESP Hydraulic Unit Remove/Install Components - Shown On Model 246
G10251117Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury  due to fan starting unexpectedly Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. AS20.40-Z-0001-01A
DANGER Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on externally invisible brake fluid loss   AH42.10-P-9406-02V
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and remove transmitter key from electronic ignition lock control unit
2 Remove air filter housing MODEL 117, 156, 176 with ENGINE 133 AR09.10-P-1150MTA
ENGINE 607 in MODEL 176, 246 AR09.10-P-1150ORA
ENGINE 651 in MODEL 117, 156, 176, 246 AR09.10-P-1150OLB
ENGINE 270 in MODEL 117, 156, 176, 242, 246.2 AR09.10-P-1150MT
CLEAN Clean
3 Clean traction system hydraulic unit (A7/3) in the area of the brake lines (3) Assembly cleaner *BR00.45-Z-1028-04A
4 Disconnect electrical connection (2) on Electronic Stability Program control unit (N30/4) MODEL 117, 156, 176, 242, 246
without CODE 239 (DISTRONIC PLUS)
NOTES The work instructions for disconnecting the electrical connection (2) must be followed. Otherwise, damage may be caused to the locking mechanism.
NOTES Do not touch, deform or damage contacts of electrical connection (2) and of jack on Electronic Stability Program control unit (N30/4). Do not allow any foreign objects, dirt or fluids to enter the jack or the electrical connection (2).
Otherwise, the Electronic Stability Program control unit (N30/4) will be damaged and malfunction.
AR42.45-P-0820-02NKB
5 Detach complete left front wheel
REFER TO MAINTENANCE AP40.10-P-4050AK
6 Remove left front wheel well paneling   AR88.10-P-1300NKB
7 Unclip electrical line from bracket (1)
8 Mark brake lines (3) for corresponding connection
9 Detach brake lines (3) on traction system hydraulic unit (A7/3) NOTES Seal brake lines (3) and connections on traction system hydraulic unit (A7/3). Otherwise, the traction system hydraulic unit (A7/3) will be damaged by the infiltration of foreign objects.
INSTALLATION IMPORTANT Pay attention to stress/chafe-free routing of brake lines (3).

TORQUE SPECIFICATION Retaining screw, brake line to hydraulic unit *BA42.10-P-1004-04L
SPECIAL TOOL Record plug Figure
SPECIAL TOOL Box wrench bit Figure
SPECIAL TOOL Adapter coupling Fig 3
SPECIAL TOOL Box wrench bit Fig 2
10 Unscrew nuts (5) and remove traction system hydraulic unit (A7/3) with bracket (1) TORQUE SPECIFICATION Bolt/nut, bracket for hydraulic unit to body *BA42.45-P-1004-01M
11 Install in the reverse order
12 Carry out calibration of the Electronic Stability Program control unit (N30/4) with diagnostic system When installing a new traction system hydraulic unit (A7/3).
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
13 Bleed brake system   AR42.10-P-0010NKB
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 117 MODEL 156
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit Ø4.75 Nm 18 18
Ø6 Nm 18 18
Ø8 Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 176 MODEL 242
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit Ø4.75 Nm 18 18
Ø6 Nm 18 18
Ø8 Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 246
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit Ø4.75 Nm 18
Ø6 Nm 18
Ø8 Nm 24
ELECTRONIC STABILITY PROGRAM (ESP)

Number Designation MODEL 117 MODEL 156
BA42.45-P-1004-01M Bolt/nut, bracket for hydraulic unit to body Nm 10 10
ELECTRONIC STABILITY PROGRAM (ESP)

Number Designation MODEL 176, 246 MODEL 242
BA42.45-P-1004-01M Bolt/nut, bracket for hydraulic unit to body Nm 10 10
Fig 2: Identifying Box Wrench Bit (140 589 00 03 00)
G07449671Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Adapter Coupling (001 589 00 16 00)
G10251119Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Box Wrench Bit (000 589 75 03 00)
G07274453Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
