Remove/install cover below instrument panel (right) - AR68.10-P-1520NKX
MODEL 156
Shown on MODEL 246.###1

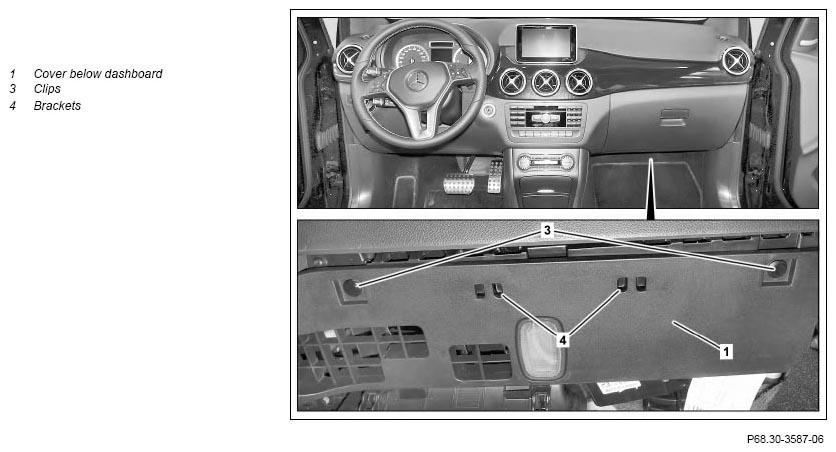

Fig 1: Cover Below Instrument Panel (Right) Remove/Install Components - Shown On Model 246.###1 (1 Of 2)

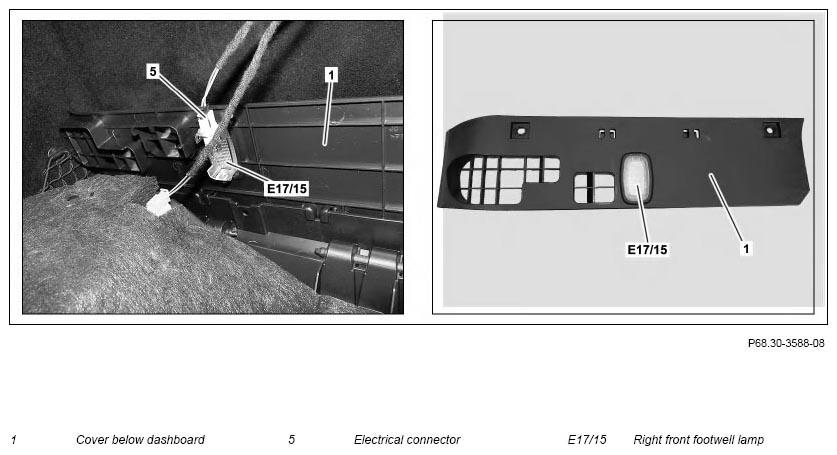

Fig 2: Cover Below Instrument Panel (Right) Remove/Install Components - Shown On Model 246.###1 (2 Of 2)
| Remove/install | |||
| 1 | Move front passenger seat towards the rear | ||
| 2 | Remove clips (3) from cover below instrument panel (1) | Figure | |
| 3 | Push cover below instrument panel (1) toward front out of brackets (4) | ||
| 4 | Disconnect electrical connector (5) and remove cover below instrument panel (1) | MODEL 156 with CODE U62 (Exterior light and sight package) |
|
| 5 | Remove right front footwell lamp (E17/15) | MODEL 156 with CODE U62 (Exterior light and sight package) When replacing passenger side footwell paneling (1). |
|
| 6 | Install in the reverse order |
