Remove/install cover below instrument panel (left) - AR68.10-P-1500NKX
MODEL 156
Shown on MODEL 246.###1
Shown on MODEL 246 with CODE U62 (Light and visibility package)

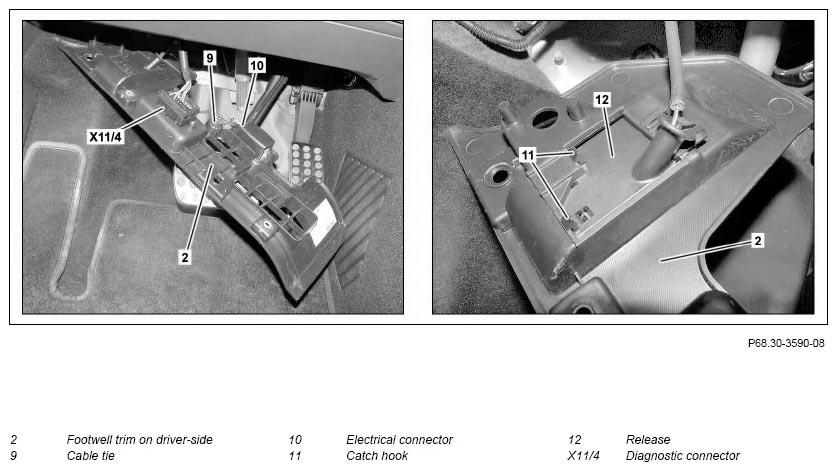

Fig 2: Cover Below Instrument Panel (Left) Remove/Install Components - Shown On Model 246 With Code U62
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100°C or 212°F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Move driver seat towards the rear | ||
| 2 | Disconnect ground line of battery | MODEL 156 with CODE 294 (Kneebag) |
|
| AR54.10-P-0003NKB | |||

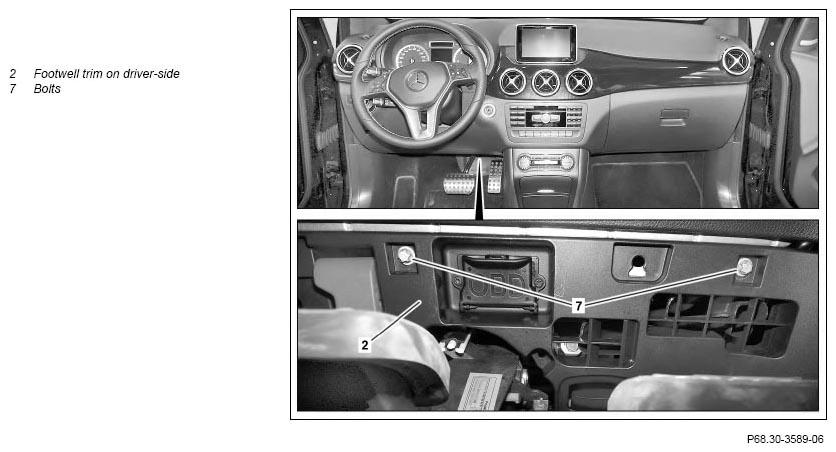

| 3 | Unscrew bolts (7) and remove driver side footwell paneling (2) | ||
| *BA91.60-P-1009-01F | |||
| 4 | Unlock electrical connector from diagnostic connector (X11/4) and disconnect | ||
| 5 | Unclip cable tie (9) | MODEL 156 with CODE U62 (Exterior light and sight package) |
|
| Figure | |||
| 6 | Disconnect electrical connector (10) | MODEL 156 with CODE U62 (Exterior light and sight package) |
|
| 7 | Release catch hook (11) and unclip release (12) from driver-side footwell paneling (2) | ||
| 8 | Remove driver side footwell paneling (2) from vehicle | ||
| 9 | Remove diagnostic connector housing (X11/4) from driver side footwell paneling (2) | When replacing driver side footwell paneling (2). | |
| 10 | Remove left front footwell lamp from driver side footwell paneling (2) | MODEL 156 with CODE U62 (Exterior light and sight package) When replacing driver side footwell paneling (2). |
|
| 11 | Install in the reverse order |
AIRBAG
| Number | Designation | MODEL 156 | |
|---|---|---|---|
| BA91.60-P-1009-01F | Bolt, knee airbag to bracket | Nm | 5 |
