Remove/install fluid reservoir - AR83.30-P-6520GQ
MODEL 166
MODIFICATION NOTES
| 19.4.12 | Value changed: Nut/bolt, high-pressure line to accumulator | *BA83.30-P-1001-01J | |
| 19.4.12 | Value changed: Bolt, accumulator to condenser | *BA83.30-P-1002-01J | |
| 24.5.12 | Nut/screw high pressure line to reservoir | Model 166 | *BA83.30-P-1001-01J |
| 24.5.12 | Screw reservoir capacitor | Model 166 | *BA83.30-P-1002-01J |
Illustrated on model 166.0
| Remove/install | |||
| Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant. | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well-ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. | AS83.00-Z-0001-01A | |
| Procedure for a damaged or leaky air conditioning system | All models | AH83.30-N-0004-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on handling refrigerant R134a | AH83.30-N-0003-01A | ||
| 1 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 2 | Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks | AR83.30-P-1760CW | |
| 3 | Remove front bumper | MODEL 166.0 | AR88.20-P-2000GQ |

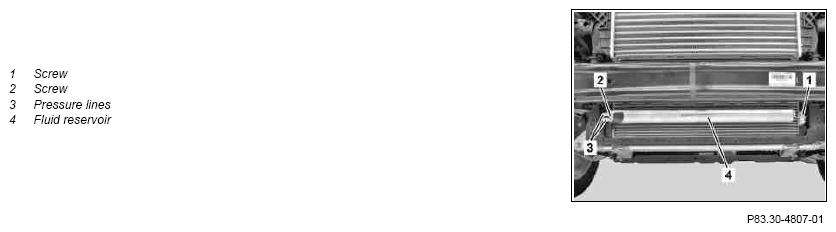

| 4 | Remove bolt (1) | ||
| Notes on calculating tightening torque when using insertion tool with various effective lengths. | AH00.00-P-0015-01CW | ||
| *BA83.30-P-1002-01J | |||
Box wrench bit |
Fig 2 | ||
Adapter coupling |
Fig 3 | ||
| 5 | Unscrew bolt (2) | *BA83.30-P-1001-01J | |
| 6 | Pull out pressure lines (3) | ||
| 7 | Remove fluid reservoir (4) | Ensure that the new fluid reservoir (4) is installed and the entire refrigerant circuit closed within 20 minutes after opening the package at the latest. Otherwise the function of the fluid reservoir (4) can no longer be ensured. |
|
| 8 | Immediately close off openings of refrigerant lines and fluid reservoir (4) with stop plugs | Plug refrigerant lines. Ingress of dirt and moisture can damage components. |
|
| Figure | |||
| 9 | Install in the reverse order |
AIR CONDITIONING
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| BA83.30-P-1001-01J | Nut/bolt, high-pressure line to fluid reservoir | Nm | 7 |
AIR CONDITIONING
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| BA83.30-P-1002-01J | Bolt, fluid reservoir to condenser | Nm | 7 |
