Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997GR

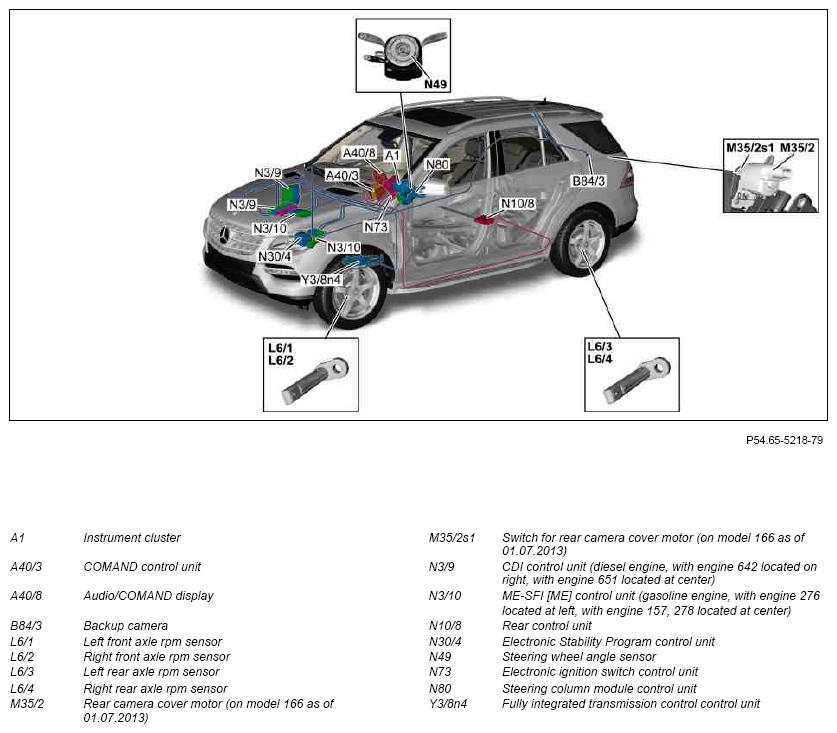

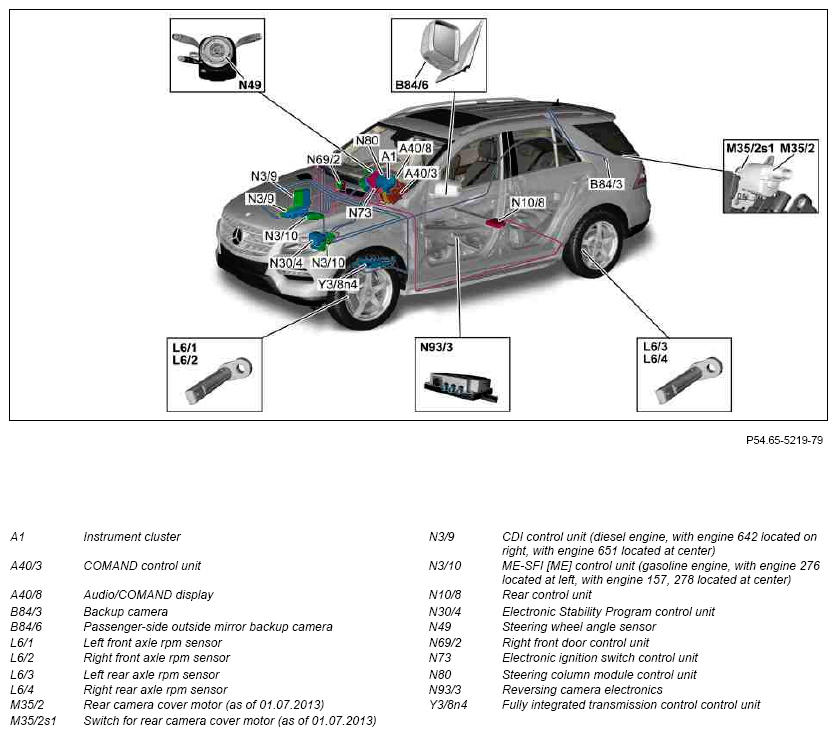

MODEL 166 up to model year 2016 with CODE 218 (Rear view camera)
MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC)

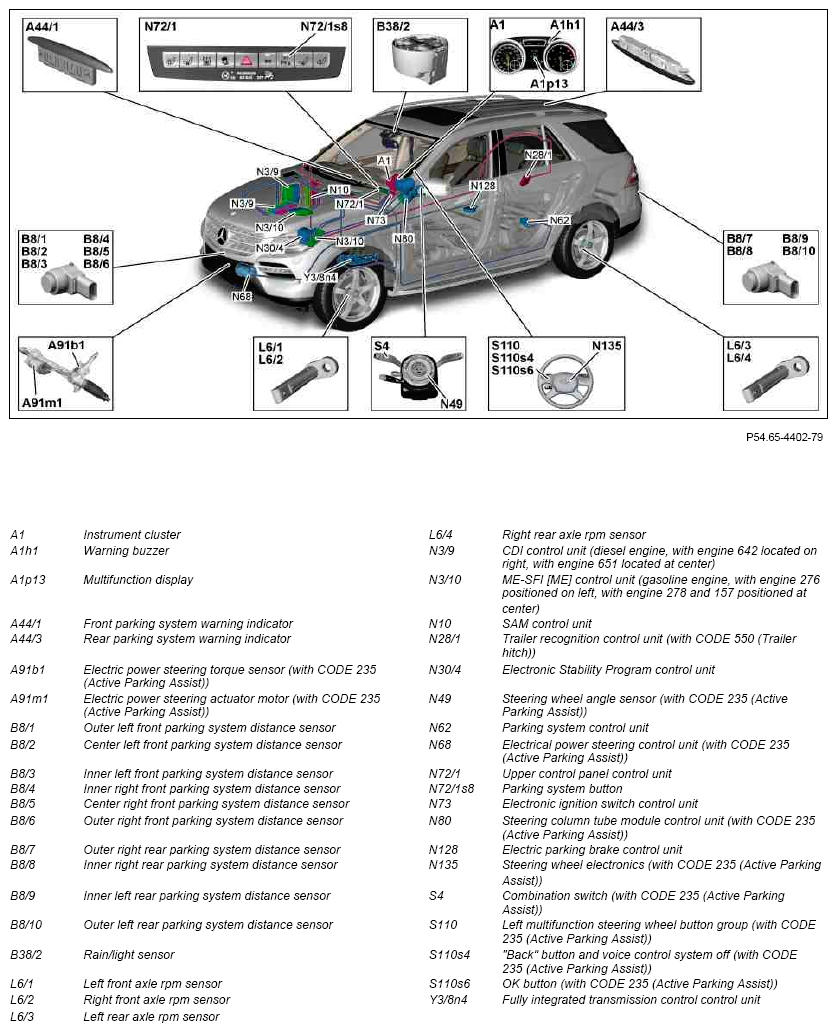

MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist)

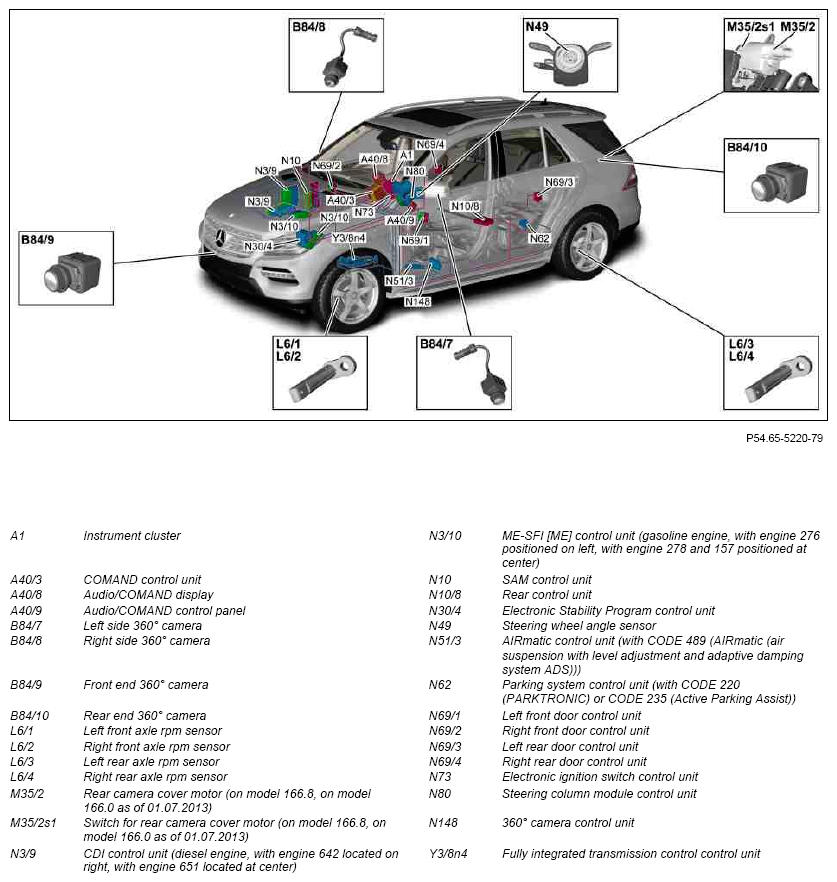

MODEL 166 up to model year 2016 with CODE 501 (360 degree camera)
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for COMAND controller unit | MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) with CODE 512 (COMAND APS with DVD changer) MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) with CODE 528 (COMAND with DVD changer) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) with CODE 512 (COMAND APS with DVD changer) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) with CODE 528 (COMAND with DVD changer) MODEL 166 up to model year 2016 with CODE 501 (360 degree camera) with CODE 512 (COMAND APS with DVD changer) MODEL 166 up to model year 2016 with CODE 501 (360 degree camera) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 166 up to model year 2016 with CODE 501 (360 degree camera) with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136GR | |
| Component description for Audio/COMAND display | MODEL 166 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 up to model year 2016 with CODE 501 (360 degree camera) A40/8 |
GF54.30-P-6150GR | |
| Component description for Audio/COMAND control panel | MODEL 166 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 up to model year 2016 with CODE 501 (360 degree camera) A40/9 |
GF54.21-P-4501GR | |
| Reversing camera component description | MODEL 166 up to model year 2016 with CODE 218 (Rear view camera) B84/3 |
GF54.65-P-5040GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 with ENGINE 642.8 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 with ENGINE 642.8 up to model year 2016 with CODE 235 (Active Park Assist) MODEL 166 with ENGINE 642.8 up to model year 2016 with CODE 501 (360 degree camera) N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 with CODE 218 (Rear view camera) MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 with CODE 220 (PARKTRONIC) MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 with CODE 235 (Active Park Assist) MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 with CODE 501 (360 degree camera) N3/9 |
GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 with CODE 235 (Active Park Assist) MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 with CODE 501 (360 degree camera) N3/9 |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 with ENGINE 276.8 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 with ENGINE 276.8 up to model year 2016 with CODE 235 (Active Park Assist) MODEL 166 with ENGINE 276.8 up to model year 2016 with CODE 501 (360 degree camera) N3/10 |
GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 with ENGINE 276.9 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 with ENGINE 276.9 up to model year 2016 with CODE 235 (Active Park Assist) MODEL 166 with ENGINE 276.9 up to model year 2016 with CODE 501 (360 degree camera) N3/10 |
GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 with CODE 235 (Active Park Assist) MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 with CODE 501 (360 degree camera) N3/10 |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| Component description for trailer recognition control unit | MODEL 166 up to model year 2016 with CODE 218 (Rear view camera) with CODE 550 (Trailer coupling) MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) with CODE 550 (Trailer coupling) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) with CODE 550 (Trailer coupling) MODEL 166 up to model year 2016 with CODE 501 (360 degree camera) with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| AIRmatic control unit, component description | MODEL 166 up to model year 2016 with CODE 218 (Rear view camera) with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) with CODE 501 (360 degree camera) N51/3 |
GF32.22-P-5109GR | |
| Parking system control unit component description | MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) N62 |
GF54.65-P-5002GR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GR | |
| Component description for 360 degree viewing system control unit | MODEL 166 up to model year 2016 with CODE 501 (360 degree camera) N148 |
GF54.65-P-5003GR | |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 218 (Rear view camera) MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 235 (Active Park Assist) MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 501 (360 degree camera) Y38n4 |
GF27.60-P-5165AHA | |
| Table of contents for function description of parking assistance systems | GF54.00-P-0997GR |
