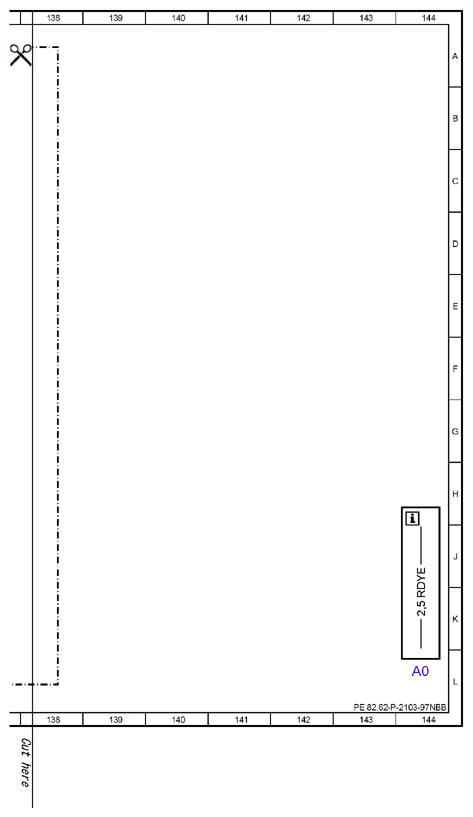

| A0 |
Color code key |
144L |
| A2 |
Radio |
6L |
| A2 |
Radio |
40L |
| A2 |
Radio |
101L |
| A2 |
Radio |
124L |
| A2/124 |
TV and DAB antenna splitter |
30L |
| A2/124 |
TV and DAB antenna splitter |
11L |
| A2/19 |
FM 2 and DAB antenna amplifier |
5A |
| A2/19 |
FM 2 and DAB antenna amplifier |
12A |
| A2/19 |
FM 2 and DAB antenna amplifier |
20A |
| A2/19 |
FM 2 and DAB antenna amplifier |
45A |
| A2/19 |
FM 2 and DAB antenna amplifier |
27A |
| A2/19 |
FM 2 and DAB antenna amplifier |
36A |
| A2/5 |
Global positioning system antenna splitter |
91L |
| A2/83 |
WLAN antenna |
122A |
| A2/91 |
Bluetooth® antenna |
119A |
| A2/94 |
ETC/DSRC antenna |
129L |
| A28/11 |
Multifunction antenna |
90A |
| A28/11 |
Multifunction antenna |
112A |
| A28/11 |
Multifunction antenna |
98A |
| A28/11 |
Multifunction antenna |
105A |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
105L |
| A40/3 |
COMAND control unit |
6L |
| A40/3 |
COMAND control unit |
40L |
| A40/3 |
COMAND control unit |
101L |
| A40/3 |
COMAND control unit |
124L |
| A50/6 |
Dedicated Short-Range Communications control unit |
130A |
| A6/1 |
Stationary heater radio remote control receiver |
114L |
| A90/4 |
Tuner unit |
20L |
| A90/4 |
Tuner unit |
25L |
| A90/4 |
Tuner unit |
45L |
| A90/4 |
Tuner unit |
51L |
| A90/4 |
Tuner unit |
67L |
| A90/4 |
Tuner unit |
73L |
| A90/4 |
Tuner unit |
78L |
| A90/4 |
Tuner unit |
83L |
| A90/4 |
Tuner unit |
62L |
| A90/4 |
Tuner unit |
88L |
| A90/4 |
Tuner unit |
34L |
| A90/4 |
Tuner unit |
14L |
| A90/4 |
Tuner unit |
56L |
| A94/5 |
TV 1 antenna amplifier |
72A |
| A94/5 |
TV 1 antenna amplifier |
78A |
| A94/5 |
TV 1 antenna amplifier |
83A |
| A94/5 |
TV 1 antenna amplifier |
56A |
| A94/6 |
TV 2 antenna amplifier |
67A |
| A94/6 |
TV 2 antenna amplifier |
61A |
| Code 348 |
Emergency call/assistance system |
89E |
| Code 348 |
Emergency call/assistance system |
106E |
| Code 359 |
TELEAID emergency call system |
89E |
| Code 386 |
Comfort telephony |
103E |
| Code 498 |
Japan version |
123B |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
2B |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
36B |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
98E |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
117A |
| Code 522 |
Audio 20 radio |
2B |
| Code 522 |
Audio 20 radio |
36B |
| Code 522 |
Audio 20 radio |
98E |
| Code 522 |
Audio 20 radio |
117B |
| Code 531 |
COMAND APS |
2B |
| Code 531 |
COMAND APS |
36A |
| Code 531 |
COMAND APS |
98E |
| Code 531 |
COMAND APS |
117A |
| Code 531 |
COMAND APS |
120E |
| Code 536 |
SIRIUS satellite radio |
86E |
| Code 537 |
Digital radio |
8B |
| Code 537 |
Digital radio |
17B |
| Code 537 |
Digital radio |
48A |
| Code 537 |
Digital radio |
42B |
| Code 537 |
Digital radio |
70A |
| Code 537 |
Digital radio |
81A |
| Code 537 |
Digital radio |
59A |
| Code 537 |
Digital radio |
64A |
| Code 537 |
Digital radio |
28B |
| Code 865 |
TV tuner |
8B |
| Code 865 |
TV tuner |
42A |
| Code 865 |
TV tuner |
70A |
| Code 865 |
TV tuner |
75A |
| Code 865 |
TV tuner |
64A |
| Code 865 |
TV tuner |
22B |
| Code 865 |
TV tuner |
28B |
| Code 865 |
TV tuner |
53A |
| Code B24 |
Remote control for stationary heater |
112E |
| Code B54 |
Live Traffic Information |
93E |
| F11/1 |
Cockpit fuse block |
132E |
| F4 |
Rear fuse box |
135L |
| F4f137 |
Fuse 137 |
134L |
| N112/2 |
Telematics services communication module |
96L |
| N123/4 |
Emergency call system control unit |
109L |
| U135 |
Valid for Electronic Toll Collection |
123B |
| U154 |
Valid for 166.0 |
2A |
| U154 |
Valid for 166.0 |
8A |
| U154 |
Valid for 166.0 |
17A |
| U154 |
Valid for 166.0 |
22A |
| U154 |
Valid for 166.0 |
70B |
| U154 |
Valid for 166.0 |
81A |
| U154 |
Valid for 166.0 |
28A |
| U155 |
Valid for 166.8 |
2A |
| U155 |
Valid for 166.8 |
8A |
| U155 |
Valid for 166.8 |
17A |
| U155 |
Valid for 166.8 |
22A |
| U155 |
Valid for 166.8 |
70B |
| U155 |
Valid for 166.8 |
81B |
| U155 |
Valid for 166.8 |
28A |
| U215 |
Valid for model series 292 |
36A |
| U215 |
Valid for model series 292 |
42A |
| U215 |
Valid for model series 292 |
48A |
| U215 |
Valid for model series 292 |
75A |
| U215 |
Valid for model series 292 |
59A |
| U215 |
Valid for model series 292 |
64B |
| U215 |
Valid for model series 292 |
53A |
| U374 |
Not valid for code 865 TV tuner |
17B |
| U374 |
Not valid for code 865 TV tuner |
49A |
| U374 |
Not valid for code 865 TV tuner |
82A |
| U374 |
Not valid for code 865 TV tuner |
60A |
| U375 |
Valid without code 537 Digital radio |
22B |
| U375 |
Valid without code 537 Digital radio |
53B |
| U375 |
Valid without code 537 Digital radio |
75B |
| W12 |
Ground point (center console) |
131L |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
125F |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
131D |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
131H |
