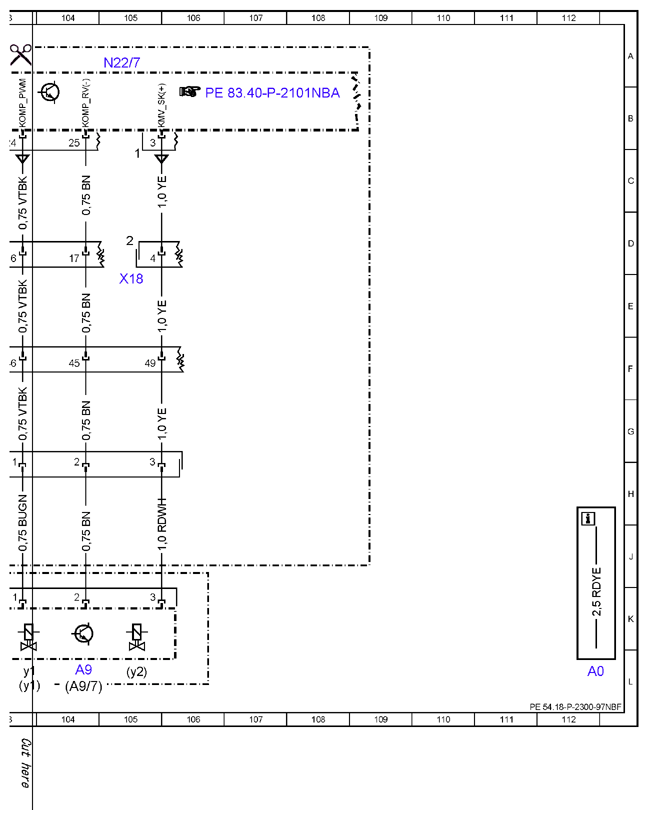

| A0 |
Color code key |
112L |

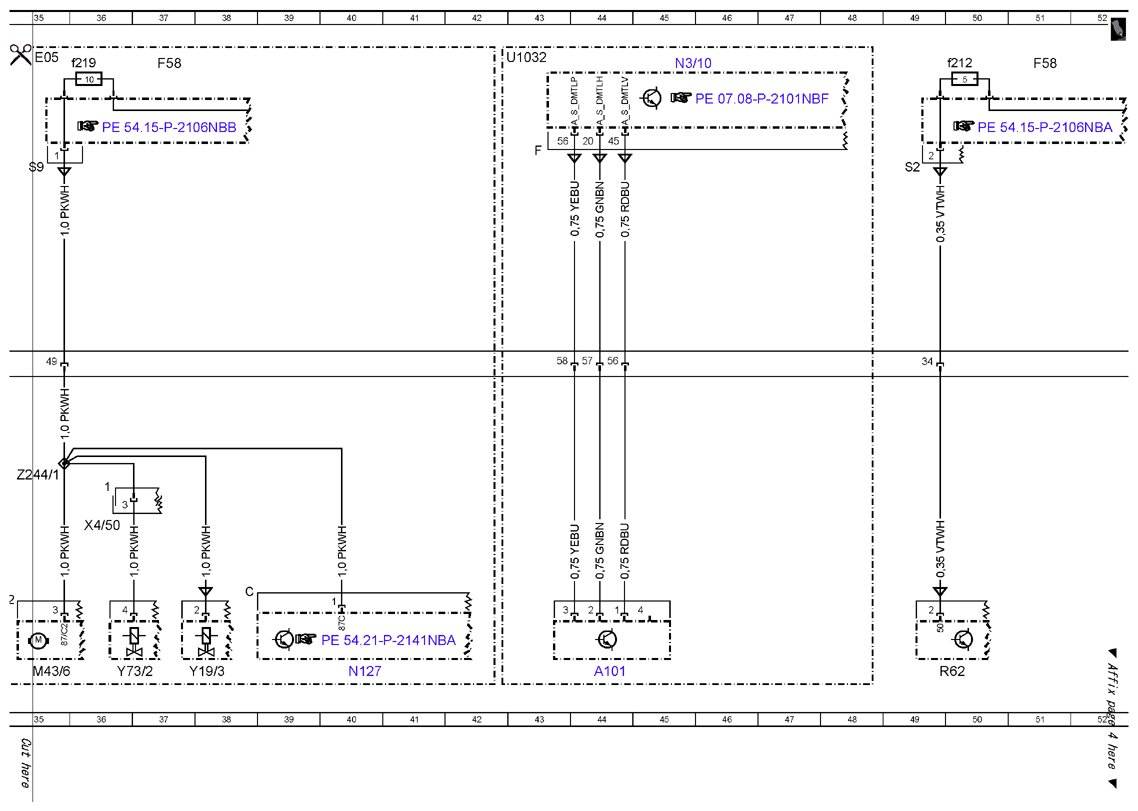

| A101 |
Fuel tank diagnostic module |
44L |

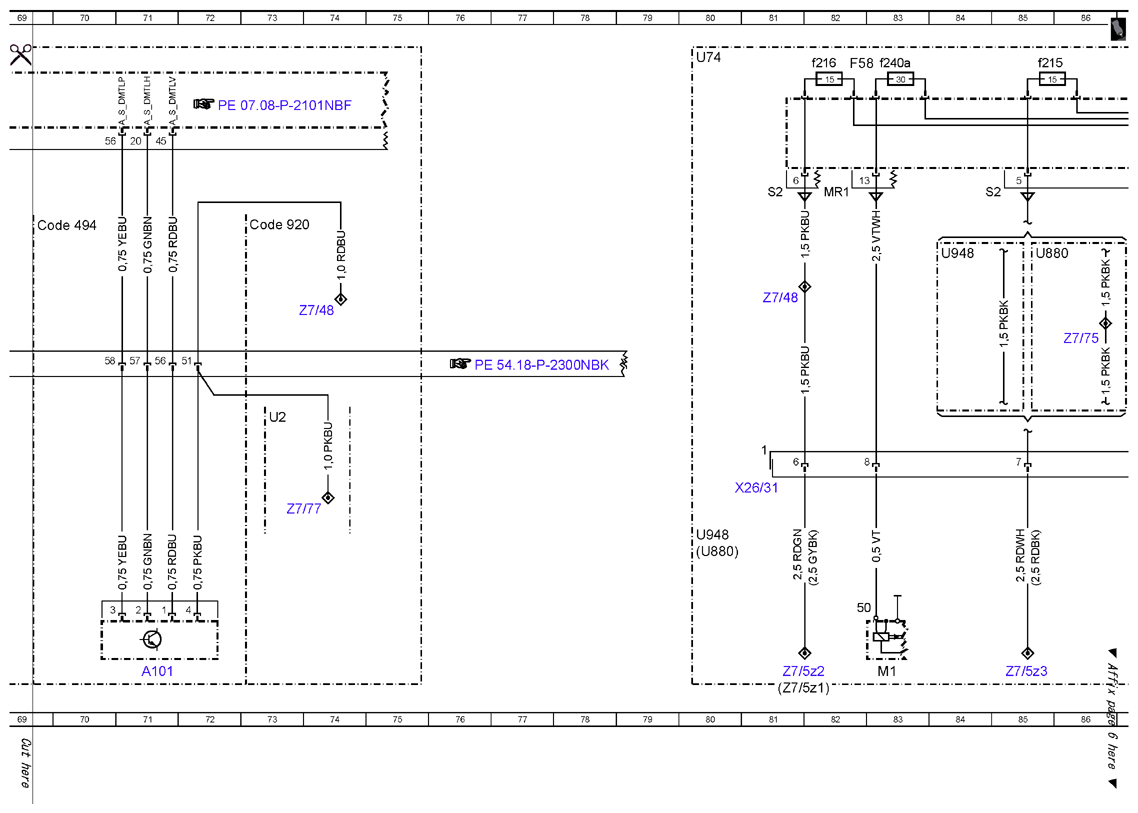

| A101 |
Fuel tank diagnostic module |
71L |

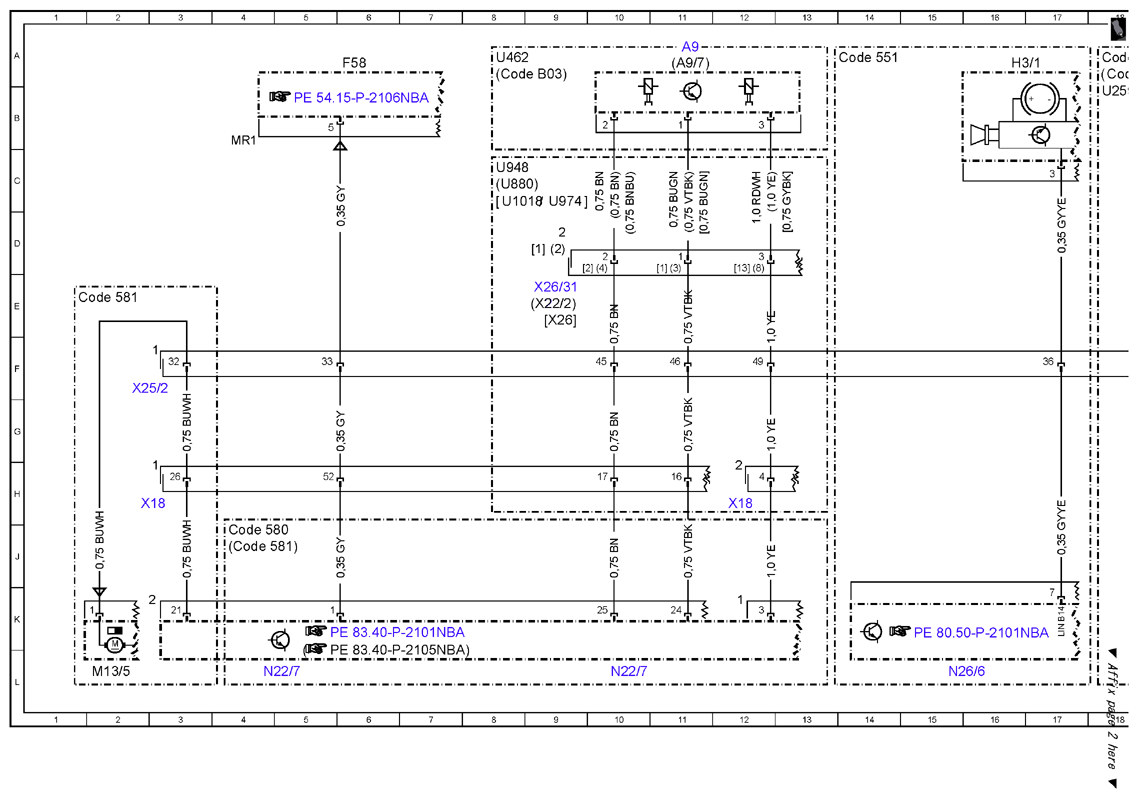

| A9 |
Refrigerant compressor |
11A |
| A9 |
Refrigerant compressor |
104L |
| A9/7 |
Refrigerant compressor with magnetic clutch |
11A |
| A9/7 |
Refrigerant compressor with magnetic clutch |
104L |
| A9/7y1 |
Refrigerant compressor regulation valve |
103L |
| A9/7y2 |
Refrigerant compressor magnetic clutch |
105L |
| A9y1 |
Refrigerant compressor regulation valve |
103L |

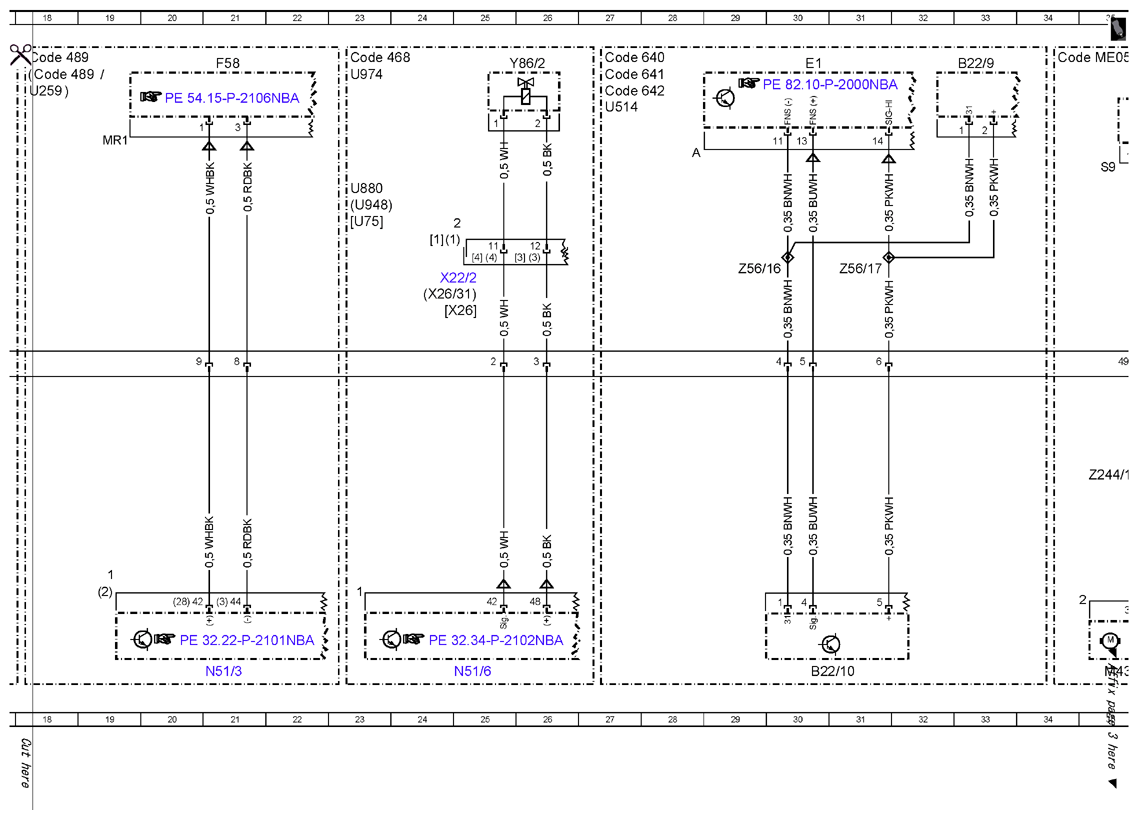

| B22/10 |
Right rear level sensor |
30L |
| B22/9 |
Right front level sensor |
33A |

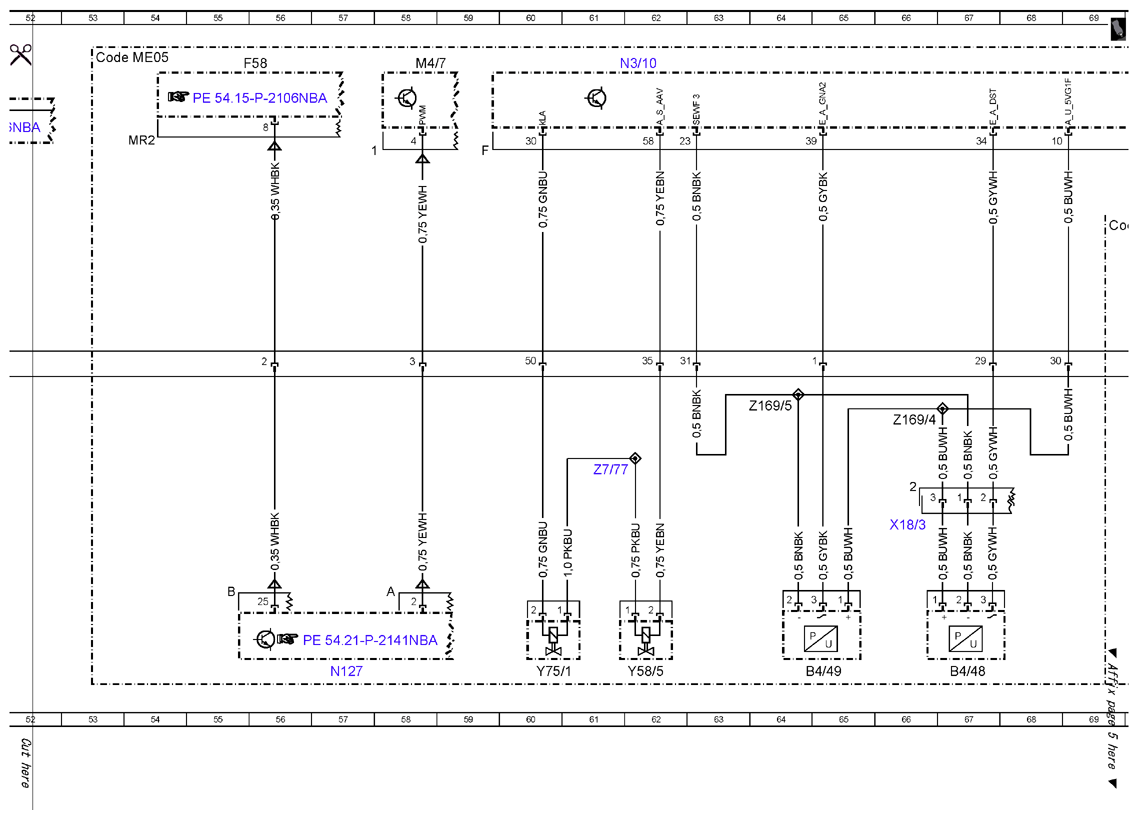

| B4/48 |
Fuel tank pressure sensor 1 |
67L |
| B4/49 |
Fuel tank pressure sensor 2 |
65L |

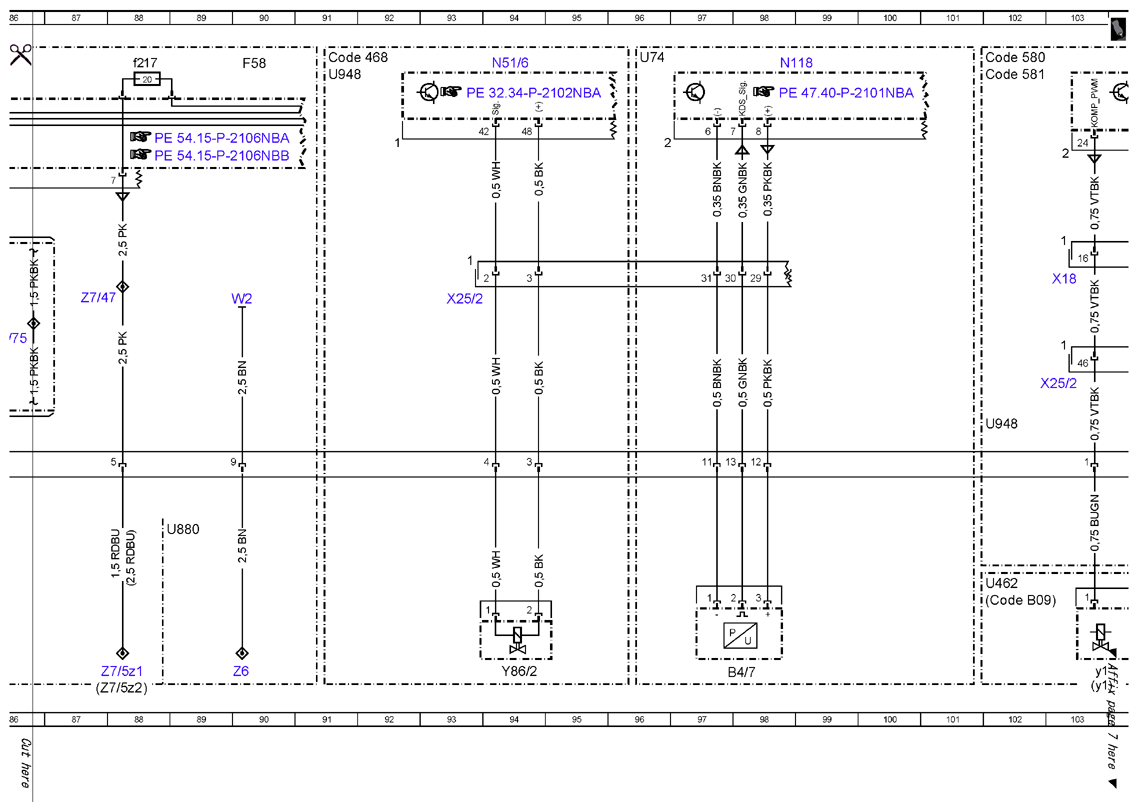

| B4/7 |
Fuel pressure sensor |
98L |
| Code 468 |
ACTIVE CURVE SYSTEM |
91A |
| Code 468 |
ACTIVE CURVE SYSTEM |
23A |
| Code 489 |
AIRMATIC |
18A |
| Code 489 |
AIRMATIC |
18A |
| Code 494 |
USA version |
69D |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
14A |
| Code 580 |
Automatic air conditioning |
4J |
| Code 580 |
Automatic air conditioning |
102A |
| Code 581 |
Comfort automatic air conditioning |
1E |
| Code 581 |
Comfort automatic air conditioning |
4J |
| Code 581 |
Comfort automatic air conditioning |
102A |
| Code 640 |
High Performance LED |
27A |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
27A |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
27B |
| Code 920 |
Gasoline direct injection with stratified charge |
73D |
| Code B03 |
ECO start/stop function |
8A |
| Code B09 |
Refrigerant compressor with magnetic clutch |
102K |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
34A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
53A |
| E1 |
Left front lamp unit |
30A |
| F58 |
Engine compartment fuse and relay module |
6A |
| F58 |
Engine compartment fuse and relay module |
82A |
| F58 |
Engine compartment fuse and relay module |
90A |
| F58 |
Engine compartment fuse and relay module |
21A |
| F58 |
Engine compartment fuse and relay module |
37A |
| F58 |
Engine compartment fuse and relay module |
51A |
| F58 |
Engine compartment fuse and relay module |
56A |
| F58f212 |
Fuse 212 |
50A |
| F58f215 |
Fuse 215 |
85A |
| F58f216 |
Fuse 216 |
82A |
| F58f217 |
Fuse 217 |
88A |
| F58f219 |
Fuse 219 |
36A |
| F58f240a |
Fuse 240a |
83A |
| H3/1 |
Alarm siren |
16A |
| M1 |
Starter |
83L |
| M13/5 |
Coolant circulation pump |
2L |
| M4/7 |
Fan motor |
58A |
| M43/6 |
Low temperature circuit circulation pump 1 |
35L |
| N118 |
Fuel pump control unit |
98A |
| N127 |
Drivetrain control unit |
40L |
| N127 |
Drivetrain control unit |
57L |
| N22/7 |
Automatic air conditioning control and operating unit |
4L |
| N22/7 |
Automatic air conditioning control and operating unit |
10L |
| N22/7 |
Automatic air conditioning control and operating unit |
105A |
| N26/6 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
15L |
| N3/10 |
ME-SFI [ME] control unit |
45A |
| N3/10 |
ME-SFI [ME] control unit |
62A |
| N51/3 |
AIRMATIC control unit |
21L |
| N51/6 |
Active roll stabilization control unit |
94A |
| N51/6 |
Active roll stabilization control unit |
25L |
| R62 |
Voltage dip limiter |
50L |
| U1018 |
Valid for gasoline engine 276 |
8C |
| U1032 |
Valid for engine 278 and 157 |
42A |
| U2 |
Valid for all except USA |
73G |
| U259 |
Valid for ADS+ |
18B |
| U462 |
Valid without code B09 Refrigerant compressor with magnetic clutch |
8A |
| U462 |
Valid without code B09 Refrigerant compressor with magnetic clutch |
102K |
| U514 |
Not valid for AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS)) |
27B |
| U74 |
Valid for diesel engines |
80A |
| U74 |
Valid for diesel engines |
96A |
| U75 |
Valid for gasoline engines |
23D |
| U880 |
Valid for engine 642 |
8C |
| U880 |
Valid for engine 642 |
23C |
| U880 |
Valid for engine 642 |
80J |
| U880 |
Valid for engine 642 |
85D |
| U880 |
Valid for engine 642 |
88J |
| U948 |
Valid for diesel engine 651 |
91A |
| U948 |
Valid for diesel engine 651 |
8C |
| U948 |
Valid for diesel engine 651 |
23C |
| U948 |
Valid for diesel engine 651 |
80J |
| U948 |
Valid for diesel engine 651 |
84D |
| U948 |
Valid for diesel engine 651 |
102G |
| U974 |
Not valid for hybrid drive |
9C |
| U974 |
Not valid for hybrid drive |
23A |
| W2 |
Right front ground point at lamp unit |
90E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
3H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
12H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
103E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
105E |
| X18/3 |
Vehicle interior/fuel tank electrical connector |
66J |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
9E |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
25E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
3F |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
93E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
103F |
| X26 |
Interior and engine wiring harness electrical connector |
9E |
| X26 |
Interior and engine wiring harness electrical connector |
25E |
| X26/31 |
Engine/engine compartment electrical connector |
9E |
| X26/31 |
Engine/engine compartment electrical connector |
24E |
| X26/31 |
Engine/engine compartment electrical connector |
81H |
| X4/50 |
Battery cooling system electrical connector 1 |
36J |
| Y19/3 |
Front evaporator shutoff valve |
38L |
| Y58/5 |
Fuel tank shutoff valve |
62L |
| Y73/2 |
Low-temperature circuit switchover valve 2 |
36L |
| Y75/1 |
Fuel vapor shutoff valve |
60L |
| Y86/2 |
Active roll stabilization intake throttle valve |
94L |
| Y86/2 |
Active roll stabilization intake throttle valve |
26A |
| Z169/4 |
Tank pressure sensor connector sleeve (supply) |
66G |
| Z169/5 |
Tank pressure sensor connector sleeve (ground connection) |
64G |
| Z244/1 |
Connector sleeve, circuit 87/C1 |
35H |
| Z56/16 |
Level sensor ground connection engine compartment solder point |
29D |
| Z56/17 |
Level sensor supply engine compartment solder point |
31D |
| Z6 |
Circuit 31 connector sleeve |
90L |
| Z7/47 |
Circuit 87D1 connector sleeve |
87E |
| Z7/48 |
Circuit 87D2 connector sleeve |
81E |
| Z7/48 |
Circuit 87D2 connector sleeve |
74E |
| Z7/5z1 |
Circuit 87 connector sleeve |
88L |
| Z7/5z1 |
Circuit 87 connector sleeve |
81L |
| Z7/5z2 |
Circuit 87 connector sleeve |
81L |
| Z7/5z2 |
Circuit 87 connector sleeve |
87L |
| Z7/5z3 |
Circuit 87 connector sleeve |
85L |
| Z7/75 |
Circuit 87 D3 connector sleeve |
86F |
| Z7/77 |
Circuit 87 D2 connector sleeve |
61H |
| Z7/77 |
Circuit 87 D2 connector sleeve |
74H |
