| A0 |
Color code key |
80L |

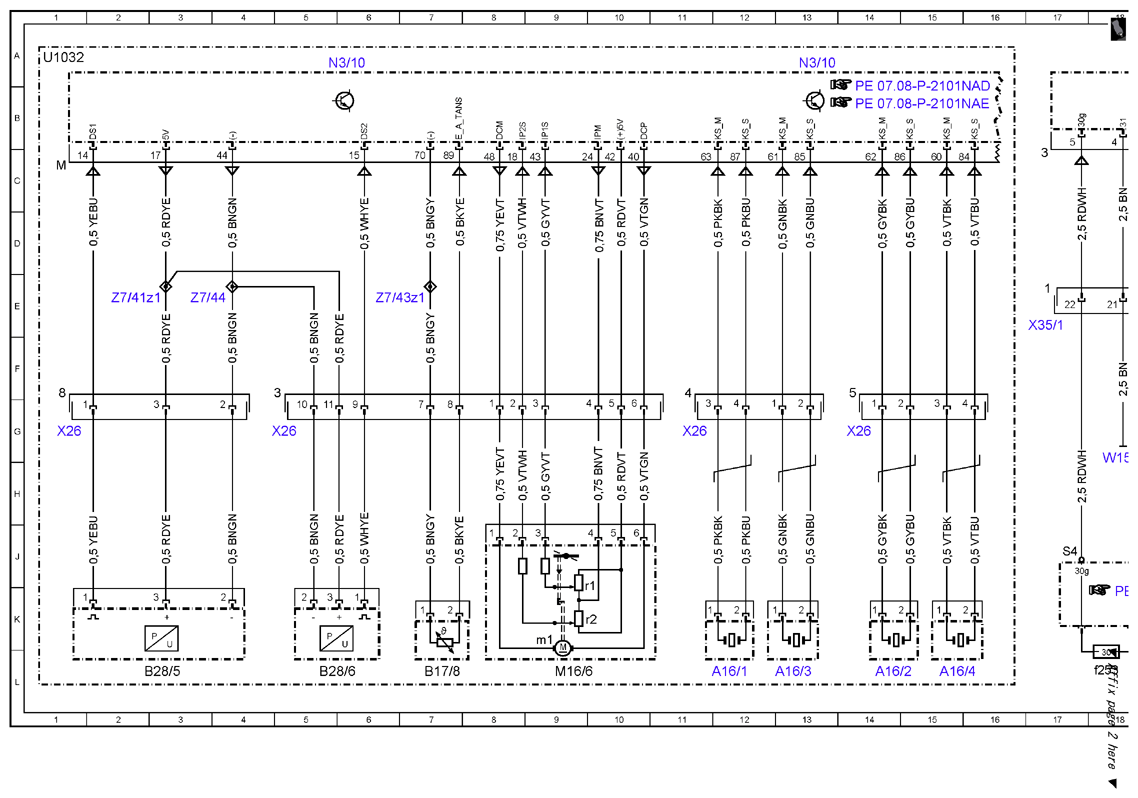

| A16/1 |
Knock sensor 1 |
12L |
| A16/2 |
Knock sensor 2 |
14L |
| A16/3 |
Knock sensor 3 |
13L |
| A16/4 |
Knock sensor 4 |
15L |

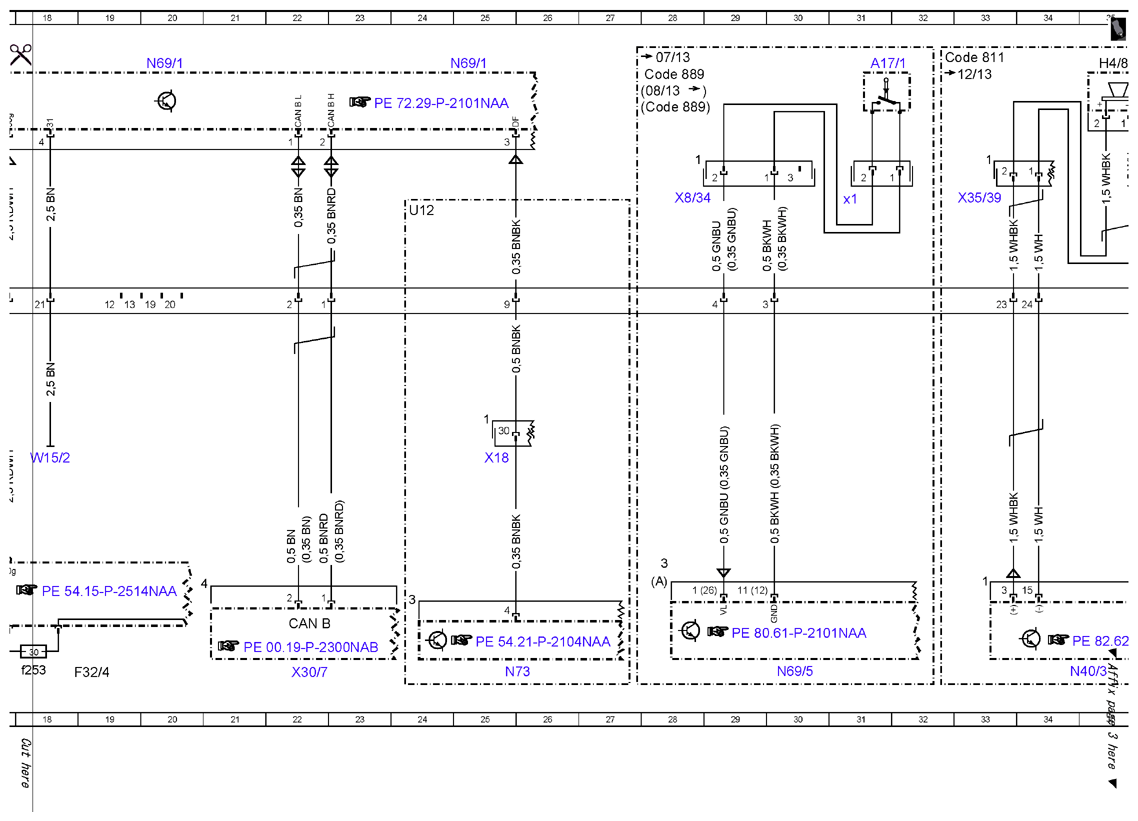

| A17/1 |
Left front KEYLESS GO door handle |
31A |
| A17/1x1 |
Left front KEYLESS GO door handle electrical connector |
31C |
| A2 |
Radio |
62L |
| A40/3 |
COMAND control unit |
65L |
| A40/3 |
COMAND control unit |
62L |
| B17/8 |
Charge air temperature sensor |
7L |
| B28/5 |
Pressure sensor downstream of air filter |
3L |
| B28/6 |
Pressure sensor upstream of throttle valve |
5L |

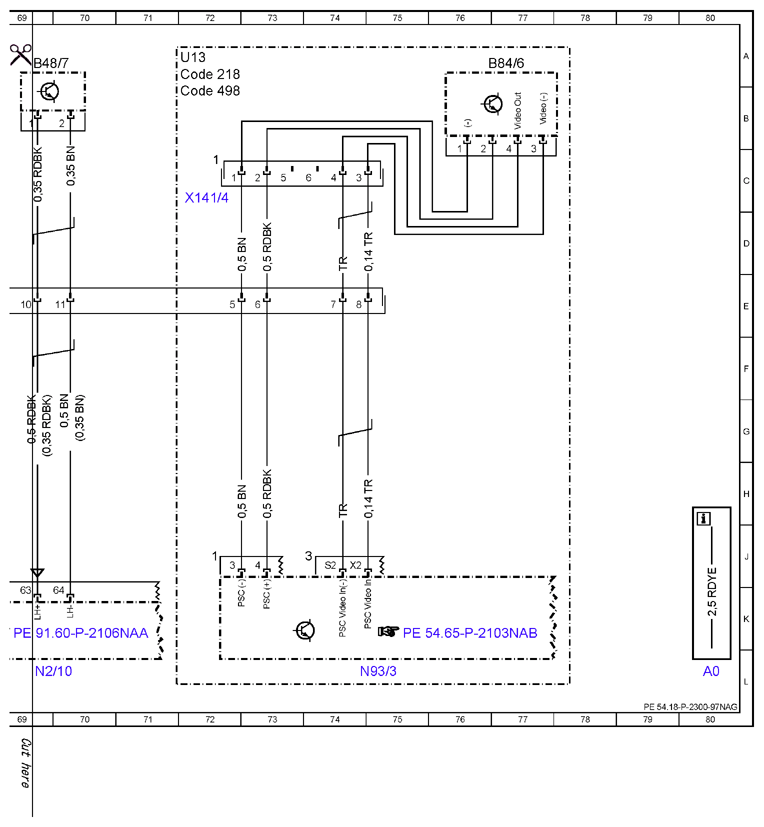

| B48/7 |
Left front door pressure sensor |
69A |
| B84/6 |
Passenger-side outside mirror backup camera |
77A |
| CAN B |
Interior CAN |
22K |
| Code 218 |
Backup camera |
72A |
| Code 494 |
USA version |
64F |
| Code 498 |
Japan version |
64G |
| Code 498 |
Japan version |
72B |

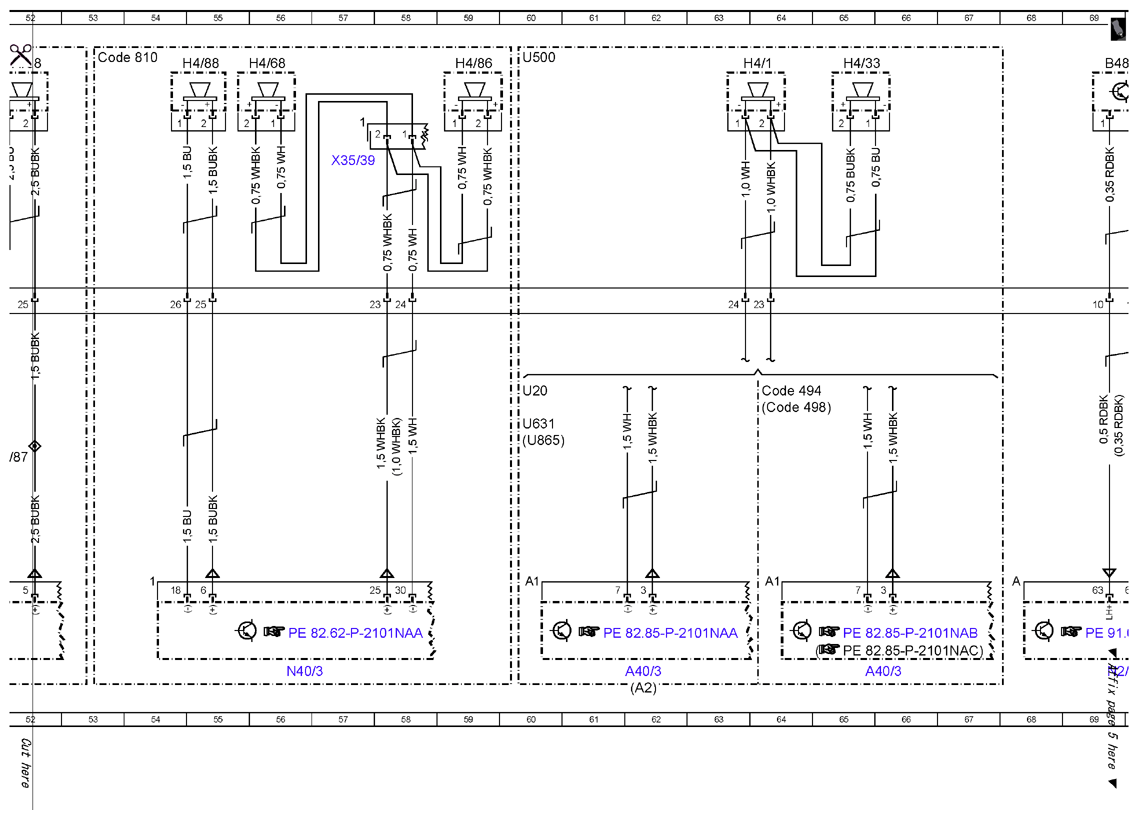

| Code 810 |
Sound system |
53A |
| Code 811 |
Extended sound system |
32A |
| Code 811 |
Extended sound system |
41A |
| Code 889 |
KEYLESS-GO |
27B |
| Code 889 |
KEYLESS-GO |
28A |
| F32/4 |
Interior prefuse box |
19L |
| F32/4f253 |
Fuse 253 |
18L |
| H4/1 |
Left front door speaker |
63A |

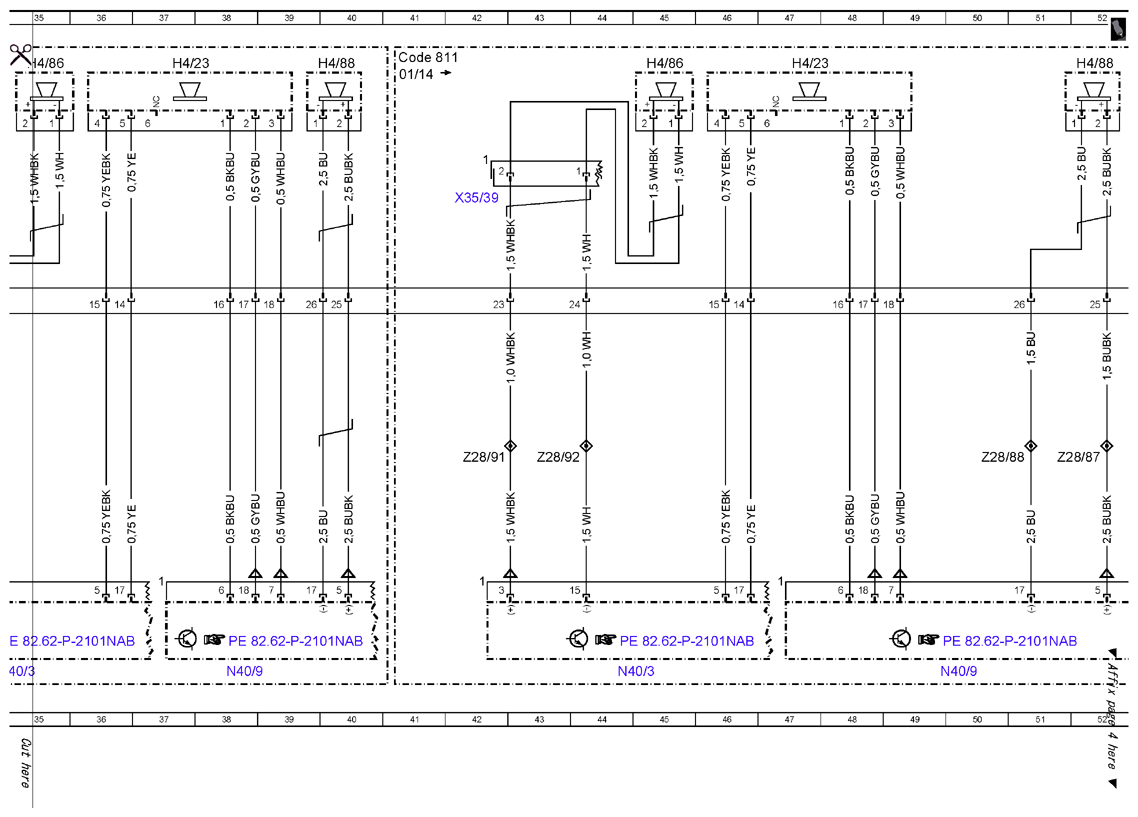

| H4/23 |
Left front door speaker, mirror triangle |
37A |
| H4/23 |
Left front door speaker, mirror triangle |
47A |
| H4/33 |
Left front door tweeter |
65A |
| H4/68 |
Left front door sound system tweeter |
56A |
| H4/86 |
Left front door midrange speaker |
35A |
| H4/86 |
Left front door midrange speaker |
59A |
| H4/86 |
Left front door midrange speaker |
45A |
| H4/88 |
Left front door bass speaker |
40A |
| H4/88 |
Left front door bass speaker |
55A |
| H4/88 |
Left front door bass speaker |
52A |
| M16/6 |
Throttle valve actuator |
9L |
| M16/6m1 |
Actuator motor |
9K |
| M16/6r1 |
Actual value potentiometer 1 |
9K |
| M16/6r2 |
Actual value potentiometer 2 |
10K |
| N2/10 |
Supplemental restraint system control unit |
69L |
| N3/10 |
ME-SFI [ME] control unit |
6A |
| N3/10 |
ME-SFI [ME] control unit |
13A |
| N40/3 |
Sound system amplifier control unit |
35L |
| N40/3 |
Sound system amplifier control unit |
56L |
| N40/3 |
Sound system amplifier control unit |
44L |
| N40/9 |
Bass speaker amplifier |
38L |
| N40/9 |
Bass speaker amplifier |
50L |
| N69/1 |
Left front door control unit |
25A |
| N69/1 |
Left front door control unit |
20A |
| N69/5 |
KEYLESS-GO control unit |
30L |
| N73 |
Electronic ignition switch control unit |
25L |
| N93/3 |
Reversing camera electronics |
75L |
| U1032 |
Valid for engine 278 and 157 |
1A |
| U12 |
Valid for left-hand drive vehicles |
24D |
| U13 |
Valid for right-hand drive vehicles |
72A |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
60F |
| U500 |
Not valid for sound system |
60A |
| U631 |
Valid for COMAND |
60G |
| U865 |
Valid for Audio 20 |
60G |
| W15/2 |
Left footwell ground point |
18H |
| X141/4 |
Left outside mirror camera electrical connector |
72C |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
25G |
| X26 |
Interior and engine wiring harness electrical connector |
1G |
| X26 |
Interior and engine wiring harness electrical connector |
5G |
| X26 |
Interior and engine wiring harness electrical connector |
11G |
| X26 |
Interior and engine wiring harness electrical connector |
14G |
| X30/7 |
Left potential distributor electrical connector (CAN) |
22L |
| X35/1 |
Left front door electrical connector |
17E |
| X35/39 |
Left front door midrange speaker electrical connector |
33C |
| X35/39 |
Left front door midrange speaker electrical connector |
57C |
| X35/39 |
Left front door midrange speaker electrical connector |
42C |
| X8/34 |
Left front KEYLESS GO door handle electrical connector |
28C |
| Z28/87 |
Left front door bass speaker connector sleeve (+) |
52G |
| Z28/88 |
Left front door bass speaker connector sleeve (-) |
50G |
| Z28/91 |
Left front door midrange speaker connector sleeve (+) |
42G |
| Z28/92 |
Left front door midrange speaker connector sleeve (-) |
43G |
| Z7/41z1 |
Sensor power supply connector sleeve |
2E |
| Z7/43z1 |
Sensor ground line connector sleeve |
7E |
| Z7/44 |
Sensor ground connector sleeve |
3E |
