| 1 |
COLLISION PREVENTION ASSIST, status |
10B |
| 1 |
COLLISION PREVENTION ASSIST, status |
11D |
| 10 |
Brake pedal, status |
10E |
| 10 |
Brake pedal, status |
13C |
| 11 |
Combination switch, status |
10K |
| 11 |
Combination switch, status |
12H |
| 12 |
Warning tone, request |
7B |
| 13 |
Warning lamp, request |
7B |
| 15 |
Front axle brake pressure sensor, signal |
4G |
| 16 |
Braking torque, signal |
14D |
| 16 |
Braking torque, signal |
10F |
| 17 |
Service brake braking torque, request |
7F |
| 18 |
Traction system hydraulic unit, actuation |
2F |
| 19 |
Engine torque, reduce request |
22J |
| 19 |
Engine torque, reduce request |
16G |
| 2 |
Engine running, signal |
13F |
| 2 |
Engine running, signal |
19H |
| 3 |
Drivetrain operational, signal |
20H |
| 3 |
Drivetrain operational, signal |
14F |
| 4 |
Wheel speed, signal |
12D |
| 4 |
Wheel speed, signal |
9F |
| 5 |
Wheel rotation direction, signal |
13D |
| 5 |
Wheel rotation direction, signal |
10E |
| 6 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
13D |
| 6 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
5G |
| 6 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
10F |
| 7 |
Steering wheel angle sensor, signal |
13K |
| 8 |
Steering wheel angle, signal |
11H |
| 9 |
Accelerator pedal position, signal |
20H |
| 9 |
Accelerator pedal position, signal |
14F |
| A1 |
Instrument cluster |
6B |
| A1e59 |
DISTRONIC warning lamp |
4B |
| A1h1 |
Warning buzzer |
6A |
| A7/3 |
Traction system hydraulic unit |
2E |
| A7/3b1 |
Front axle brake pressure sensor |
1F |

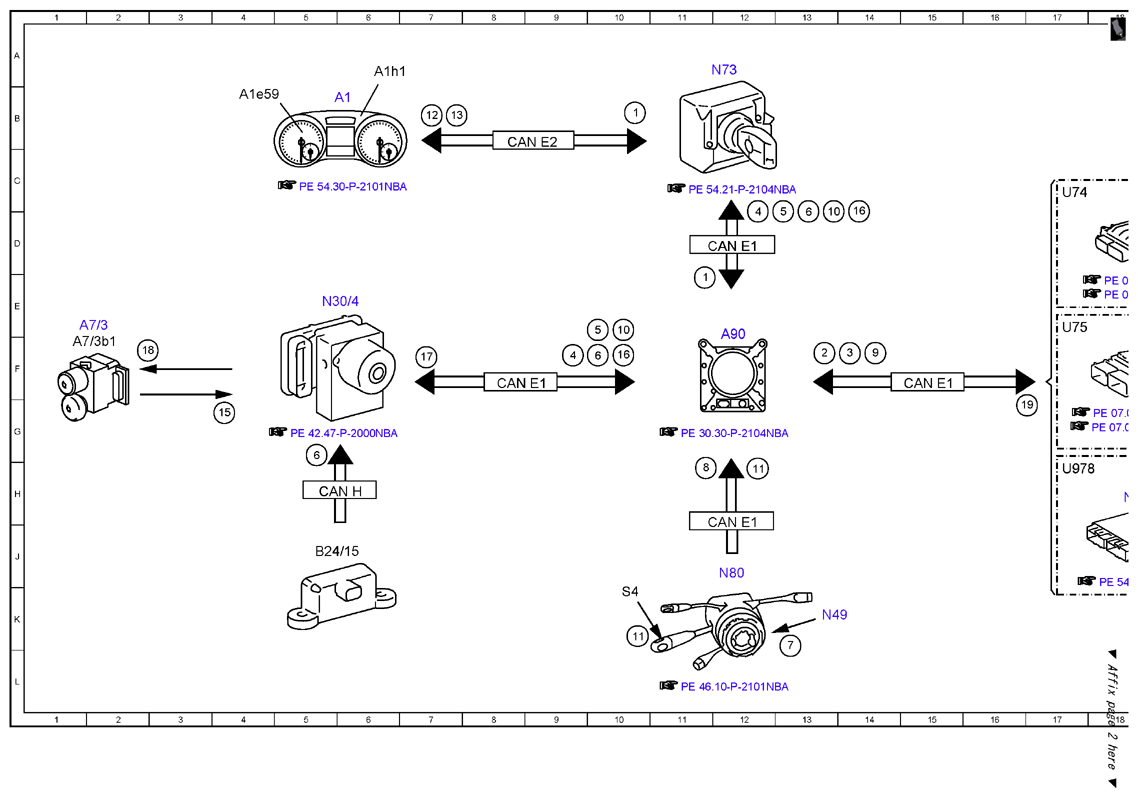

| A90 |
COLLISION PREVENTION ASSIST controller unit |
12F |
| B24/15 |
Yaw rate sensor for lateral and longitudinal acceleration |
5J |
| CAN C1 |
Engine CAN |
20J |
| CAN E1 |
Chassis CAN 1 |
15F |
| CAN E1 |
Chassis CAN 1 |
12D |
| CAN E1 |
Chassis CAN 1 |
8F |
| CAN E1 |
Chassis CAN 1 |
12J |
| CAN E2 |
Chassis CAN 2 |
8B |
| CAN H |
Vehicle dynamics CAN |
5H |

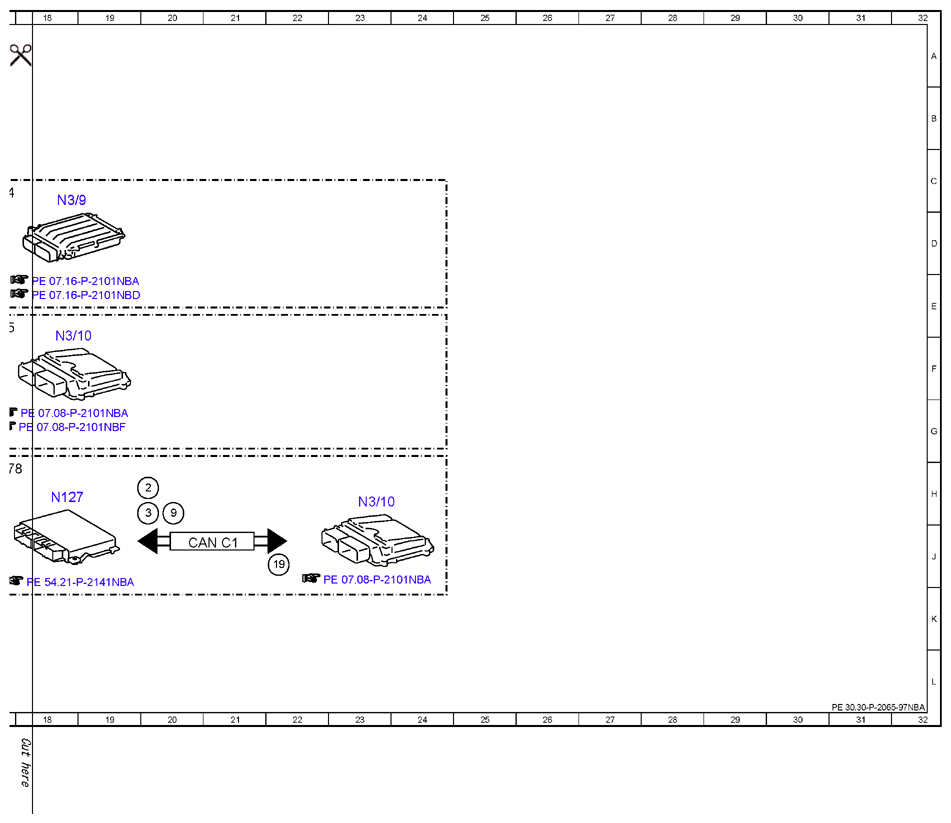

| N127 |
Drivetrain control unit |
18H |
| N3/10 |
ME-SFI [ME] control unit |
18F |
| N3/10 |
ME-SFI [ME] control unit |
23H |
| N3/9 |
CDI control unit |
18C |
| N30/4 |
Electronic Stability Program control unit |
5E |
| N49 |
Steering wheel angle sensor |
13K |
| N73 |
Electronic ignition switch control unit |
12A |
| N80 |
Steering column module control unit |
12J |
| S4 |
Combination switch |
10K |
| U74 |
Valid for diesel engines |
17C |
| U75 |
Valid for gasoline engines |
17E |
| U978 |
Valid for hybrid drive |
17H |
