Remove/install side paneling in trunk - AR68.30-P-4800GQX
MODEL 166.8

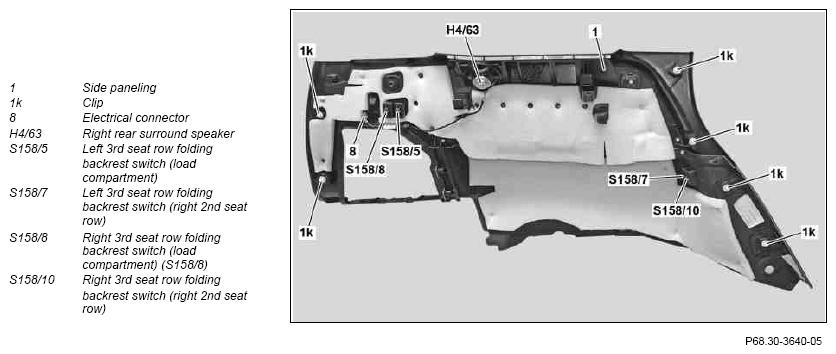

Shown on right side paneling in model 166.873
Fig 1: Identifying Side Paneling In Trunk Remove/Install Components - Shown On Right Side Paneling In Model 166.873

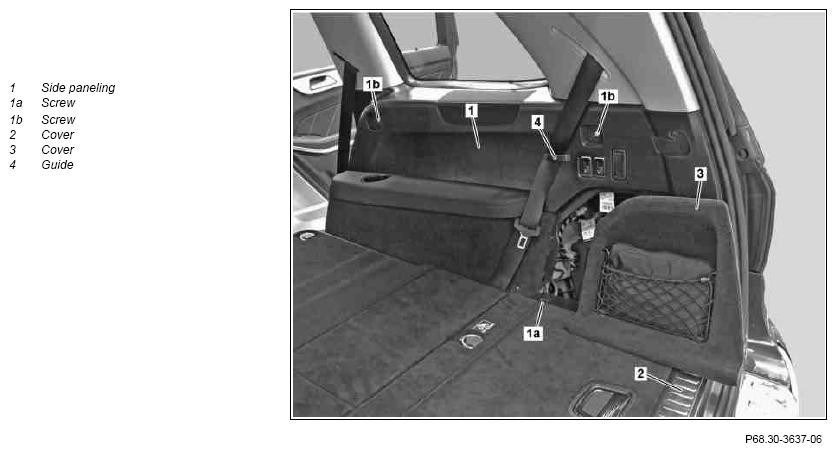

Shown on right side paneling in model 166.873
Fig 2: Identifying Side Paneling In Trunk Remove/Install Components - Shown On Right Side Paneling In Model 166.873

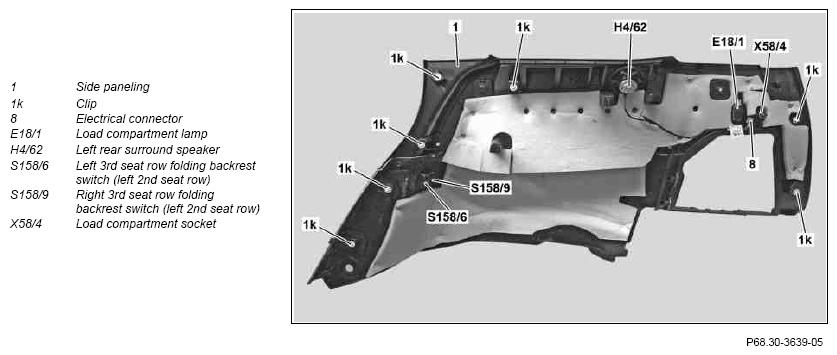

Shown on left side paneling in model 166.873
Fig 3: Identifying Side Paneling In Trunk Remove/Install Components - Shown On Left Side Paneling In Model 166.873

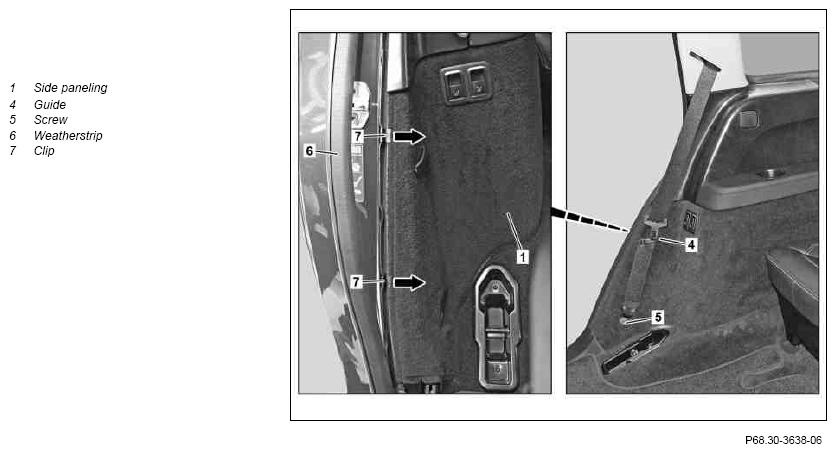

Shown on right side paneling in model 166.873
| Remove/install | |||
| 1 | Fold rear seat to the front | ||
| 2 | Remove load compartment cover | ||
| 3 | Fold up backrest in 3rd seat row | ||
| 4 | Lift load compartment floor and remove cover (2) from rear center section | ||
| 5 | Remove cover (3) | Figure | |
| 6 | Remove bolt (1) | ||
| 7 | Remove belt straps from guides (4) | ||
| 8 | Pry off covers above bolts (1b) and unscrew bolts (1b) | Figure | |
| 9 | Unscrew bolt (5) from belt end fitting | *BA91.40-P-1007-01R | |
| 10 | Remove rear door sill molding | AR68.30-P-4100GQ | |
| 11 | Remove weather strip (6) in area of side paneling (1) | ||
| 12 | Pry out side paneling (1) in direction of clamps (7) | Figure | |
| 13 | Pry side paneling (1) out of body | ||
| Figure | |||
| 14.1 | Unlock electrical connectors on left 3rd seat row folding backrest switch (2nd seat row on right) (S158/7), right 3rd seat row folding backrest switch (2nd seat row on right) (S158/10), left 3rd seat row folding backrest switch (cargo area) (S158/5) and right 3rd seat row folding backrest switch (cargo area) (S158/8) and disconnect | when removing right side paneling (1) | |
| 14.2 | Unlock electrical connectors on left 3rd seat row folding backrest switch (2nd seat row on left) (S158/6), right 3rd seat row folding backrest switch (2nd seat row on left) (S158/9), cargo area power outlet (X58/4) and cargo area lamp (E18/1) and disconnect | When removing left side paneling (1) | |
| 15 | Unlock electrical connector (8) from feed line for left rear surround speaker (H4/62) or right rear surround speaker (H4/63) and disconnect | MODEL 166.8 with CODE 810 (Sound system) with CODE 811 (Advanced sound system) |
|
| 16 | Remove side paneling (1) | ||
| 17 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| *BA91.40-P-1007-01R | Bolt, belt end fitting/seat belt lock, rear seat on body/seat | Nm | 35 |
