Remove/Install Radar Sensors Control Unit - AR54.65-P-0040GQ
MODEL 166 with CODE (233) Distronic Plus with CODE (237) Active Blind Spot Assist with CODE (238) Active Lane Keeping Assist

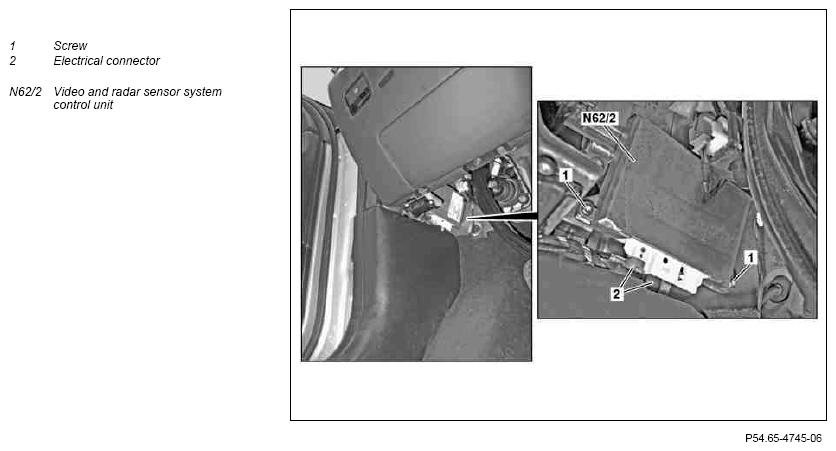

Shows model 166.024
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect STAR DIAGNOSIS and perform initial startup of video and radar sensor system control unit (N62/2) | When replacing the video and radar sensor system control unit (N62/2) |
AD00.00-P-2000-04A |
| 2 | Switch off ignition | ||
| 3 | Remove left-hand panel under dashboard | AR68.10-P-1500GQ | |
| 4 | Remove bolt (1) | ||
| 5 | Release and detach electrical connections (2), then remove video and radar sensor system control unit (N62/2) | ||
| 6 | Install in the reverse order |
