Remove/install dashboard lower section on driver side - AR68.10-P-1505GQ

MODEL 166

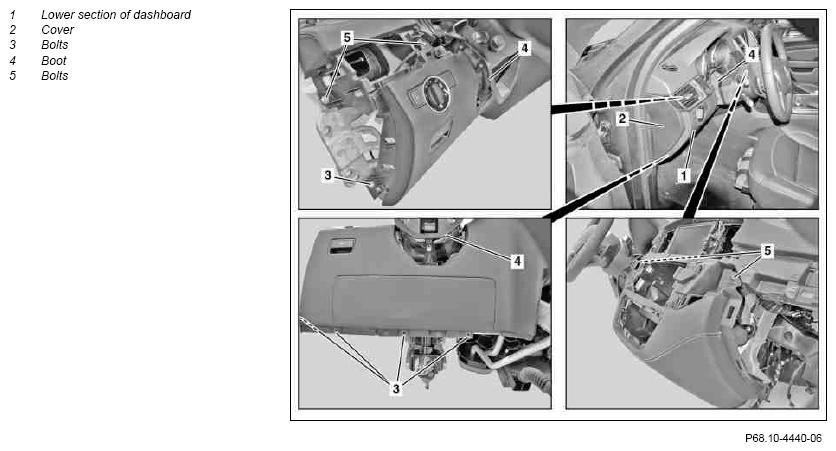

Fig 1: Identifying Dashboard Lower Section On Driver Side Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

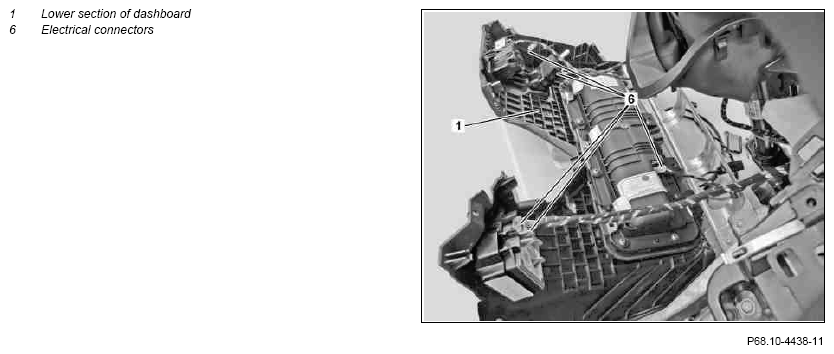

Fig 2: Identifying Dashboard Lower Section On Driver Side Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move steering wheel to rearmost position
2	Switch off ignition and remove transmitter key from electronic ignition lock control unit	On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
3	Detach ground line from battery		AR54.10-P-0003GZ
	Notes on battery		AH54.10-P-0001-01A
4	Remove center console		AR68.20-P-2000GQ
5	Remove glove box		AR68.10-P-1400GQ
6	Remove left and right trim strip from instrument panel		AR68.10-P-1180GQ
7	Unclip paneling (2)		Figure
8	Remove boot (4) from instrument panel bottom section (1)
9	Remove cover on left below instrument panel bottom section (1)		AR68.10-P-1500GQ
10	Unscrew lower bolts (3) from instrument panel bottom section (1)
11	Unscrew upper bolts (5) from instrument panel bottom section (1)
12	Lower instrument panel bottom section (1)
13	Separate electrical connectors (6)
14	Remove dashboard lower section (1)
15	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
