Notes on measuring tire tread depth - AH40.10-P-0006-01T
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL ALL
The brake pad check gauge (1) is suitable for measuring:
- tire tread depth
- Brake lining thickness of outer brake pads (not all models)

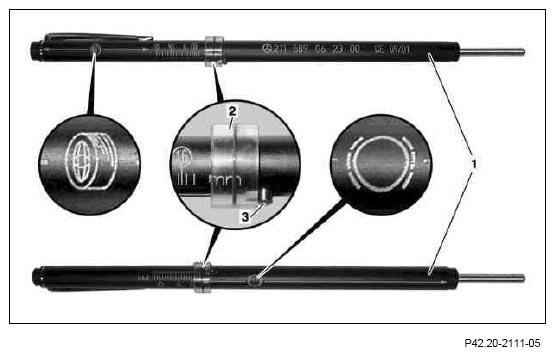

The printed-on symbols and arrows identify that side of the brake pad check gauge (1) which is to be used for the corresponding measurement.
Information for measuring tire tread depth:
Move slide (2) before each measurement on the driver (3) up to contact surface, Otherwise measurement errors can occur.

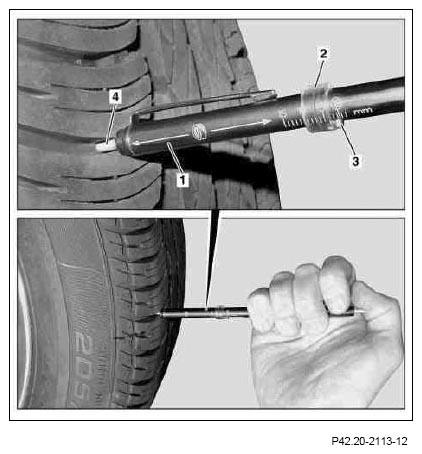

Mount the brake pad check gauge (1) on two tread blocks at the point of maximum tire wear.
Push the feeler gauge (4) into the tread groove until it touches the groove bottom.
The measuring drift (4) must not contact the wear marking. Remove brake pad check gauge (1) for reading off the measured value.
