Loosening and tightening regulation for camshaft bearing caps - AH05.20-P-0300-01OLP
WARNING: This page does not describe the selected car, but rather 196 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz S65 AMG, 2019 Mercedes-Benz SLC300, 2019 Mercedes-Benz SL63 AMG, and 2019 Mercedes-Benz SL550. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 622, 626
Loosening and tightening specification

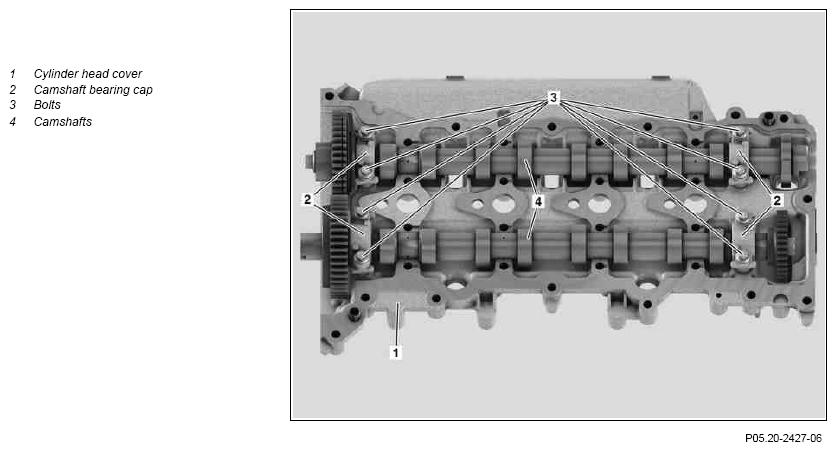

Mark camshaft bearing cap (2).
The contact surfaces on the cylinder head cover (1) and on the camshaft bearing caps (2) must be cleaned.
Coat camshaft (4) in area of camshaft bearing cap (2) with engine oil before installing.
Before fitting the bolts (3) make sure that the camshaft bearing caps (2) make contact with the cylinder head cover (1).
Position bolts (3) by hand.
When tightening the bolts (3) make sure that the camshaft bearing caps (2) are not tilted.
