Key to body plate - AH00.00-P-4000-01A

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 100, 107, 108, 109, 111, 112, 113, 114, 115, 116, 123, 124, 126, 129, 140, 163, 168, 170, 201, 202, 208, 210

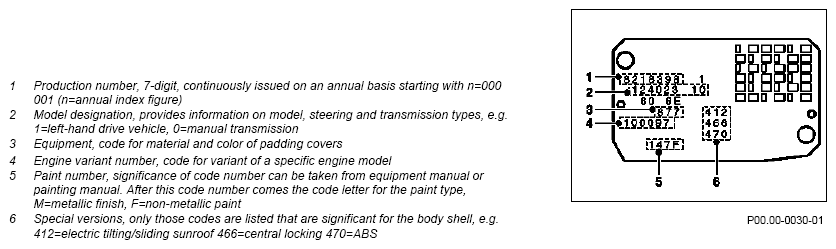

Fig 1: Identifying Vehicle Body Plate Description
G10035741Courtesy of MERCEDES-BENZ USA

IMPORTANT The body plate is bolted on to the crossmember above the radiator.

It will be mounted differently depending on the factory, but basically contains the same data.
