Remove/install sensors for Blind Spot Assist - AR54.71-P-0100ES
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2 with CODE 234 (Blind Spot Monitoring)
MODEL 212.2 with CODE 237 (Active Blind Spot Assist)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

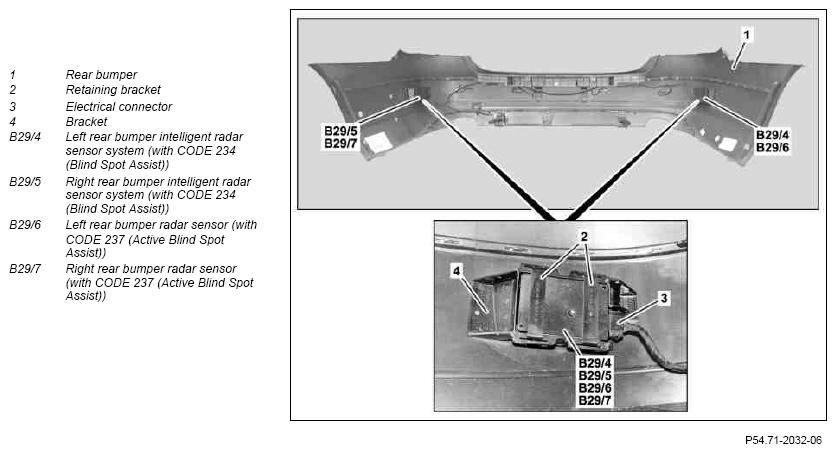

| 1 | Remove rear bumper (1) | AR88.20-P-2200EW | |
| 2 | Unclip mounting frame bow (2) from the top left or right bracket (4) | ||
| 3.1 | Detach electrical connection (3) at left rear bumper radar sensor (B29/6) or right rear bumper radar sensor (B29/7) | MODEL 212.2 with CODE 237 (Active Blind Spot Assist) |
|
| 3.2 | Detach electrical connection (3) at left rear bumper intelligent radar sensor (B29/4) or right rear bumper intelligent radar sensor (B29/5) | MODEL 212.2 with CODE 234 (Blind Spot Monitoring) |
|
| 4.1 | Remove left rear bumper radar sensor (B29/6) or right rear bumper radar sensor (B29/7) from bracket (4) | MODEL 212.2 with CODE 237 (Active Blind Spot Assist) |
|
| 4.2 | Remove left rear bumper intelligent radar sensor (B29/4) or right rear bumper intelligent radar sensor (B29/5) from bracket (4) | MODEL 212.2 with CODE 234 (Blind Spot Monitoring) |
|
| 5 | Install in the reverse order | ||
| 6 | Connect diagnostic system, read out fault memory and delete if necessary | ||
