Remove/install sensor for engine oil temperature - AR18.40-P-4123SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 212, 218, 221

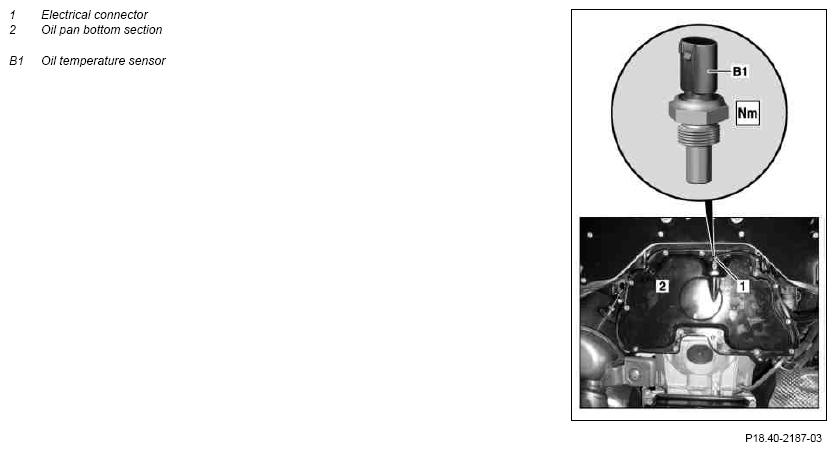

Fig 1: Sensor For Engine Oil Temperature Remove/Install Components
G09975253Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
1 Remove bottom sections of soundproofing Model 221 except CODE (Z07) Top protection AR61.20-P-1105SX
Model 207, 212, 218 AR94.30-P-5300EW
2 Drain/collect engine oil INSTALLATION NOTES Replace sealing ring of oil drain screw to prevent leaks.
TORQUE SPECIFICATION *BA01.45-P-1006-01Q
FLUID SPECIFICATION Without code (474) Particulate filter *BF18.00-P-1001-01A
FLUID SPECIFICATION With code (474) Particulate filter *BF18.00-P-1001-01S
3 Disconnect electrical connector (1) from oil temperature sensor (B1)
4 Remove oil temperature sensor (B1) INSTALLATION NOTES Replace sealing ring to prevent leaks.
TORQUE SPECIFICATION *BA18.40-P-1002-01M
5 Install in the reverse order
INSPECT Checking
6 Check/correct engine oil level IMPORTANT Check engine oil level with engine at operating temperature. AR18.00-P-3035-01SXI
FLUID SPECIFICATION Without code (474) Particulate filter *BF18.00-P-1001-01A
With code (474) Particulate filter *BF18.00-P-1001-01S
7 Check for leaks with engine running IMPORTANT Carry out a visual inspection only.
OIL PAN

Number Designation Engine 642
BA01.45-P-1006-01Q Oil drain screw on oil pan M12 Nm 30
M24 Nm 45
OIL LEVEL/OIL PRESSURE SENSOR

Number Designation Engine 642
BA18.40-P-1002-01M Engine oil temperature sensor to oil pan bottom section Nm 11
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 without particulate filter up to engine no. 64293040458147 Engine 642.930 without particulate filter as of engine no. 64293040458148 Engine 642.932/961 without particulate filter
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specification Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 with particulate filter up to engine No. 64293040458147 Engine 642.930 with particulate filter starting from engine No. 64293040458148 Engine 642.932/961 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.826/830/832/834/836/838/850/852/853/854/856/858/862/868 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 8.0
Specifications for Operating Fluids Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
