Remove/install sensor for engine oil temperature - AR18.40-P-4123CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

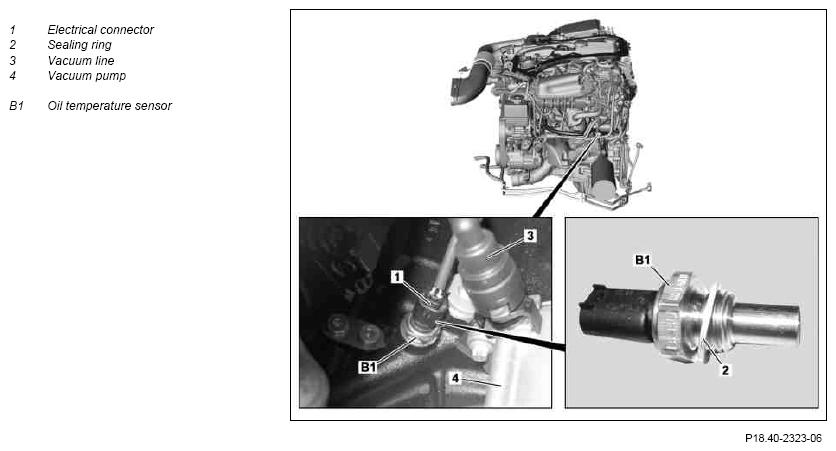

Shown on engine 651
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 1.1 | Remove corresponding underfloor paneling | Model 166.0 | AR61.30-P-1001GQ |
| 1.2 | Remove bottom part of noise encapsulation | Model 172.4 | AR94.30-P-5300W |
| Model 204.0/2/3, 207, 212, 218 | AR94.30-P-5300EW | ||
| 1.3 | Remove lower engine compartment paneling | Model 204.9 | AR61.20-P-1105CY |
| Model 221 except CODE (Z07) Top protection | AR61.20-P-1105SX | ||
| 2 | Detach vacuum line (3) at vacuum pump (4). | Model 166, 172 | |
| 3 | Detach the electrical connector (1) at oil temperature sensor (B1) | ||
| 4 | Remove oil temperature sensor (B1) | ||
| *BA15.60-P-1001-01D | |||
| 5 | Install in the reverse order | ||
| 6 | Check for leaks with engine running |
TEMPERATURE SENSOR
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA15.60-P-1001-01D | Oil-temperature temperature sensor on crankcase | Nm | 26 |
