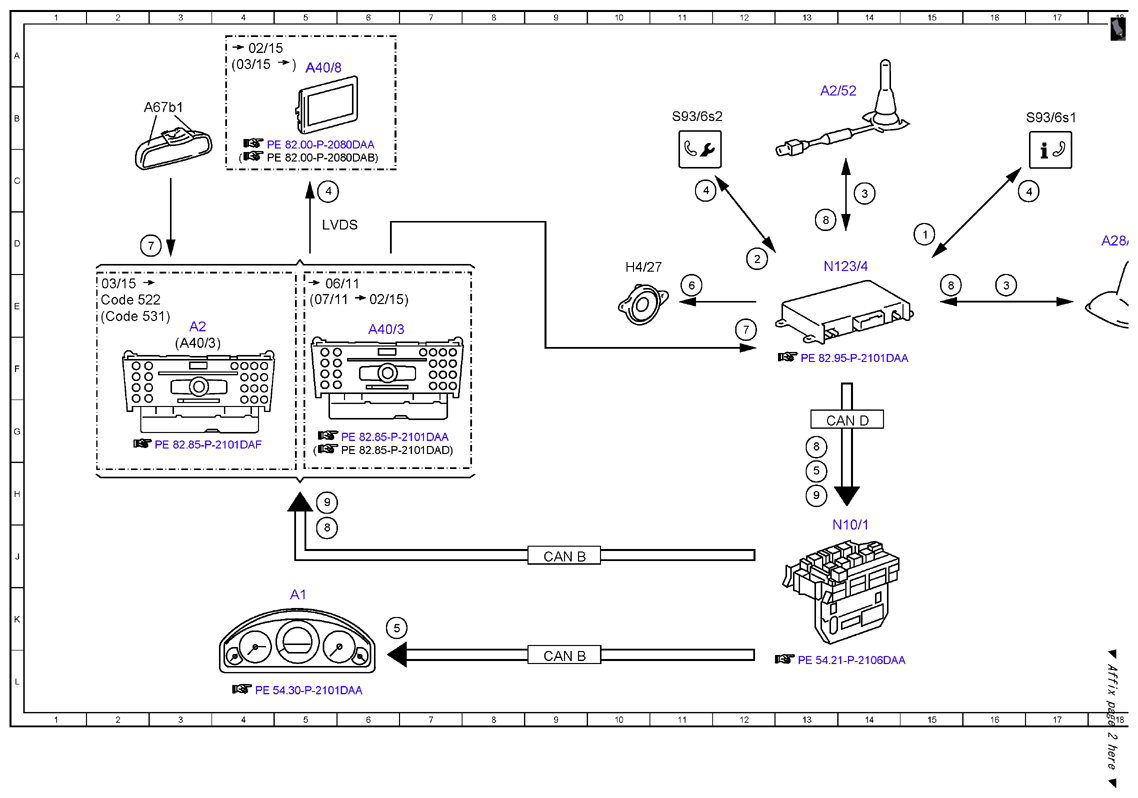

Electrical function schematic for MB information and breakdown assistance function - PE82.95-P-2073-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 348 (Emergency call/assistant system)
MODEL 212 with CODE 359 (TELE AID emergency call system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | MB-Info, signal | 15D |
| 2 | Breakdown assistance, signal | 12D |
| 3 | Telephone, signal | 14C |
| 3 | Telephone, signal | 16E |
| 4 | Audio/COMAND display, message | 5C |
| 4 | Audio/COMAND display, message | 17C |
| 5 | Instrument cluster, message | 6K |
| 5 | Instrument cluster, message | 13H |
| 6 | Voice output, signal | 11E |
| 7 | Voice input, signal | 12E |
| 7 | Voice input, signal | 3D |
| 8 | Navigation data, signal | 5J |
| 8 | Navigation data, signal | 13D |
| 8 | Navigation data, signal | 15E |
| 8 | Navigation data, signal | 13G |
| 9 | Audio/COMAND display, message | 5H |
| 9 | Audio/COMAND display, message | 13H |
| A1 | Instrument cluster | 5K |
| A2 | Radio | 3E |
| A2/52 | Emergency call system antenna | 13B |

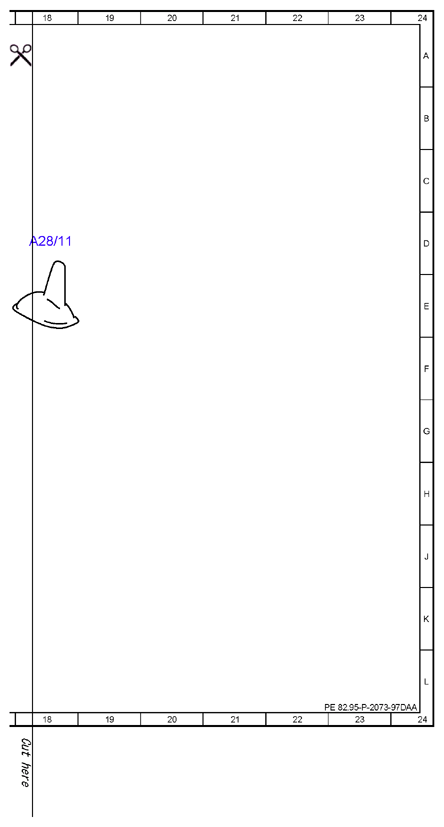

| A28/11 | Multifunction antenna | 18D |
| A40/3 | COMAND control unit | 6E |
| A40/3 | COMAND control unit | 3F |
| A40/8 | Audio/COMAND display | 5A |
| A67b1 | Hands-free system microphone | 3B |
| CAN B | Interior CAN | 9L |
| CAN B | Interior CAN | 9J |
| CAN D | Diagnostic CAN | 14G |
| Code 522 | Audio 20 radio | 2E |
| Code 531 | COMAND APS | 2E |
| H4/27 | Center instrument panel speaker | 10D |
| LVDS | Low voltage differential signal | 5D |
| N10/1 | Front SAM control unit with fuse and relay module | 14J |
| N123/4 | Emergency call system control unit | 13D |
| S93/6s1 | MB-Info button | 17B |
| S93/6s2 | Breakdown assistance button | 11B |
