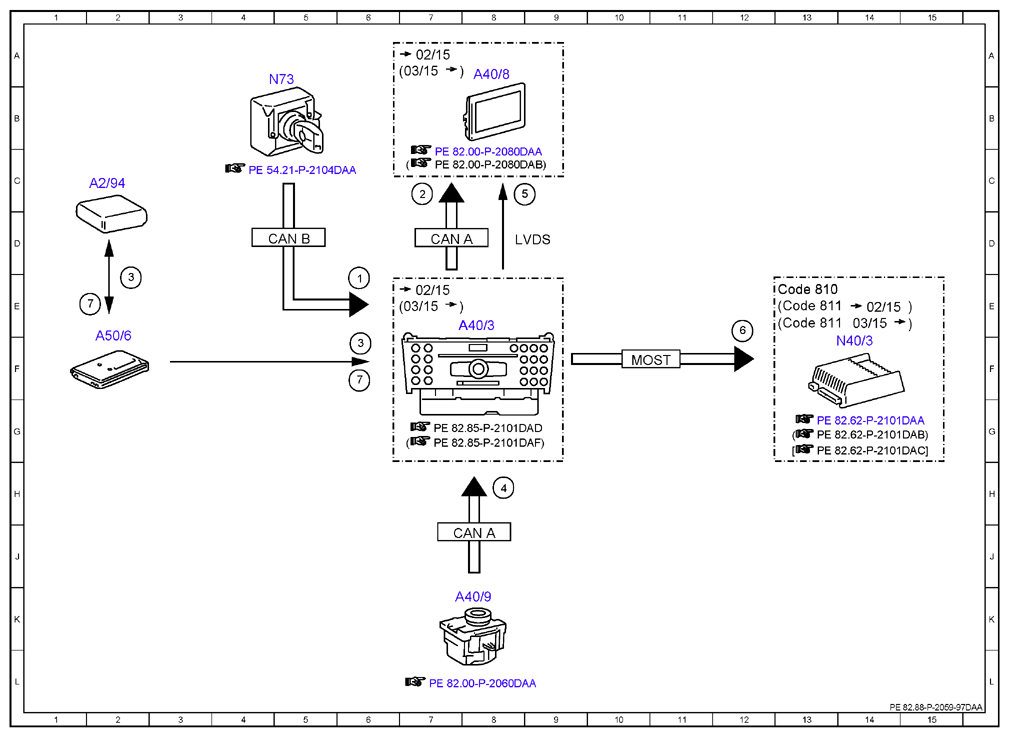

Electrical function schematic for Dedicated Short-Range Communications - PE82.88-P-2059-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2013 with CODE 498 (Japanese version) Dealer option
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R/circuit 15, status ON | 6E |
| 2 | Switch-on request, signal | 7C |
| 3 | Electronic Toll Collection (ETC), signal | 2E |
| 3 | Electronic Toll Collection (ETC), signal | 6F |
| 4 | Audio/COMAND controller, request | 8H |
| 5 | Audio/COMAND display, signal | 8C |
| 6 | Audio, signal | 12E |
| 7 | VICS, signal | 6F |
| 7 | VICS, signal | 2E |
| A2/94 | ETC/DSRC antenna | 2C |
| A40/3 | COMAND control unit | 7E |
| A40/8 | Audio/COMAND display | 8A |
| A40/9 | Audio/COMAND control panel | 7K |
| A50/6 | Dedicated Short-Range Communications control unit | 2F |
| CAN A | Telematics CAN | 8J |
| CAN A | Telematics CAN | 7D |
| CAN B | Interior CAN | 5D |
| Code 810 | Sound system | 13E |
| Code 811 | Extended sound system | 13E |
| Code 811 | Extended sound system | 13E |
| LVDS | Low voltage differential signal | 9D |
| MOST | Media Oriented System Transport | 10F |
| N40/3 | Sound system amplifier control unit | 14F |
| N73 | Electronic ignition switch control unit | 4A |
