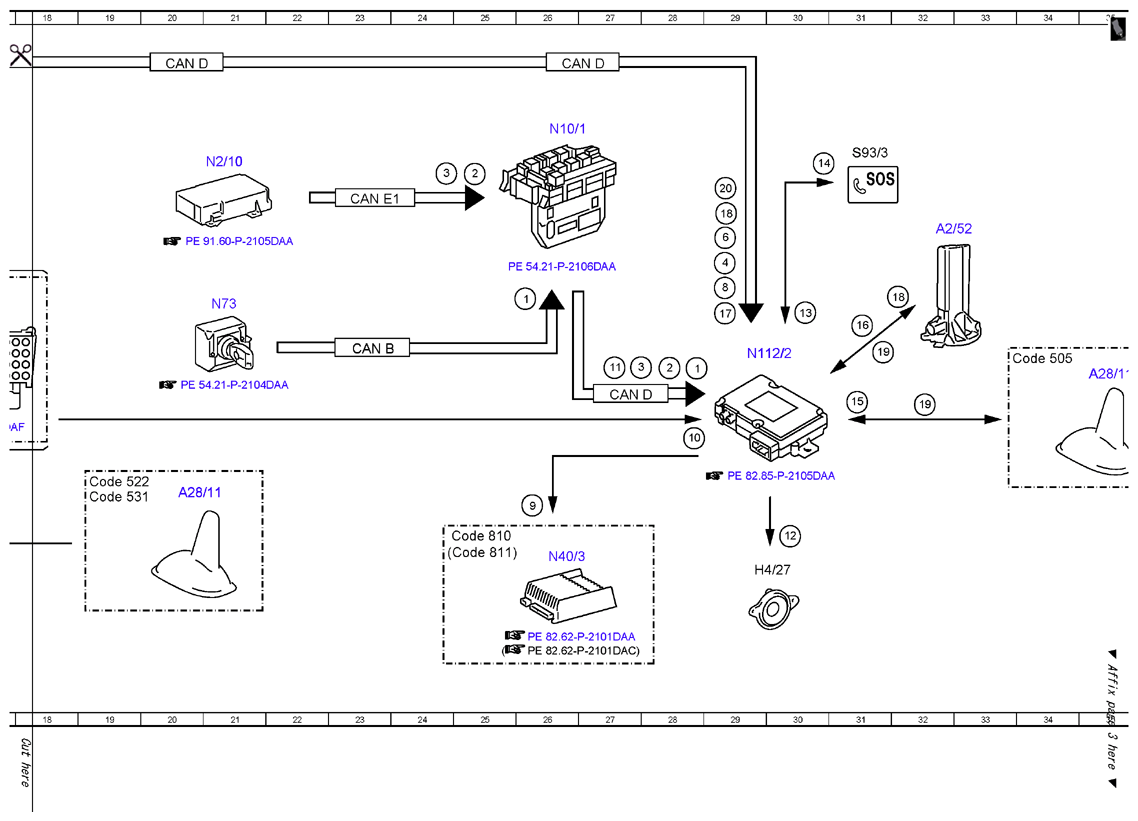

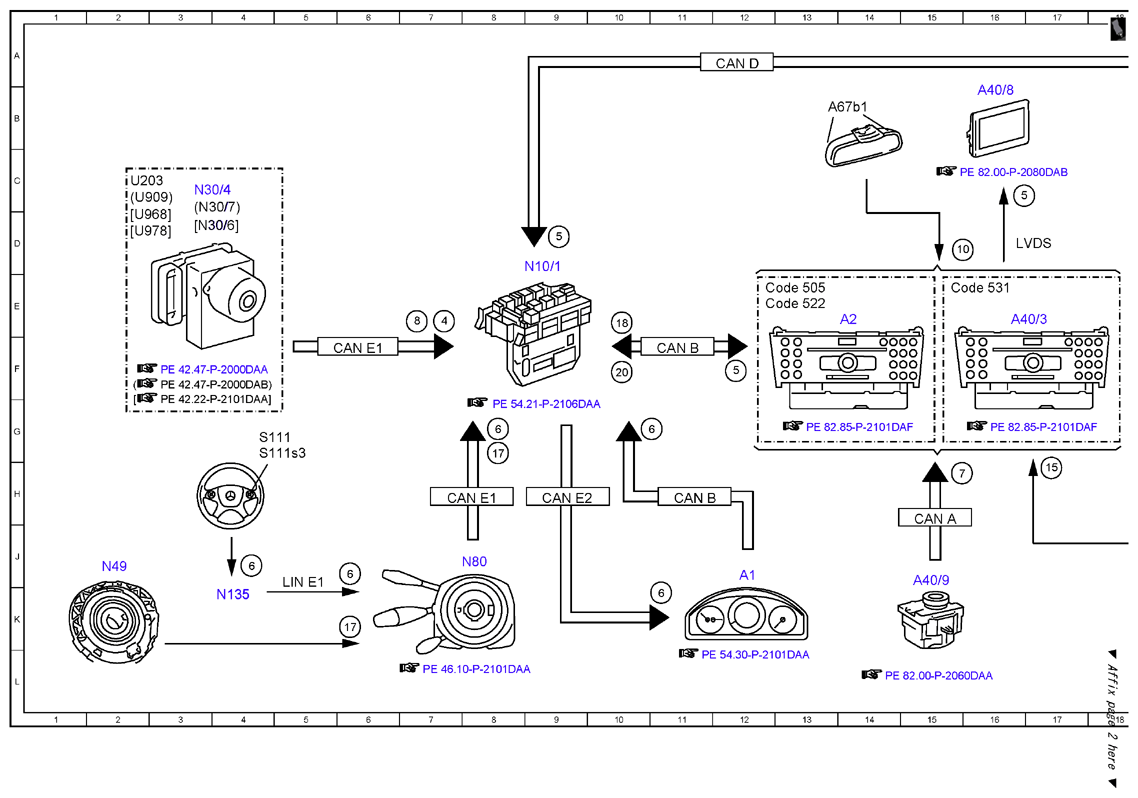

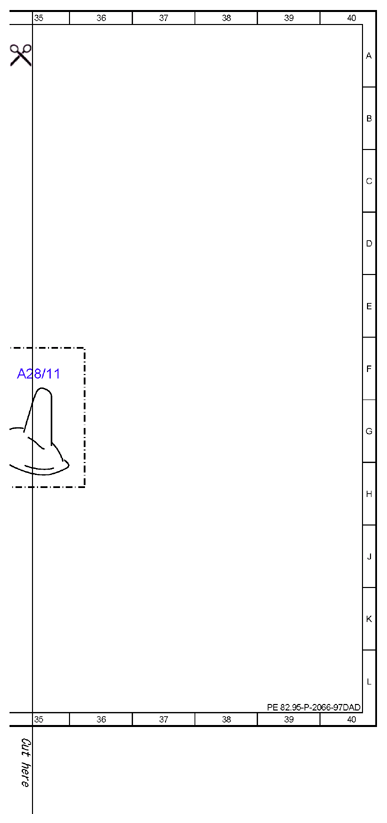

Electrical function diagram for manual or automatic emergency call, function - PE82.95-P-2066-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 3/2/15 as of model year 2016 with CODE 350 (Ecall emergency call system, Europe, gen. 3) without CODE 348 (Emergency call/assistant system) without CODE 359 (TELE AID emergency call system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 26E |
| 1 | Circuit 15R, status | 28F |
| 10 | Voice input, signal | 15D |
| 10 | Voice input, signal | 28G |
| 11 | Central locking emergency opening, signal | 27F |
| 12 | Voice output, signal | 30J |
| 13 | Manual emergency call, signal | 30E |
| 14 | Status indication, signal | 30C |
| 15 | GPS, signal | 31G |
| 15 | GPS, signal | 17H |
| 16 | Telephone, signal | 31E |
| 17 | Steering angle sensor, signal | 8G |
| 17 | Steering angle sensor, signal | 29E |
| 17 | Steering angle sensor, signal | 6K |
| 18 | Position data, signal | 10E |
| 18 | Position data, signal | 31E |
| 18 | Position data, signal | 29C |
| 19 | Check signal, signal | 31F |
| 19 | Check signal, signal | 32G |
| 2 | Readiness, signal | 25C |
| 2 | Readiness, signal | 28F |
| 20 | Operation, signal | 10F |
| 20 | Operation, signal | 29C |
| 3 | Crash, signal | 24C |
| 3 | Crash, signal | 27F |
| 4 | Yaw rate, signal | 29D |
| 4 | Yaw rate, signal | 7E |
| 5 | Audio/COMAND display, message | 16C |
| 5 | Audio/COMAND display, message | 12F |
| 5 | Audio/COMAND display, message | 9D |
| 6 | Multifunction steering wheel button group, signal | 4J |
| 6 | Multifunction steering wheel button group, signal | 29D |
| 6 | Multifunction steering wheel button group, signal | 6J |
| 6 | Multifunction steering wheel button group, signal | 8G |
| 6 | Multifunction steering wheel button group, signal | 11K |
| 6 | Multifunction steering wheel button group, signal | 11G |
| 7 | Audio/COMAND controller, request | 15H |
| 8 | Wheel speed, signal | 7E |
| 8 | Wheel speed, signal | 29E |
| 9 | Mute, signal | 26H |
| A1 | Instrument cluster | 12J |
| A2 | Radio | 14E |
| A2/52 | Emergency call system antenna | 32D |
| A28/11 | Multifunction antenna | 35F |
| A28/11 | Multifunction antenna | 20H |
| A40/3 | COMAND control unit | 16E |
| A40/8 | Audio/COMAND display | 16B |
| A40/9 | Audio/COMAND control panel | 15J |
| A67b1 | Hands-free system microphone | 14B |
| CAN A | Telematics CAN | 15H |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 23F |
| CAN D | Diagnostic CAN | 26A |
| CAN D | Diagnostic CAN | 20A |
| CAN D | Diagnostic CAN | 12A |
| CAN D | Diagnostic CAN | 27F |
| CAN E1 | Chassis CAN 1 | 7H |
| CAN E1 | Chassis CAN 1 | 23C |
| CAN E1 | Chassis CAN 1 | 6F |
| CAN E2 | Chassis CAN 2 | 9H |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 33F |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 12E |
| Code 522 | Audio 20 radio | 12E |
| Code 522 | Audio 20 radio | 19H |
| Code 531 | COMAND APS | 15E |
| Code 531 | COMAND APS | 19H |
| Code 810 | Sound system | 24J |
| Code 811 | Extended sound system | 24J |
| H4/27 | Center instrument panel speaker | 29J |
| LIN E1 | Steering LIN | 5J |
| LVDS | Low voltage differential signal | 17D |
| N10/1 | Front SAM control unit with fuse and relay module | 9D |
| N10/1 | Front SAM control unit with fuse and relay module | 26B |
| N112/2 | Telematics services communication module | 29F |
| N135 | Steering wheel electronics | 4K |
| N2/10 | Supplemental restraint system control unit | 21C |
| N30/4 | Electronic Stability Program control unit | 3C |
| N30/6 | Regenerative braking system control unit | 3D |
| N30/7 | Premium Electronic Stability Program control unit | 3C |
| N40/3 | Sound system amplifier control unit | 26J |
| N49 | Steering angle sensor | 2J |
| N73 | Electronic ignition switch control unit | 21E |
| N80 | Steering column module control unit | 7J |
| S111 | Right multifunction steering wheel button group | 4G |
| S111s3 | Accept/terminate phone call button | 4G |
| S93/3 | Emergency call system button | 31C |
| U203 | Valid without DISTRONIC PLUS | 2C |
| U909 | Valid for DISTRONIC PLUS | 2C |
| U968 | Valid for mild hybrid drive | 2D |
| U978 | Valid for full hybrid drive | 2D |
