Electrical function diagram for manual or automatic emergency call, function - PE82.95-P-2066-97DAC

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 347 (Ecall emergency call system, Europe) without CODE 348 (Emergency call/assistant system)

Code: Designation: Position:
1 Circuit 15, status 18E
10 Voice input, signal 15D
11 Operation, signal 17H
12 Voice output, signal 20C
13 Switch-on request, signal 24G
13 Switch-on request, signal 24K
2 Readiness, signal 7D
2 Readiness, signal 12F
3 Crash, signal 7D
3 Crash, signal 12F
4 Central locking emergency opening, signal 13F
5 Audio/COMAND display, message 16C
6 Multifunction steering wheel button group, signal 14H
6 Multifunction steering wheel button group, signal 3B
6 Multifunction steering wheel button group, signal 2E
6 Multifunction steering wheel button group, signal 6F
6 Multifunction steering wheel button group, signal 7J
7 Audio/COMAND controller, request 15H
8 Telephone, signal 18H
8 Telephone, signal 28G
8 Telephone, signal 37E
8 Telephone, signal 34G
8 Telephone, signal 22J
8 Telephone, signal 28K
9 Mute, signal 20C
A1 Instrument cluster 8J
A2/53 Mobile phone and stationary heater radio remote control antenna splitter 36G
A2/91 Bluetooth antenna 20H
A28/11 Multifunction antenna 36B
A28/3 Cellular telephone system antenna amplifier/compensator 31G
A34/1 Telephone module with Bluetooth® (SAP profile) 25K
A34/15 Mobile phone holder 25H
A40/3 COMAND control unit 16E
A40/8 Audio/COMAND display 16A
A40/9 Audio/COMAND control panel 15J
A67b1 Hands-free system microphone 13B
A8/7 Remote control 18J
CAN A Telematics CAN 15H
CAN B Interior CAN 10H
CAN B Interior CAN 11F
CAN B Interior CAN 20E
CAN E Chassis CAN 8D
CAN E1 Chassis CAN 1 5F
CAN E2 Chassis CAN 2 7H
Code 228 Stationary heater 35F
Code 379 Telephone module with Bluetooth SAP 24J
Code 386 Mobile phone preinstallation with universal interface 24B
Code 512 COMAND APS with DVD changer 14E
Code 527 COMAND APS (with navigation) 14E
Code 810 Sound system 18A
Code 811 Extended sound system 18A
Code 867 SPLITVIEW 17J
LIN E1 Steering LIN 3D
LVDS Low voltage differential signal 16D
MOST Media Oriented System Transport 19D
N10/1 Front SAM control unit with fuse and relay module 7E
N135 Steering wheel electronics 2B
N2/10 Supplemental restraint system control unit 10A
N40/3 Sound system amplifier control unit 20A
N73 Electronic ignition switch control unit 22E
N80 Steering column module control unit 3E
S110 Left multifunction steering wheel button group 4B
S111 Right multifunction steering wheel button group 6B
X237/1 Mobile phone contact plate 25G
X237/1 Mobile phone contact plate 25K

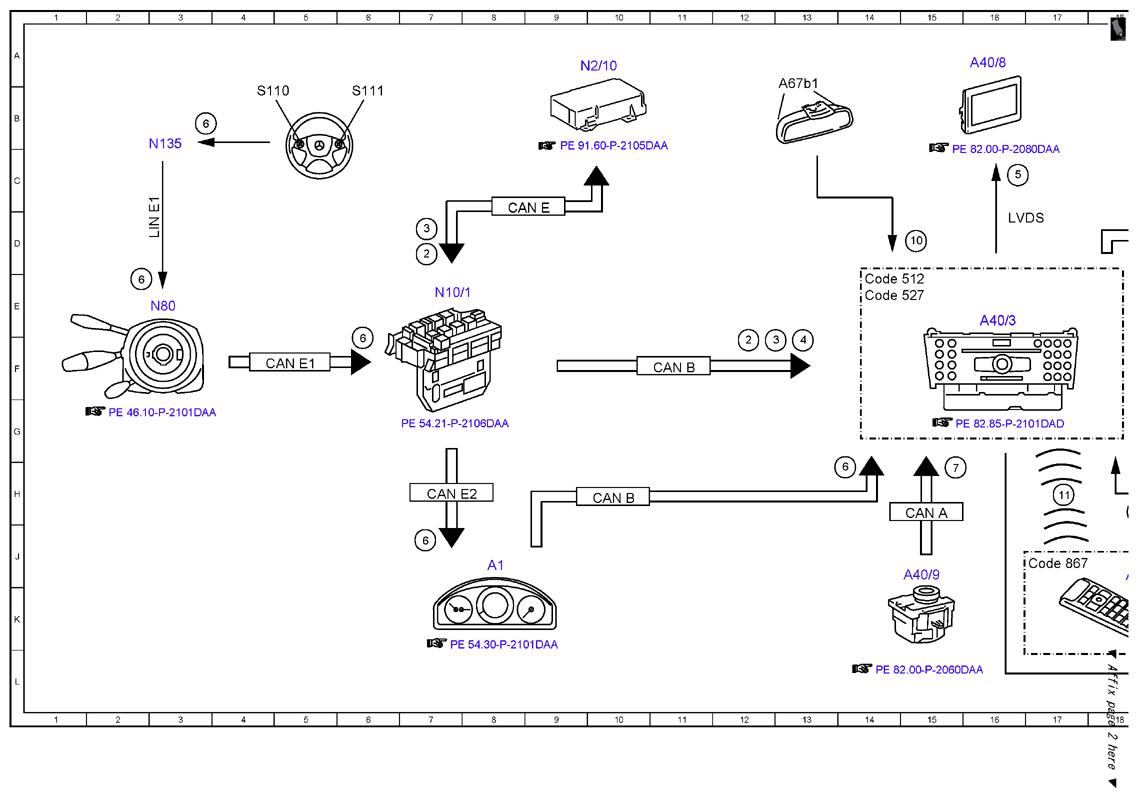

Fig 1: Manual/Automatic Emergency Call Electrical Function Diagram (1 Of 3)
G10055299Courtesy of MERCEDES-BENZ USA

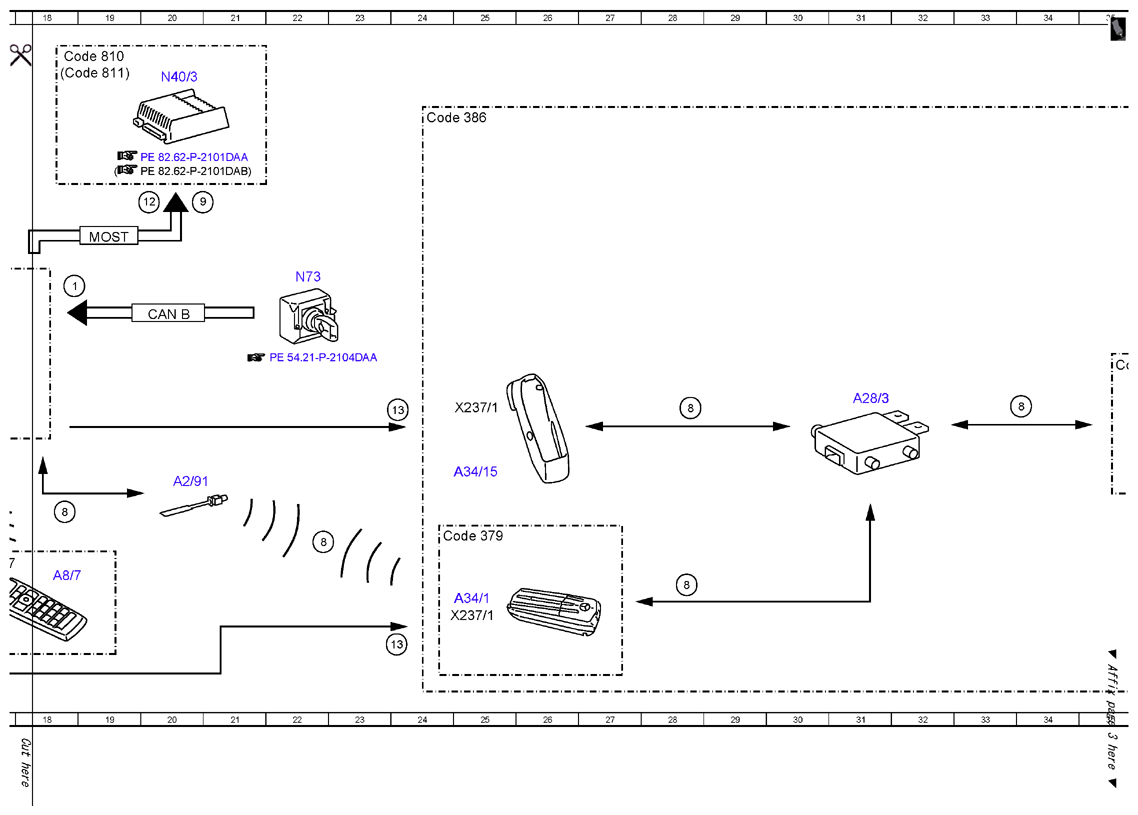

Fig 2: Manual/Automatic Emergency Call Electrical Function Diagram (2 Of 3)
G10055300Courtesy of MERCEDES-BENZ USA

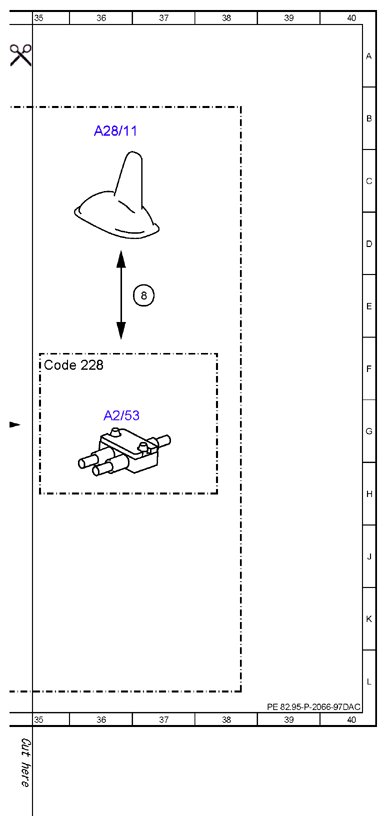

Fig 3: Manual/Automatic Emergency Call Electrical Function Diagram (3 Of 3)
G10055301Courtesy of MERCEDES-BENZ USA
