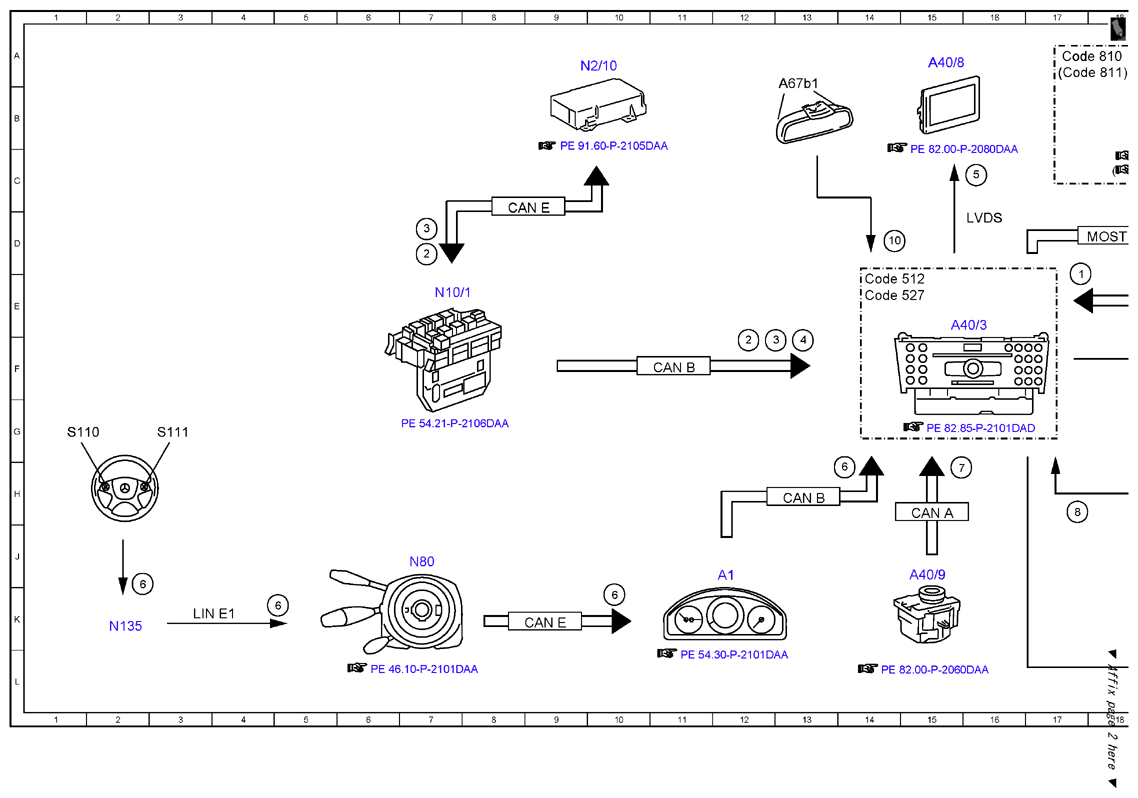

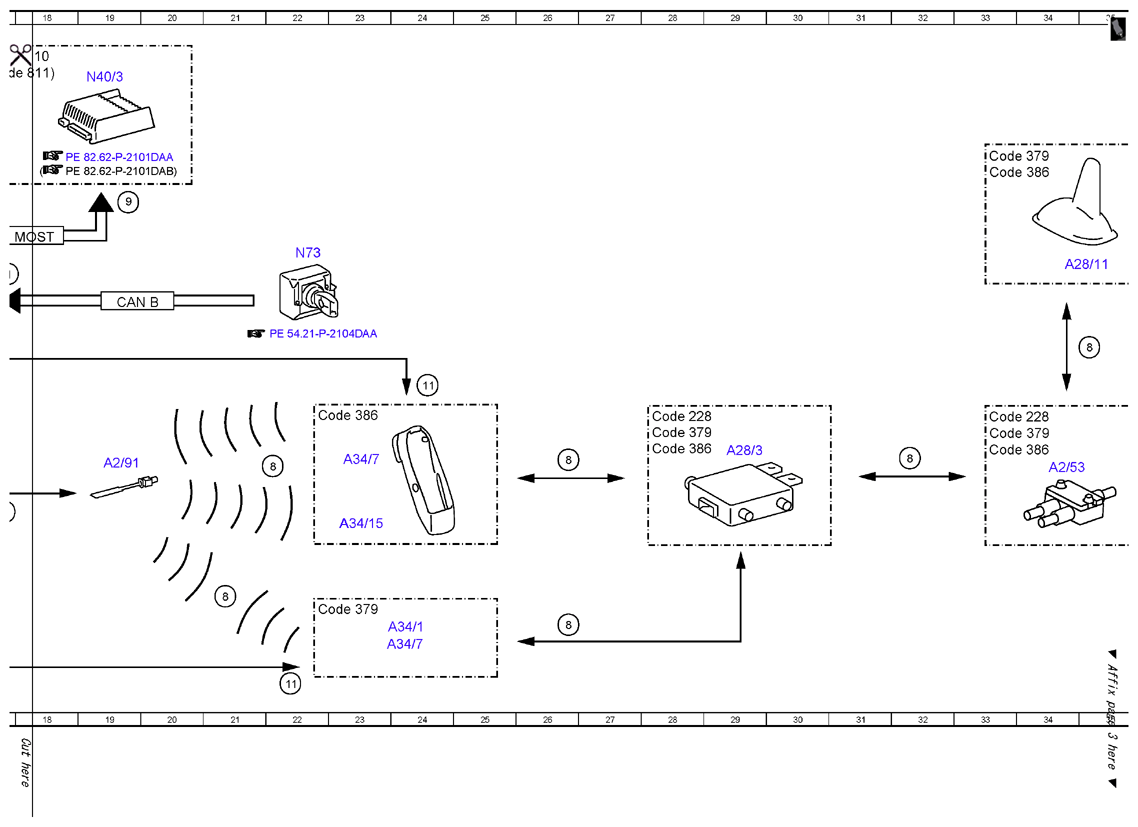

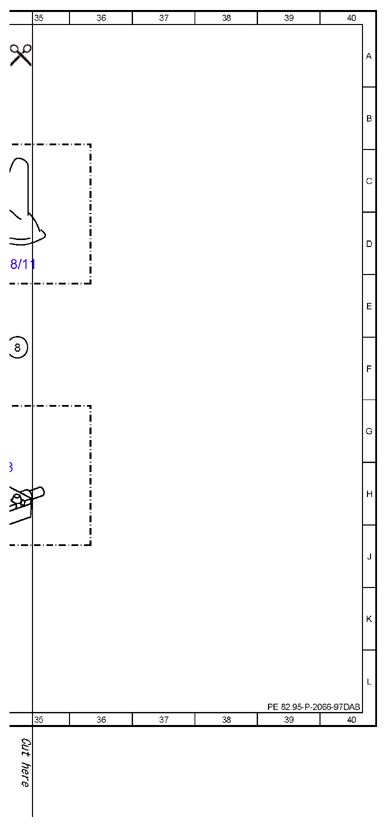

Electrical function diagram for manual or automatic emergency call, function - PE82.95-P-2066-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to model year 2014 with CODE 347 (Ecall emergency call system, Europe) without CODE 348 (Emergency call/assistant system) without CODE 359 (TELE AID emergency call system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17E |
| 10 | Voice input, signal | 14D |
| 11 | Switch-on request, signal | 22L |
| 11 | Switch-on request, signal | 24F |
| 2 | Readiness, signal | 7D |
| 2 | Readiness, signal | 12F |
| 3 | Crash, signal | 7D |
| 3 | Crash, signal | 12F |
| 4 | Central locking emergency opening, signal | 13F |
| 5 | Audio/COMAND display, message | 16C |
| 6 | Multifunction steering wheel button group, signal | 2K |
| 6 | Multifunction steering wheel button group, signal | 14H |
| 6 | Multifunction steering wheel button group, signal | 5K |
| 6 | Multifunction steering wheel button group, signal | 10K |
| 7 | Audio/COMAND controller, request | 15H |
| 8 | Telephone, signal | 17H |
| 8 | Telephone, signal | 22H |
| 8 | Telephone, signal | 26H |
| 8 | Telephone, signal | 35F |
| 8 | Telephone, signal | 32H |
| 8 | Telephone, signal | 21K |
| 8 | Telephone, signal | 26K |
| 9 | Mute, signal | 19C |
| A1 | Instrument cluster | 12J |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 34H |
| A2/91 | Bluetooth antenna | 19H |
| A28/11 | Multifunction antenna | 34D |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 29G |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 24K |
| A34/15 | Mobile phone holder | 23J |
| A34/7 | Bluetooth module | 23H |
| A34/7 | Bluetooth module | 24K |
| A40/3 | COMAND control unit | 15E |
| A40/8 | Audio/COMAND display | 15A |
| A40/9 | Audio/COMAND control panel | 15J |
| A67b1 | Hands-free system microphone | 13B |
| CAN A | Telematics CAN | 15H |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 19E |
| CAN E | Chassis CAN | 9K |
| CAN E | Chassis CAN | 8D |
| Code 228 | Stationary heater | 28G |
| Code 228 | Stationary heater | 33G |
| Code 379 | Telephone module with Bluetooth SAP | 33C |
| Code 379 | Telephone module with Bluetooth SAP | 28G |
| Code 379 | Telephone module with Bluetooth SAP | 22K |
| Code 379 | Telephone module with Bluetooth SAP | 33G |
| Code 386 | Mobile phone preinstallation with universal interface | 22G |
| Code 386 | Mobile phone preinstallation with universal interface | 33G |
| Code 386 | Mobile phone preinstallation with universal interface | 28G |
| Code 386 | Mobile phone preinstallation with universal interface | 33C |
| Code 512 | COMAND APS with DVD changer | 14E |
| Code 527 | COMAND APS (with navigation) | 14E |
| Code 810 | Sound system | 17A |
| Code 811 | Extended sound system | 17A |
| LIN E1 | Steering LIN | 3K |
| LVDS | Low voltage differential signal | 16D |
| MOST | Media Oriented System Transport | 18D |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N135 | Steering wheel electronics | 2K |
| N2/10 | Supplemental restraint system control unit | 10A |
| N40/3 | Sound system amplifier control unit | 19A |
| N73 | Electronic ignition switch control unit | 22D |
| N80 | Steering column module control unit | 7J |
| S110 | Left multifunction steering wheel button group | 1G |
| S111 | Right multifunction steering wheel button group | 3G |
