Remove/install coolant return line connection fitting on cylinder head - AR20.20-P-7468CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

MODIFICATION NOTES

20.1.15

Check sealing ring of the connection fitting for damage; added

Operation step 11

Fig 1: Coolant Return Line Connection On Cylinder Head Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

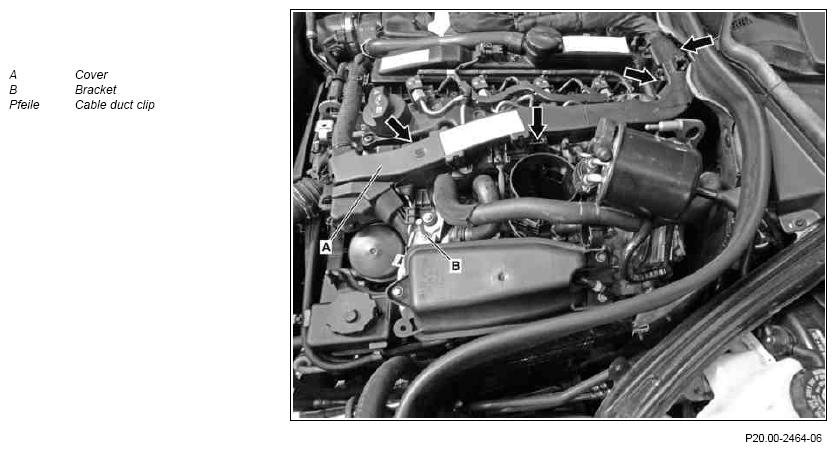

Fig 2: Coolant Return Line Connection On Cylinder Head Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

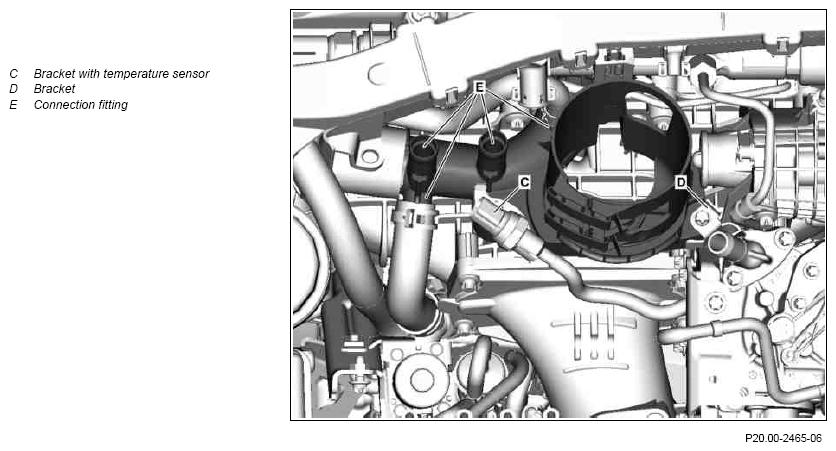

Fig 3: Coolant Return Line Connection On Cylinder Head Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

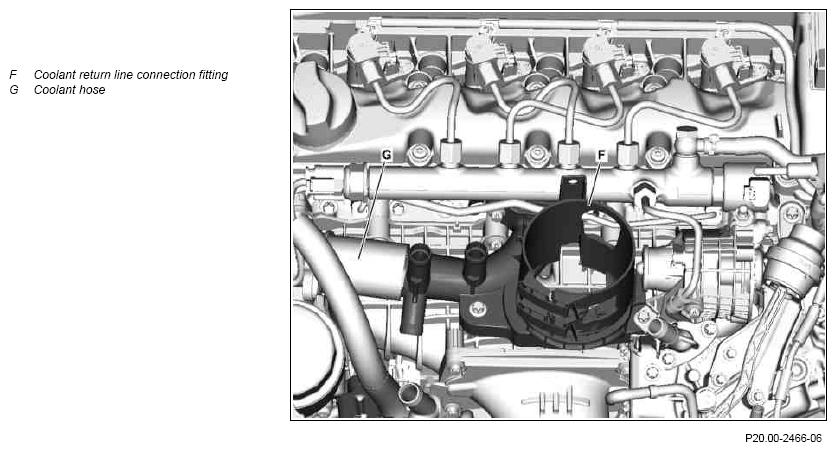

Fig 4: Coolant Return Line Connection On Cylinder Head Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting, Risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Remove/install
1	Drain off coolant	ENGINE 651 in MODEL 212 (except 212.098/298), 218, 221	AR20.00-P-1142OMA
		ENGINE 651.9 in MODEL 212.098/298	AR20.00-P-1142EH
		ENGINE 651 in MODEL 166	AR20.00-P-1142GQ
		ENGINE 651 in MODEL 172, 204, 207	AR20.00-P-1142CW
2	Remove exhaust gas recirculation cooler	ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221	AR14.20-P-7665CD
3.1	Disconnect fuel hose (1) on fuel filter (3)	For an installed venturi wiring harness (2) Replace Clic clamps. Leakages will occur when using threaded or spring bracket clamps. Do not use any sharp-edged or pointed tools to release the fuel hose (1). Damage will otherwise occur. Check fuel hose (1) for damage; replace if necessary.
3.2	Remove fuel filter (3) and place to one side	For non-installation of a venturi wiring harness (2) For non-installation of a venturi wiring harness (2) both fuel hoses are connected to the fuel filter (3).
4	Disconnect electrical connection at fuel filter condensation sensor (3) heating element
5	Unclip cable duct on the respective cable duct clip (arrows) and lift slightly
6	Remove cover (A) from holder (B)
7	Detach holder with temperature sensor (C) and place to one side
8	Detach bracket (D) for fuel lines
9	Detach coolant hoses at connection fittings (E) and remove	Hose clamp pliers	Figure
10	Detach coolant return line connection fitting (F) and pull out of coolant hose (G)	First tighten the front screw/bolt of the two-hole flange onto cylinder head and then tighten the rear screw/bolt of the two-hole flange onto cylinder head. The screw/bolts must then be tightened onto the charge air distributor for mounting. The use of lubricants and liquid sealants is not permitted.
		Bolt, water outlet to charge air distribution line	*BA20.10-P-1006-01X
		Bolt, water outlet to cylinder head	*BA20.10-P-1005-01X
		Hose clamp pliers	Figure
	Check
11	Check sealing ring of the coolant return line connection fitting (F) for damage	In a case of a damaged sealing ring: ↓ Replace coolant return line connection fitting (F). In a case of a damaged sealing ring the sealing ring must always be replaced together with the coolant return line connection fitting (F).
12	Install in the reverse order

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation		ENGINE 651
BA20.10-P-1005-01X	Bolt, water outlet to cylinder head	Nm	9

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation		ENGINE 651
BA20.10-P-1006-01X	Bolt, water outlet to charge air distribution line	Nm	9

Fig 5: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
