Remove/install blend air flap actuator motor - AR83.10-P-2026CWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212 except CODE (581) Comfort automatic air conditioning
Shown on model 204.0 up to 28.2.2011
| Remove/install | |||
| 1 | Remove cover below instrument panel (3) on left | Model 204.9, 212, when removing left blend air flap actuator motor (M2/6). | |
| 2 | Remove cover below instrument panel (3) on right | Model 204.9, 212, when removing right blend air flap actuator motor (M2/7). | AR68.10-P-1520CW |

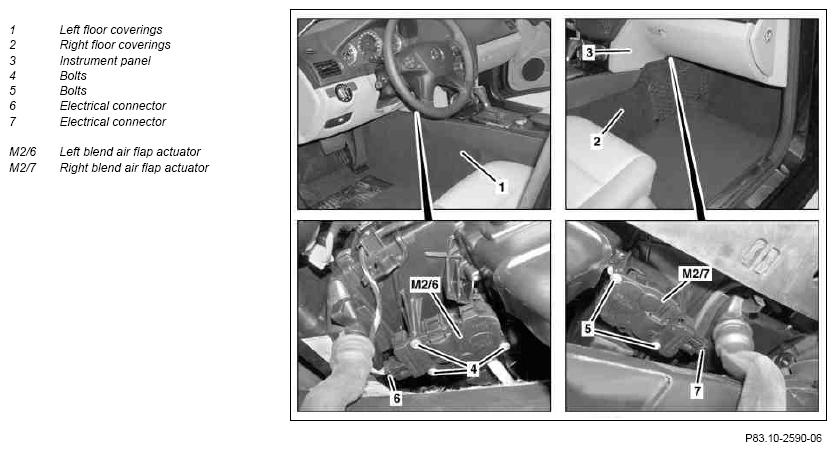

| 3 | Remove left floor covering (1) or right floor covering (2) far enough from instrument panel (3) so that left blend air flap actuator motor (M2/6) or right blend air flap actuator motor (M2/7) can be accessed and removed | ||
| 4 | Remove screws/bolts (4) | When removing the left blend air flap actuator motor (M2/6). | |
| Screwdriver insert for actuator motor | WF58.50-P-8320-01A | ||
| 5 | Remove bolts (5) | When removing the right blend air flap actuator motor (M2/7). | |
| Screwdriver insert for actuator motor | WF58.50-P-8320-01A | ||
| 6 | Detach electrical connector (6) and remove left blend air flap actuator motor (M2/6) | When removing the left blend air flap actuator motor (M2/6). | |
| 7 | Detach electrical connector (7) and remove right blend air flap actuator motor (M2/7) | When removing the right blend air flap actuator motor (M2/7). | |
| 8 | Install in the reverse order | ||
| 9 | Teach in and normalize the left blend air flap actuator motor (M2/6) or the right blend air flap actuator motor (M2/7) with Star Diagnosis | AD00.00-P-2000-04A |
