Remove/install blend air flap actuator motor - AR83.10-P-2026CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218 with CODE 581 (Comfort automatic air conditioning)

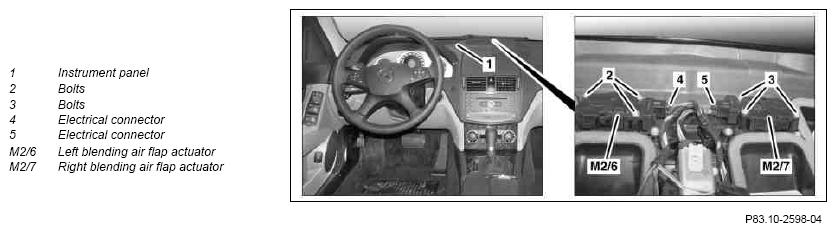

Shown on model 204.0
| Remove/install | |||
| 1 | Dashboard (1) removal | MODEL 218 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000EL |
| MODEL 207, 212 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000EW | ||
| MODEL 204.9 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000CY | ||
| MODEL 204.0/2/3 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000CW | ||
| 2 | Remove bolts (2) | ||
| 3 | Remove screws/bolts (3) | ||
| 4 | Disconnect electrical connector (4) and remove left blend air flap actuator motor (M2/6) | ||
| 5 | Disconnect electrical connector (5) and remove right blend air flap actuator motor (M2/7) | ||
| 6 | Install in the reverse order | ||
| 7 | Teach in and normalize left blend air flap actuator motor (M2/6) or right blend air flap actuator motor (M2/7) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
