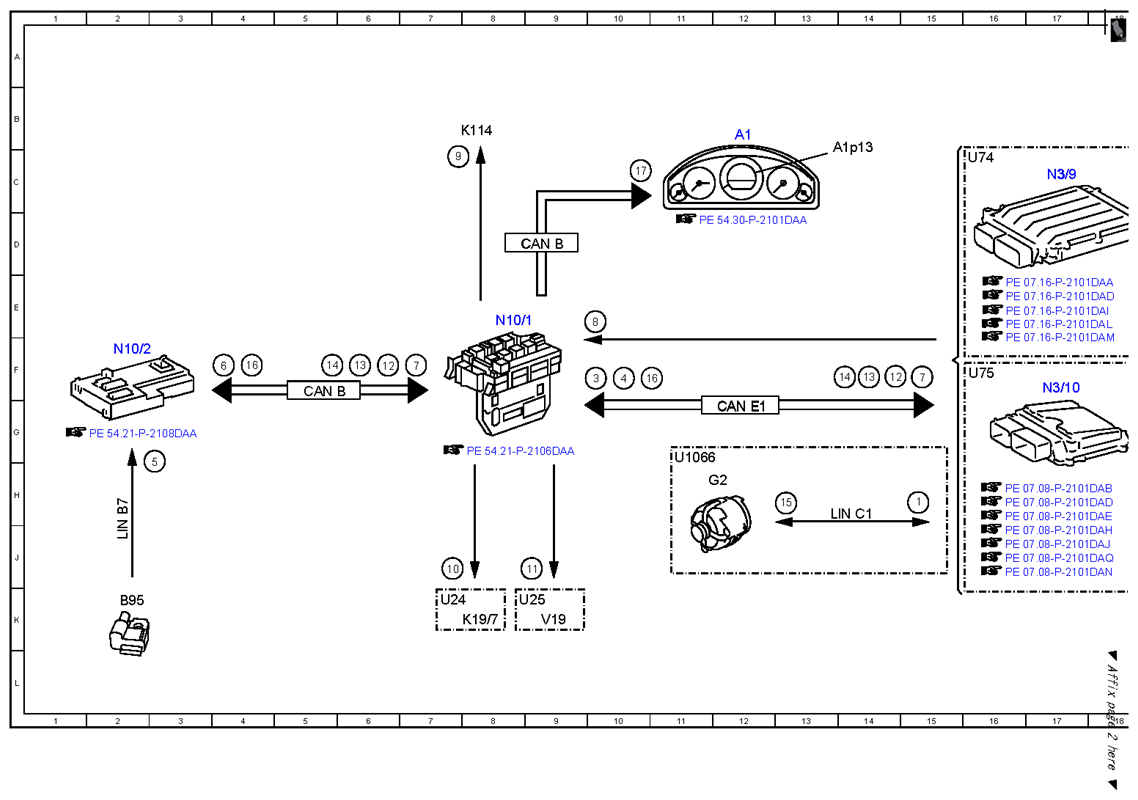

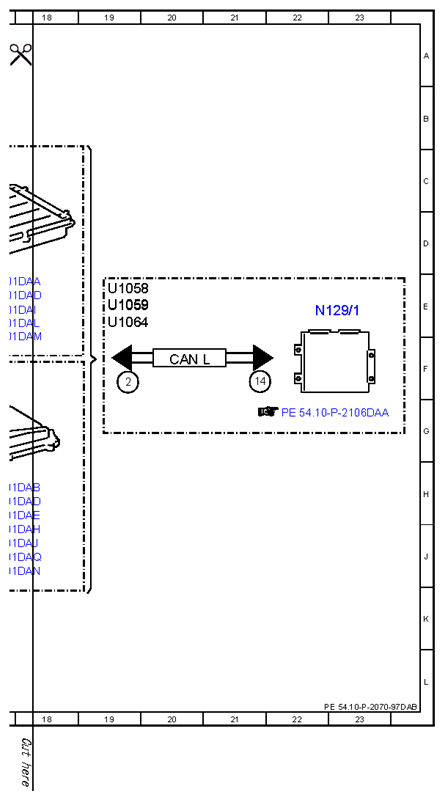

Electrical function schematic for energy management for engine start/stop - PE54.10-P-2070-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, signal | 15H |
| 10 | Decoupling relay, actuation | 7J |
| 11 | ECO start/stop function diode, actuation | 9J |
| 12 | Engine start, request | 14F |
| 12 | Engine start, request | 6F |
| 13 | Specified alternator voltage, signal | 6F |
| 13 | Specified alternator voltage, signal | 14F |
| 14 | Charging voltage and charging current, request | 14F |
| 14 | Charging voltage and charging current, request | 5F |
| 14 | Charging voltage and charging current, request | 21F |
| 15 | Alternator, actuation | 13H |
| 16 | Alternator operating rate, signal | 4F |
| 16 | Alternator operating rate, signal | 10F |
| 17 | Instrument cluster message, request | 10C |
| 2 | Charging voltage and charging current, signal | 19F |
| 3 | Engine running, signal | 10F |
| 4 | Drivetrain operational, signal | 10F |
| 5 | Battery sensor, signal | 3H |
| 6 | ECO start/stop function button additional battery, status | 4F |
| 7 | On-board electrical system energy state, signal | 7F |
| 7 | On-board electrical system energy state, signal | 15F |
| 8 | Hot start, signal | 10E |
| 9 | ECO start/stop function additional battery relay, actuation | 7C |
| A1 | Instrument cluster | 12B |
| A1p13 | Multifunction display | 14C |
| B95 | Battery sensor | 2K |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 9D |
| CAN E1 | Chassis CAN 1 | 12G |
| CAN L | Hybrid CAN | 20F |
| G2 | Alternator | 12H |
| K114 | ECO start/stop function additional battery relay | 7B |
| K19/7 | Decoupling relay | 8K |
| LIN B7 | On-board electrical system LIN | 2H |
| LIN C1 | Drive train LIN | 14H |
| N10/1 | Front SAM control unit with fuse and relay module | 8E |
| N10/2 | Rear SAM control unit with fuse and relay module | 2F |
| N129/1 | Power electronics control unit | 22E |
| N3/10 | ME-SFI [ME] control unit | 17F |
| N3/9 | CDI control unit | 17C |
| U1058 | Valid for model 212.095 | 19E |
| U1059 | Valid for model 212.098 | 19E |
| U1064 | Valid for model 212.298 | 19E |
| U1066 | Not valid for model 212.095 | 11G |
| U24 | Valid for manual transmission | 7K |
| U25 | Valid for automatic transmission | 8K |
| U74 | Valid for diesel engines | 16C |
| U75 | Valid for gasoline engines | 16F |
| V19 | ECO start/stop function diode | 9K |
