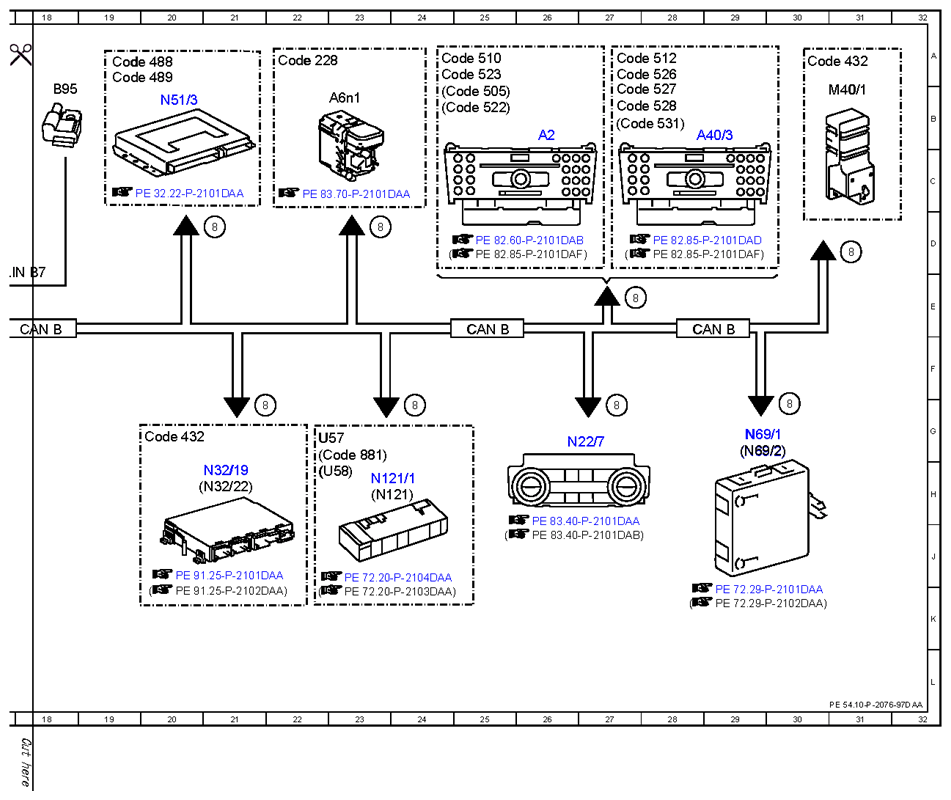

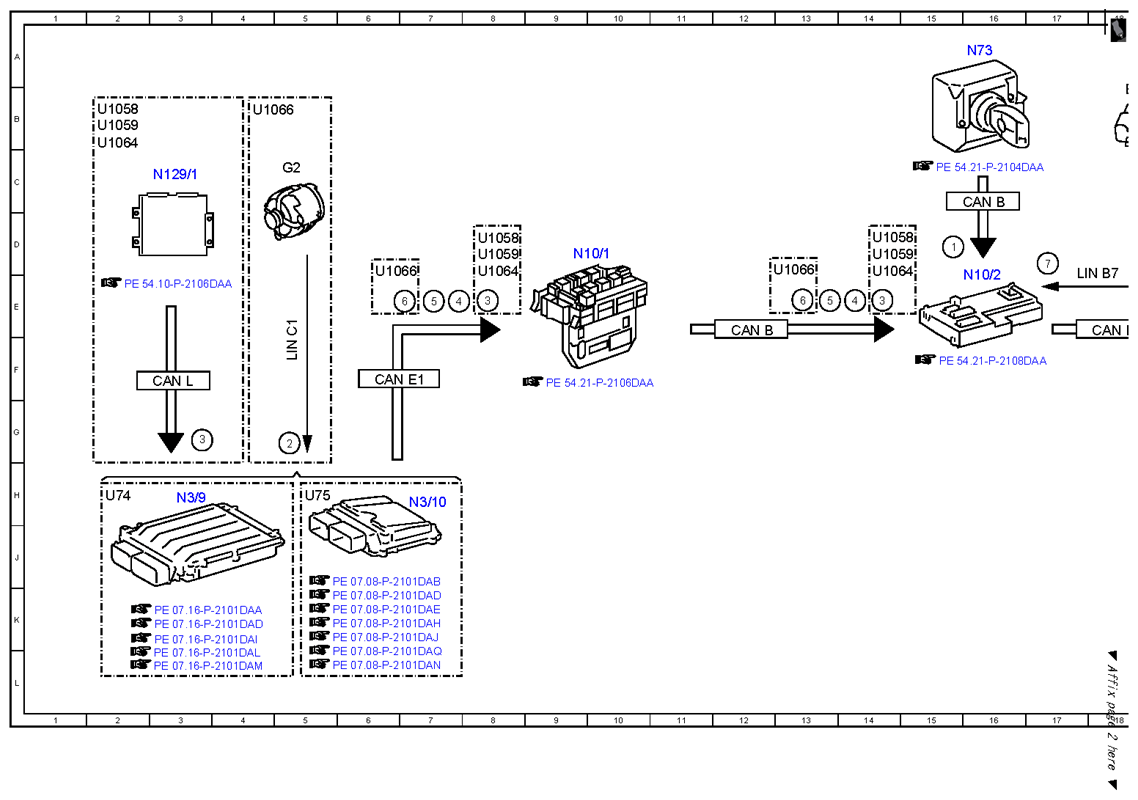

Electrical function schematic for comfort function shutoff - PE54.10-P-2076-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15D |
| 2 | Alternator, signal | 5G |
| 3 | Charging voltage and charging current, signal | 3G |
| 3 | Charging voltage and charging current, signal | 8E |
| 3 | Charging voltage and charging current, signal | 14E |
| 4 | Engine running, signal | 7E |
| 4 | Engine running, signal | 14E |
| 5 | Drivetrain operational, signal | 13E |
| 5 | Drivetrain operational, signal | 7E |
| 6 | Alternator operating rate, signal | 7E |
| 6 | Alternator operating rate, signal | 13E |
| 7 | Battery sensor, signal | 17D |
| 8 | Consumer shutoff, request | 27E |
| 8 | Consumer shutoff, request | 23D |
| 8 | Consumer shutoff, request | 27G |
| 8 | Consumer shutoff, request | 30G |
| 8 | Consumer shutoff, request | 24G |
| 8 | Consumer shutoff, request | 21G |
| 8 | Consumer shutoff, request | 31D |
| 8 | Consumer shutoff, request | 21D |
| A2 | Radio | 26B |
| A40/3 | COMAND control unit | 28B |
| A6n1 | Stationary heater control unit | 23B |
| B95 | Battery sensor | 18B |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 25E |
| CAN B | Interior CAN | 16C |
| CAN B | Interior CAN | 29E |
| CAN B | Interior CAN | 18E |
| CAN E1 | Chassis CAN 1 | 6F |
| CAN L | Hybrid CAN | 3F |
| Code 228 | Stationary heater | 22A |
| Code 432 | Left and right front dynamic multicontour seats | 20G |
| Code 432 | Left and right front dynamic multicontour seats | 30A |
| Code 488 | Steel/air suspension | 19A |
| Code 489 | AIRMATIC (air suspension with continuously adjustable damping) | 19A |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 24B |
| Code 510 | Audio 20 with CD changer | 24A |
| Code 512 | COMAND APS with DVD changer | 27A |
| Code 522 | Audio 20 radio | 24B |
| Code 523 | Audio 20 radio | 24A |
| Code 526 | COMAND with single DVD drive (without navigation) | 27A |
| Code 527 | COMAND APS (with navigation) | 27B |
| Code 528 | COMAND with DVD changer | 27B |
| Code 531 | COMAND APS | 27B |
| Code 881 | Trunk lid control | 22G |
| G2 | Alternator | 5C |
| LIN B7 | On-board electrical system LIN | 17E |
| LIN C1 | Drive train LIN | 5F |
| M40/1 | Dynamic multicontour seat pneumatic pump | 31B |
| N10/1 | Front SAM control unit with fuse and relay module | 9D |
| N10/2 | Rear SAM control unit with fuse and relay module | 16E |
| N121 | Trunk lid control unit | 23H |
| N121/1 | Tailgate control unit | 23H |
| N129/1 | Power electronics control unit | 3C |
| N22/7 | Automatic air conditioning control and operating unit | 26G |
| N3/10 | ME-SFI [ME] control unit | 7H |
| N3/9 | CDI control unit | 3H |
| N32/19 | Left front dynamic multicontour seat control unit | 21H |
| N32/22 | Right front dynamic multicontour seat control unit | 21H |
| N51/3 | AIRMATIC control unit | 20B |
| N69/1 | Left front door control unit | 29G |
| N69/2 | Right front door control unit | 29G |
| N73 | Electronic ignition switch control unit | 16A |
| U1058 | Valid for model 212.095 | 2B |
| U1058 | Valid for model 212.095 | 8D |
| U1058 | Valid for model 212.095 | 14D |
| U1059 | Valid for model 212.098 | 2B |
| U1059 | Valid for model 212.098 | 8D |
| U1059 | Valid for model 212.098 | 14D |
| U1064 | Valid for model 212.298 | 2B |
| U1064 | Valid for model 212.298 | 8E |
| U1064 | Valid for model 212.298 | 14E |
| U1066 | Not valid for model 212.095 | 4B |
| U1066 | Not valid for model 212.095 | 6E |
| U1066 | Not valid for model 212.095 | 12D |
| U57 | Valid for model 212.2 | 22G |
| U58 | Valid for model 212.0/1 | 22H |
| U74 | Valid for diesel engines | 2H |
| U75 | Valid for gasoline engines | 5H |
