Remove/install front engine mounts and/or engine support - AR22.10-P-1260OGE

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207

ENGINES 642 in MODEL 212, 218 except 4MATIC

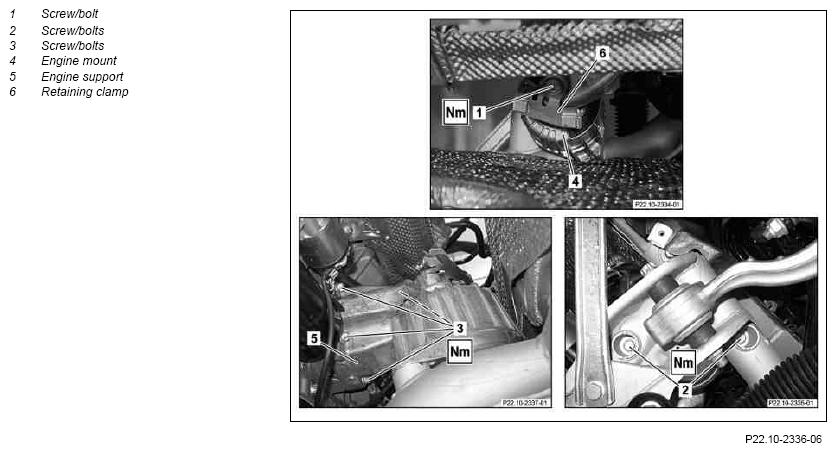

Fig 1: Front Engine Mount And Support Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

27.9.11	Value changed: Screw/bolt, front engine mount to engine support	Model 207 except 4	*BA22.10-P-1001-03E
	Value changed: Screw/bolt, front engine mount to engine support	Model 207 except 4	*BA22.10-P-1001-03E

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove engine trim panel	Ensure correct seating of the engine cover.
2	Remove air filter housing		AR09.10-P-1150SXI
3	Remove bolt (1) on engine mount (4) from above	When removing the right engine mount (4) the retaining clamp (6) for the oxygen sensor cable must be removed at the same time.
			*BA22.10-P-1001-03E
		Set of engine mount wrenches	Figure
4	Attach engine hoist and raise engine	Model 207	AR33.10-P-0105CW
4	Attach engine hoist and raise engine	Model 212, 218	AR33.10-P-0105EW
5	Remove bottom sections of soundproofing	Remove center and rear soundproofing bottom section.	AR94.30-P-5300EW
6	Remove diesel particulate filter	Only for removal of the right engine mount (4) or the engine support (5).	AR14.40-P-1000OGE
7	Remove screw/bolts (2) for engine mount (4)		*BA22.10-P-1002-03E
8	Take out engine mount (4)	Always replace engine mount (4) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (4). Dispose engine mounts (4) into mixed scrap. The anti-twist locks for engine mounts (4) must fit in the recess clearances of engine supports (5).
9	Detach ground line from battery	Only when removing the right engine support (5).	AR54.10-P-0003EW
10	Detach electrical line circuit 30 on alternator	Only when removing the right engine support (5).
10	Detach electrical line circuit 30 on alternator		*BA15.40-P-1002-01D
11	Remove screw/bolts (3) and take out engine support (5)		*BA22.10-P-1001-02A
12	Install in the reverse order

ALTERNATOR

Number	Designation		Engine 642
BA15.40-P-1002-01D	Nut, circuit B+ to alternator	Nm	15

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Engine 642
BA22.10-P-1001-02A	Screw/bolt, engine support to cylinder crankcase	Stage 1	Nm	20
BA22.10-P-1001-02A	Screw/bolt, engine support to cylinder crankcase	Stage 2	∠°	90

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 207 except 4MATIC	Model 207 4	Model 212 except 4MATIC
BA22.10-P-1001-03E	Screw/bolt connecting front engine mount to engine support	M10		Nm	50	50	50
		M12	Stage 1	Nm	85	85	85
		M12	Stage 2	∠°	90	90	90
BA22.10-P-1002-03E	Screw/bolt, front engine mount to front axle carrier			Nm	28	28	28

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 218 except 4MATIC
BA22.10-P-1001-03E	Screw/bolt connecting front engine mount to engine support	M10		Nm	50
		M12	Stage 1	Nm	85
		M12	Stage 2	∠°	90
BA22.10-P-1002-03E	Screw/bolt, front engine mount to front axle carrier			Nm	28

Fig 2: Identifying Set Of Engine Bearing Wrenches (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA
