Remove/install front engine mount and/or engine support - AR22.10-P-1260OMA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 204 (except 204.9), 207, 218, 221

ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)

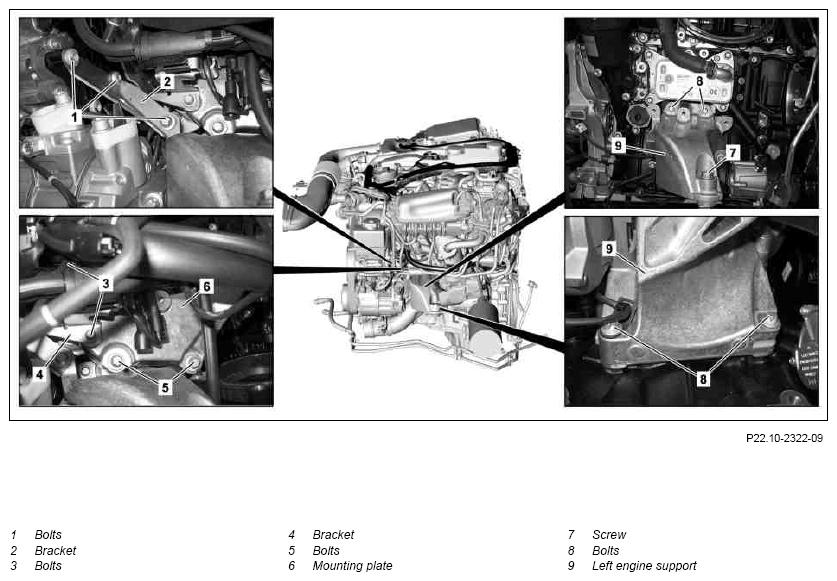

Fig 1: Front Engine Mount And Support Remove/Install Components (1 Of 4)
G09975439Courtesy of MERCEDES-BENZ USA

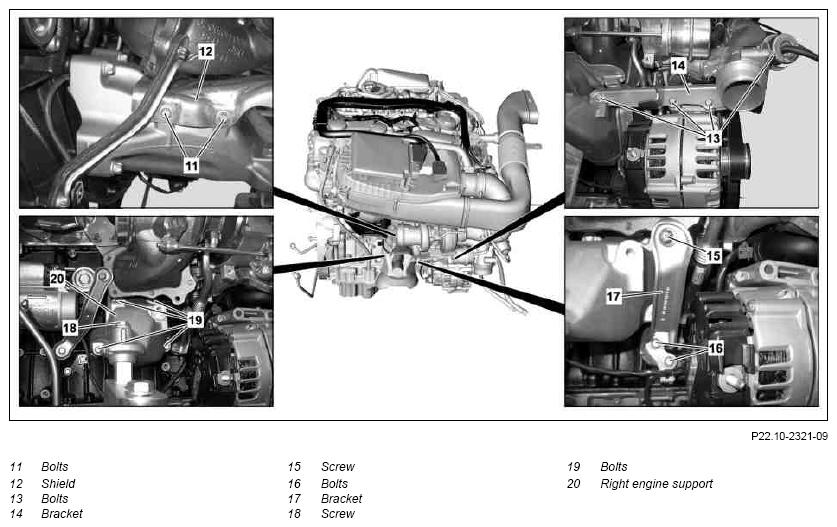

Fig 2: Front Engine Mount And Support Remove/Install Components (2 Of 4)
G09975440Courtesy of MERCEDES-BENZ USA

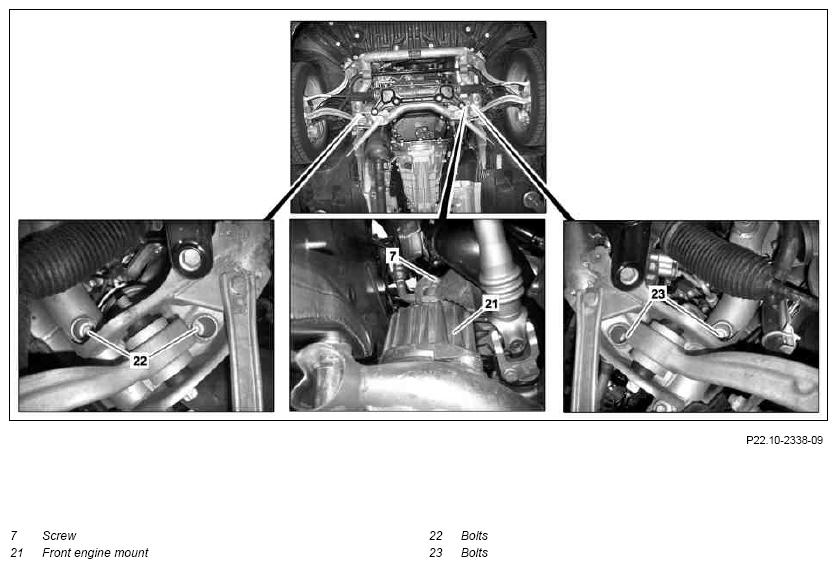

Fig 3: Front Engine Mount And Support Remove/Install Components (3 Of 4)
G09975441Courtesy of MERCEDES-BENZ USA

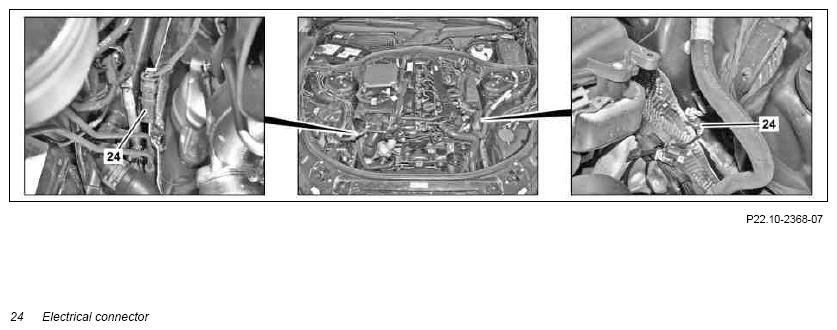

Fig 4: Front Engine Mount And Support Remove/Install Components (4 Of 4)
G09975442Courtesy of MERCEDES-BENZ USA

Vehicles with a switchable engine mount at the front

REMOVING Remove
1 Secure vehicle on vehicle lift ENGINE 651 in MODEL 204 (except 204.9), 207 AR00.60-P-0100CW
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)
ENGINE 651 in MODEL 218		 AR00.60-P-0100EWS
MODEL 221.0/1 with ENGINE 651 AR00.60-P-0100SX
2 Remove cylinder head cover trim
3 Put on engine hoist ENGINE 651 in MODEL 204 (except 204.9), 207 AR33.10-P-0105CW
MODEL 212 with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 218 with ENGINE 651		 AR33.10-P-0105EW
ENGINE 651 in MODEL 221 AR33.10-P-0105SX
4.1 Remove bottom sections of soundproofing ENGINE 651 in MODEL 204 (except 204.9), 207, 218
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)
AR94.30-P-5300EW
4.2 Remove lower engine compartment paneling ENGINE 651 in MODEL 221
AR61.20-P-1105SX
  Remove/install engine mount (21) at the front
5 Remove catalytic converter diesel particulate filter unit ENGINE 651 in MODEL 204 (except 204.9), 207, 218, 221
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)
Only for removal of the right engine mount (21) at the front.
ENGINE 651 in MODEL 204 (except 204.9), 207, 218
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)		 AR49.10-P-5501CD
ENGINE 651 in MODEL 221 AR49.10-P-5501SXI
6 Disconnect electrical connections (24) and expose electrical lines For vehicles with front switchable engine mounts (21)
7 Remove screw/bolts (22, 23) TORQUE SPECIFICATION
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 722.96
MODEL 207 with ENGINE 651 with TRANSMISSION 711
MODEL 207 with ENGINE 651 with TRANSMISSION 716
MODEL 207 with ENGINE 651 with TRANSMISSION 722.646/908
MODEL 212 with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 218 with ENGINE 651 with TRANSMISSION 722.908		 *BA22.10-P-1002-03E
TORQUE SPECIFICATION
ENGINE 651 in MODEL 221		 *BA22.10-P-1002-03D
8 Remove screw/bolts (7, 18) TORQUE SPECIFICATION
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 722.96
MODEL 207 with ENGINE 651 with TRANSMISSION 711
MODEL 207 with ENGINE 651 with TRANSMISSION 716
MODEL 207 with ENGINE 651 with TRANSMISSION 722.646/908
MODEL 212 with ENGINE 651 with TRANSMISSION 711
MODEL 212 with ENGINE 651 with TRANSMISSION 716
MODEL 212 with ENGINE 651 with TRANSMISSION 722 (except 722.96)
MODEL 218 with ENGINE 651 with TRANSMISSION 722.908		 *BA22.10-P-1001-03E
TORQUE SPECIFICATION
ENGINE 651 in MODEL 221		 *BA22.10-P-1002-03D
9 Carefully lift engine with lifting device until the front engine mount (21) can be removed
10 Take out engine mount (21) INSTALLATION IMPORTANT In the case of damage, always replace engine mount (21) in pairs.
11 Installation of the front engine mount (21) in reverse order
  Remove/install left engine support (9)
12 Remove mixing chamber   AR09.20-P-1320CD
13 Undo screw/bolts (1) and remove bracket (2) ENGINE 651 in MODEL 204 (except 204.9), 207
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)
TORQUE SPECIFICATION
ENGINE 651 in MODEL 204 (except 204.9), 207		 *BA46.30-P-1011-01R
TORQUE SPECIFICATION
ENGINE 651 in MODEL 204 (except 204.9), 207		 *BA46.30-P-1012-01R
TORQUE SPECIFICATION
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)		 *BA46.30-P-1009-01T
TORQUE SPECIFICATION
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)		 *BA46.30-P-1010-01T
14 Remove screw/bolts (3); place bracket (4) with electrical lines to one side TORQUE SPECIFICATION Bolt, bracket for electric switchover valves to fastening plate *BA09.41-P-1006-01N
15 Remove screw/bolts (5) and remove mounting plate (6) TORQUE SPECIFICATION Charge air manifold fastening plate bolt on engine support *BA09.41-P-1005-01N
16 Remove refrigerant compactor and lay down to the side with connected refrigerant lines   AR83.55-P-5300CD
IMPORTANT Secure A/C compactor to prevent it from falling down.
17 Remove screw/bolt (7) from above TORQUE SPECIFICATION
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 722.96
MODEL 207 with ENGINE 651 with TRANSMISSION 711
MODEL 207 with ENGINE 651 with TRANSMISSION 716
MODEL 207 with ENGINE 651 with TRANSMISSION 722.646/908
MODEL 212 with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 218 with ENGINE 651 with TRANSMISSION 722.908		 *BA22.10-P-1001-03E
TORQUE SPECIFICATION
MODEL 221.003/103		 *BA22.10-P-1002-03D
18 Carefully lift engine with an engine hoist.
19 Remove screw/bolts (8) and remove left engine support (9) TORQUE SPECIFICATION Bolt, engine support to crankcase *BA22.10-P-1001-02A
20 Installation of the left engine support (9) in reverse order
  Remove/install engine support on the right (20)
21 Remove screw/bolts (11) and shield (12) TORQUE SPECIFICATION Bolt, heat shield to engine support *BA22.10-P-1003-02A
22 Remove screw/bolts (13) and bracket (14) TORQUE SPECIFICATION Bolt, turbocharger bracket to engine support/major assembly carrier *BA09.40-P-1008-01P
TORQUE SPECIFICATION Bolt, alternator to major assembly carrier *BA15.40-P-1004-01Q
23 Remove screw/bolts (15, 16) and bracket (17) TORQUE SPECIFICATION Bolt, rear/center turbocharger bracket to turbocharger *BA09.40-P-1002-01P
TORQUE SPECIFICATION Bolt, rear/center turbocharger bracket to cylinder crankcase *BA09.40-P-1003-01P
24 Remove screw/bolt (18) from above TORQUE SPECIFICATION
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 722.96
MODEL 207 with ENGINE 651 with TRANSMISSION 711
MODEL 207 with ENGINE 651 with TRANSMISSION 716
MODEL 207 with ENGINE 651 with TRANSMISSION 722.646/908
MODEL 212 with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 218 with ENGINE 651 with TRANSMISSION 722.908		 *BA22.10-P-1001-03E
TORQUE SPECIFICATION
MODEL 221 with ENGINE 651		 *BA22.10-P-1002-03D
25 Carefully lift engine with an engine hoist.
26 Remove screw/bolts (19) and remove right engine support (20)
27 Installation of the right engine support (20) in reverse order
INSTALLING Install
28.1 Install bottom sections of soundproofing ENGINE 651 in MODEL 204 (except 204.9), 207, 218
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)
AR94.30-P-5300EW
28.2 Install lower engine compartment paneling ENGINE 651 in MODEL 221
AR61.20-P-1105SX
29 Remove engine hoist ENGINE 651 in MODEL 204 (except 204.9), 207 AR33.10-P-0105CW
MODEL 212 with ENGINE 651 with TRANSMISSION 711, 716, 722 (except 722.96)
MODEL 218 with ENGINE 651		 AR33.10-P-0105EW
ENGINE 651 in MODEL 221 AR33.10-P-0105SX
30 Install cylinder head cover trim
31 Remove lifting platform securing devices ENGINE 651 in MODEL 204 (except 204.9), 207 AR00.60-P-0100CW
ENGINE 651 in MODEL 212 with TRANSMISSION 711, 716, 722 (except 722.96)
ENGINE 651 in MODEL 218		 AR00.60-P-0100EWS
MODEL 221.0/1 with ENGINE 651 AR00.60-P-0100SX
TURBOCHARGER

Number Designation MOTOR 651
BA09.40-P-1002-01P Bolt, rear/center turbocharger bracket to turbocharger Nm 20
TURBOCHARGER

Number Designation MOTOR 651
BA09.40-P-1003-01P Bolt, rear/center turbocharger bracket to cylinder crankcase Nm 20
TURBOCHARGER

Number Designation MOTOR 651
BA09.40-P-1008-01P Bolt, turbocharger bracket to engine support/major assembly carrier M8 Nm 20
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 651
BA09.41-P-1005-01N Charge air manifold fastening plate bolt on engine support Nm 20
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 651
BA09.41-P-1006-01N Bolt, bracket for electric switchover valves to fastening plate Nm 9
ALTERNATOR

Number Designation ENGINE 651
BA15.40-P-1004-01Q Bolt, alternator to major assembly carrier Nm 20
ENGINE SUPPORT (ENGINE SIDE)

Number Designation ENGINE 651
BA22.10-P-1001-02A Bolt, engine support to crankcase Stage 1 Nm 20
Stage 2 ∠° 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 204 MODEL 207
BA22.10-P-1001-03E Bolt, front engine mount to engine support M10 Nm 50 50
M12 Stage 1 Nm - 85
Stage 2 ∠° - 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 212 MODEL 218
BA22.10-P-1001-03E Bolt, front engine mount to engine support M10 Nm 50 50
M12 Stage 1 Nm 85 85
Stage 2 ∠° 90 90
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Model 221.003/103
BA22.10-P-1002-03D Bolt, front engine mount to engine support M10 Nm 50
M12 Stage 1 Nm -
Stage 2 ∠° -
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 204 MODEL 207
BA22.10-P-1002-03E Bolt, front engine mount to front axle carrier M8 Nm 28 28
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 212 MODEL 218
BA22.10-P-1002-03E Bolt, front engine mount to front axle carrier M8 Nm 28 28
ENGINE SUPPORT (ENGINE SIDE)

Number Designation ENGINE 651
BA22.10-P-1003-02A Bolt, heat shield to engine support Nm 9
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1009-01T Bolt, power steering pump bracket to power steering pump Nm 14
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1010-01T Screw/bolt, power steering pump bracket to engine support/cylinder crankcase Nm 20
POWER STEERING PUMP

Number Designation MODEL 204 with ENGINE 651 MODEL 207
BA46.30-P-1011-01R Bolt, power steering pump bracket to engine support Nm 20 20
POWER STEERING PUMP

Number Designation MODEL 204 with ENGINE 651 MODEL 207
BA46.30-P-1012-01R Bolt, power steering pump bracket to power steering pump Nm 14 14
